Chapter 8 Wire and Configure the 1753-IB16XOB8 Module

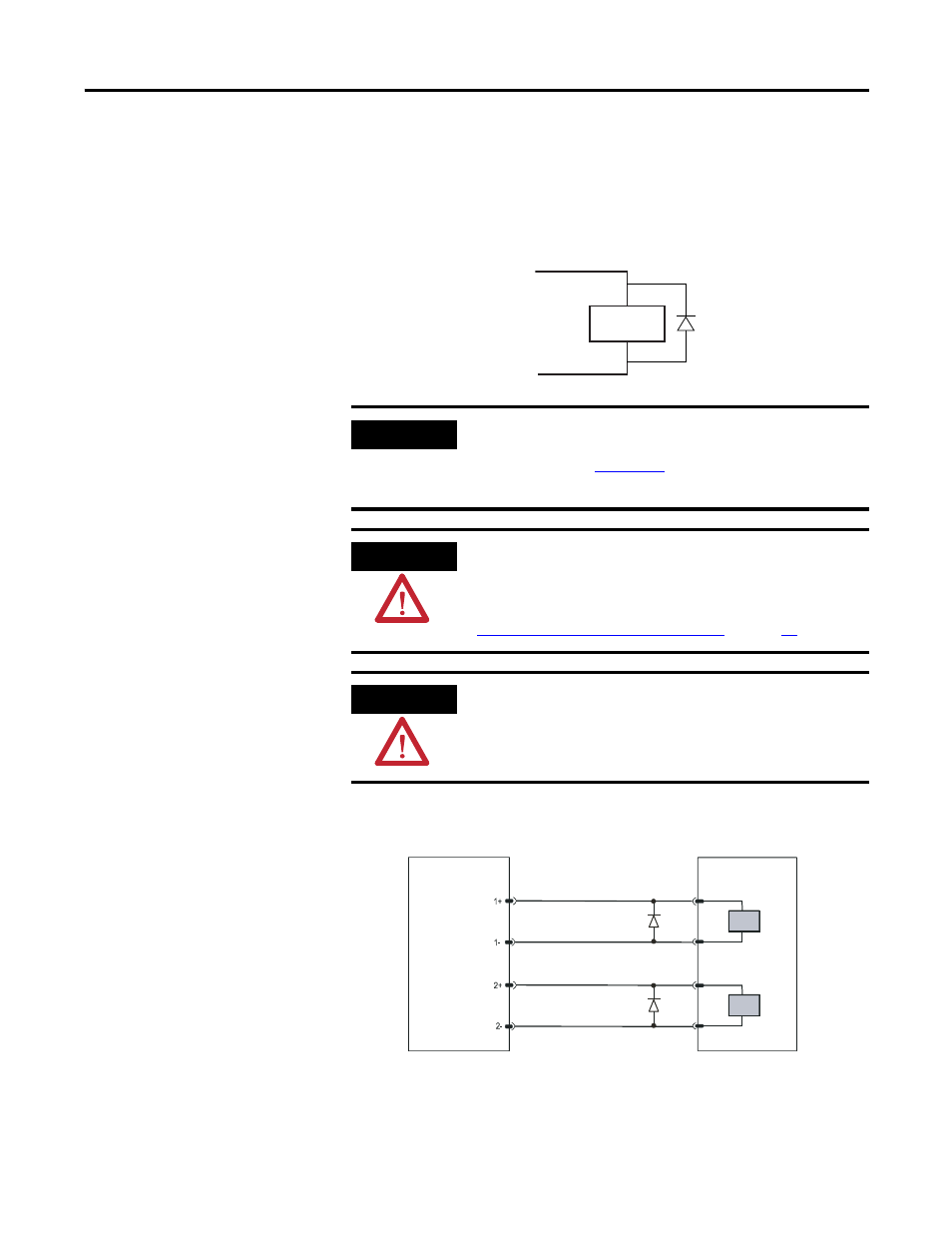

2-Pole Connection
If the outputs are configured for 2-pole operation, 8 outputs are
available. Each of the 8 outputs switch both L+ and L-. 2-pole outputs
(without line monitoring) are wired to both the positive-switch and
negative-switch of a single channel, 2+ and 2- for example.
IMPORTANT
The corresponding channels for 2-pole connections must be
configured for 2-pole operation by using the system variable
DO[xx].2-pole. See
Appendix B for more information on system
variables.
ATTENTION
The positive-switching output must be wired to an output along
with the corresponding negative-switching output of the same
channel. Negative- or positive-switching outputs must not span
different channels unless they are connected in pairs (see
3-pole Connection With Line Monitoring on page 89 ).
ATTENTION
Inductive loads must be connected with a protection diode on
the load in 2-pole operation.
2+
2-
2-pole Configuration
1753-IB16XOB8 Actuator
