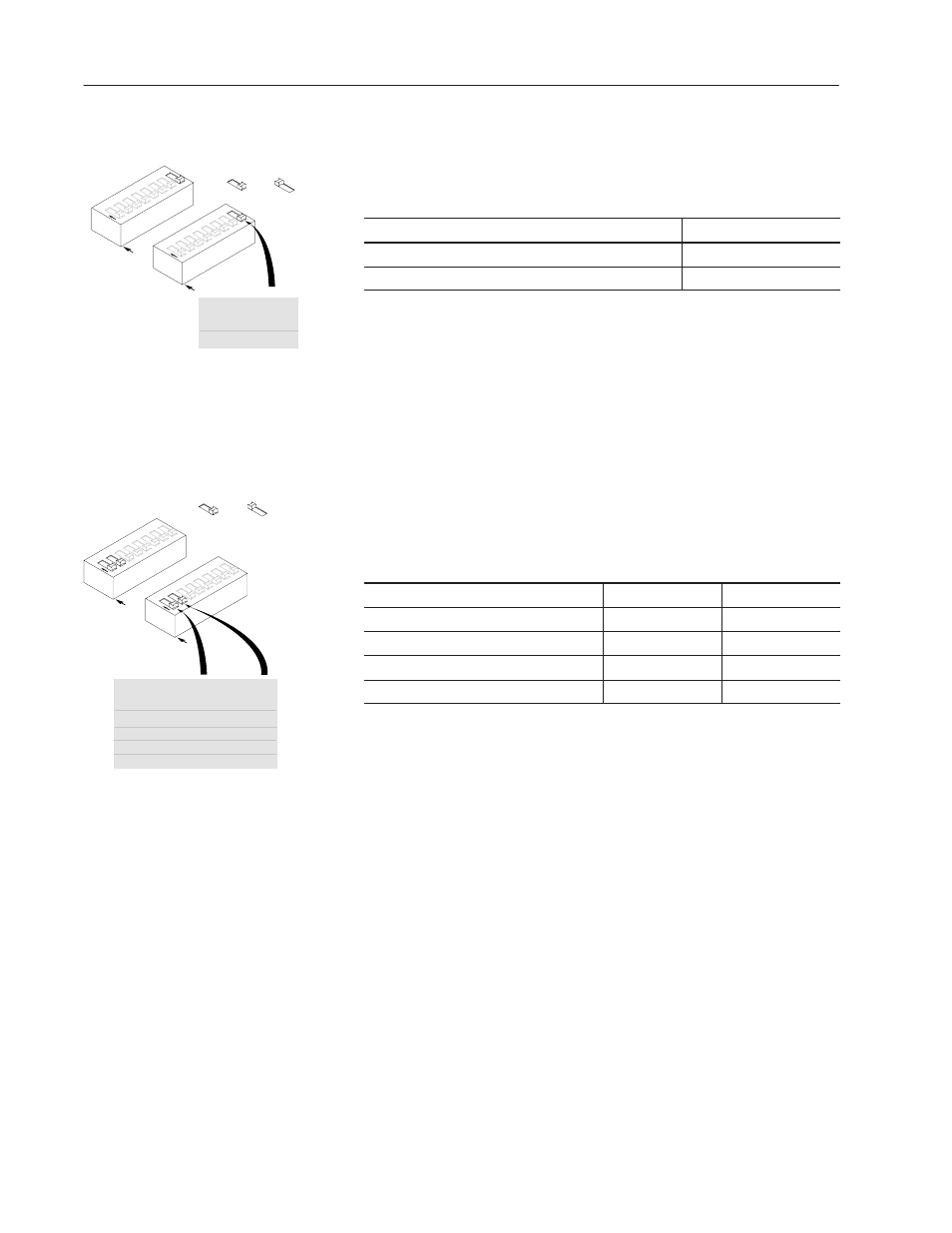

Specifying Whether You Are Using Redundant RIO
Use the following chart to set switch 8 on either U2 or U4.
Are you using redundant RIO mode? If: Then set SW8 to:
Yes On
No Off
If you are using redundant RIO mode, make sure that both channels
have the same RIO configuration (protocol selection and rack size).
If you do not use the same rack size and protocol for both channels,
you will get a fault.
For more information about redundant RIO, refer to Chapter 3,
Using Remote I/O Communications.
Selecting the RIO Starting Group
Use the following chart to set switches 1 and 2 on either U3 or U5 to
specify the rack starting group.
If the starting group must be: Set SW1 to: And SW2 to:
Group 0 Off Off
Group 2 Off On
Group 4 On Off
Group 6 On On
