10 Function library
10.1 L_MPot_1
228
Lenze · 8400 BaseLine D · Reference manual · DMS 5.5 EN · 01/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
10.1.1 Activate & control motor potentiometer
When bInAct is set to FALSE, the motor potentiometer is activated.
• The currently active function depends on the current output signal nOut_a, the limit values set
and the control signals at bUp and bDown.
• When the nOut_a output signal is outside the limits set, the output signal runs to the next limit
with the Ti times set. This process is independent of the control signals at bUp and bDown.
• When the nOut_a output signal is inside the limits set, the output signal changes according to
the control signals at bUp and bDown.

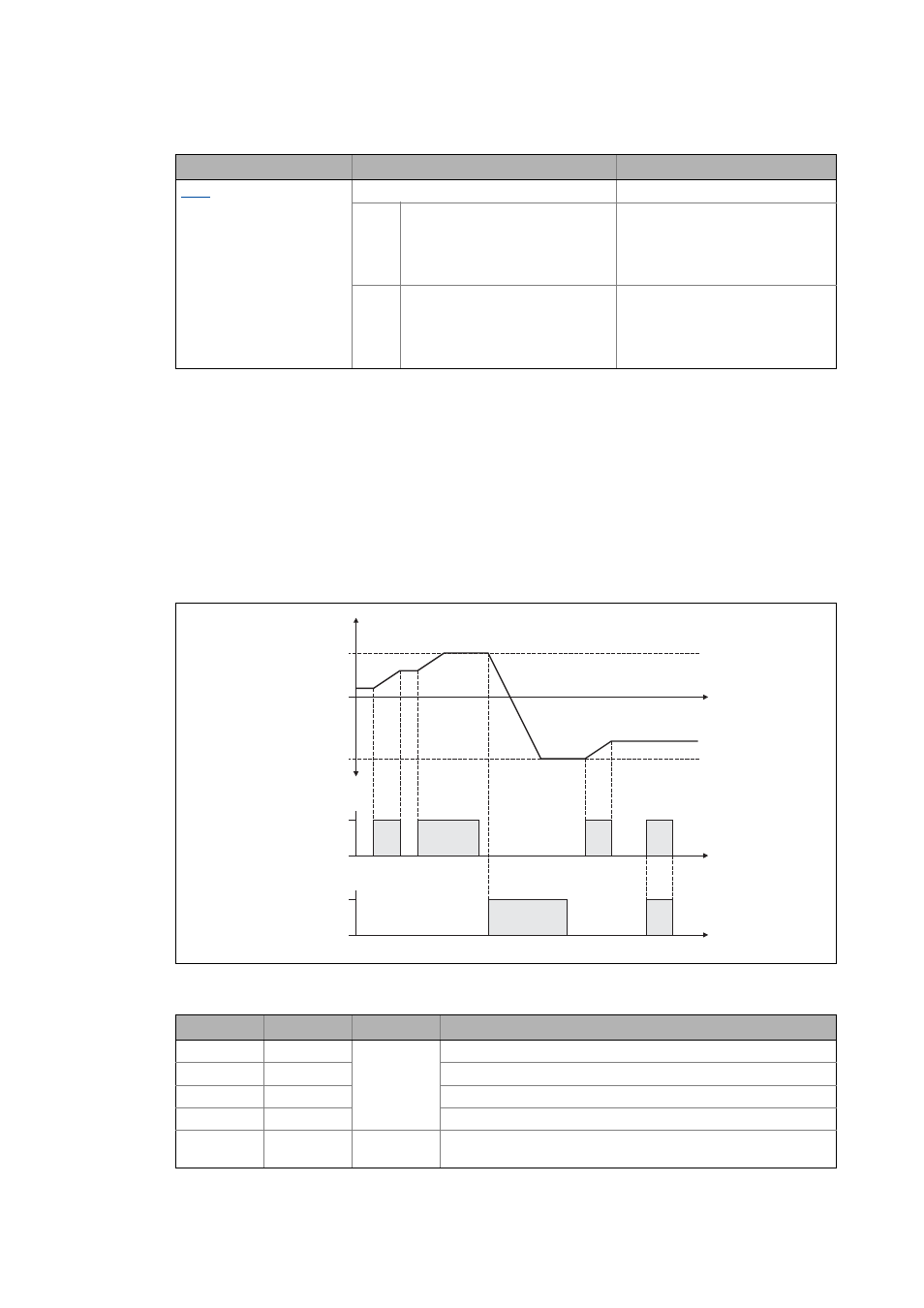

[10-1] Example: Control of the motor potentiometer
C806 Use of the motor potentiometer
0 No
(Lenze setting)
The motor potentiometer is not used.
• The analog value applied to the
nIn_a input is looped through wi-
thout any changes to the nOut_a
output.
1 Yes The motor potentiometer is used.
• The analog value applied at the
nIn_a input is led via the motor
potentiometer and provided at
the nOut_a output.
Parameter Possible settings Info
nOut_a
t
t
TRUE
FALSE
bUp
t
TRUE
FALSE
bDown
nHighLimit
nLowLimit
0
wTir
wTir
wTif
wTir
bUp bDown bInact Function
FALSE FALSE FALSE The nOut_a output signal remains unchanged.
TRUE FALSE The nOut_a output signal runs to its upper limit value (nHighLimit).
FALSE TRUE The nOut_a output signal runs to its lower limit value (nLowLimit).
TRUE TRUE The nOut_a output signal remains unchanged.
- - TRUE The motor potentiometer function is deactivated. The nOut_a out-
put signal responds according to the function selected via Function.
