Introduction: Parameterising the controller
2.3
Internal Keypad
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Control elements
2.3.2
LED status display
Key
Name
Function
ESC
Escape key
On menu and parameter level: Back
In case of parameter processing: Abort (discard changed setting)
↵
Enter key
On menu and parameter level: Next (confirm selection)
In case of parameter processing: OK (accept changed setting)
Long pressing (3 seconds): Saving of all parameters
Quick saving of all parameters at the push of a button ( 24)
Navigation key
upwards
On menu and parameter level: Navigation
In case of parameter processing: Set parameter value
Long pressing (> 2 seconds): Quick scroll function
Navigation key
downwards

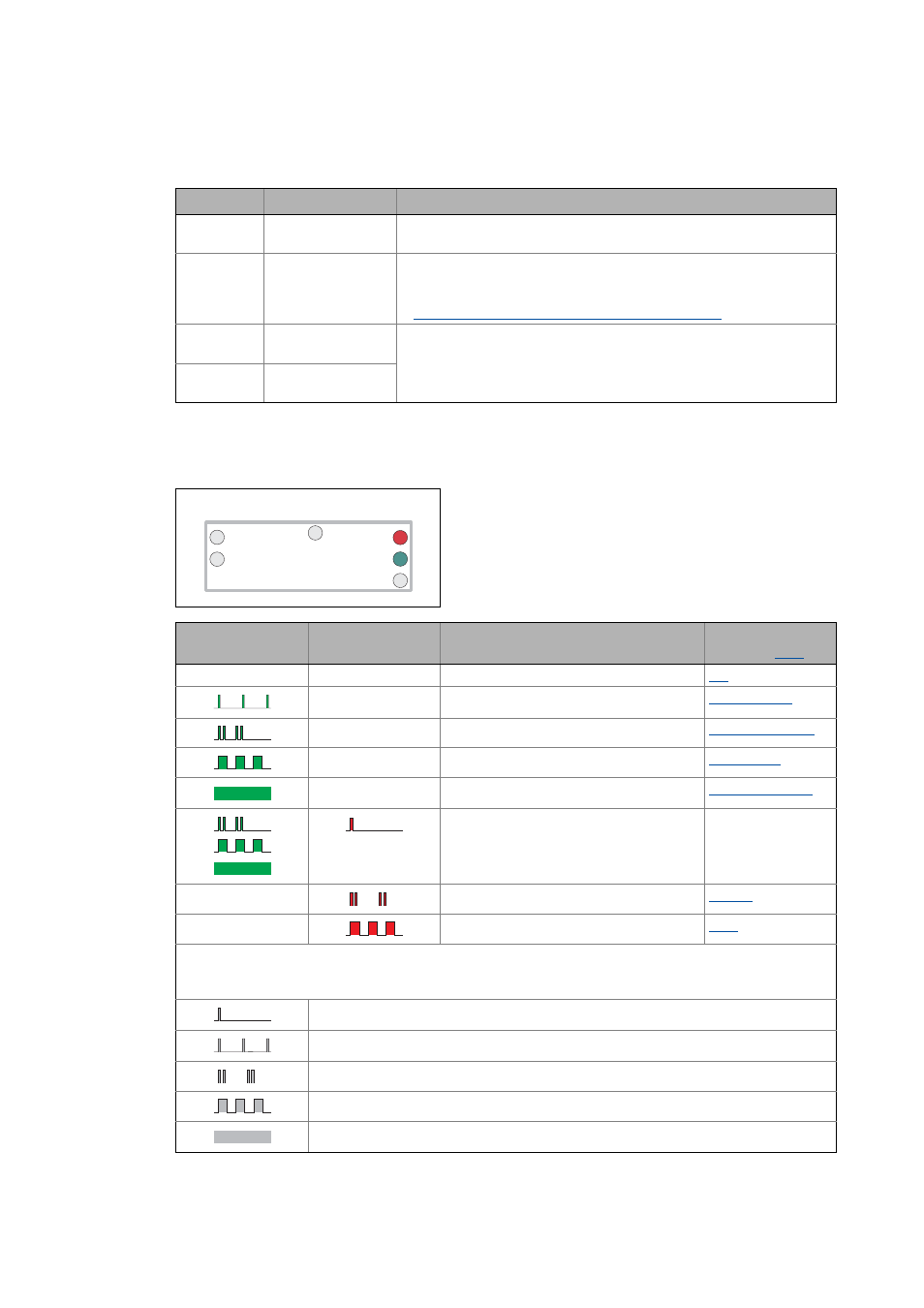

Information on some operating states can quickly be ob-
tained via the front D and E LEDs:
The meaning can be seen from the table below.
E
"DRIVE READY"
D
"DRIVE ERROR"
Description
Device state
(Display in
)
OFF
OFF
OFF or initialisation active
OFF
Safe torque off is active
OFF
Device is ready to start
OFF
Device is switched on
OFF
Motor data identification/operation
The controller is ready to switch on, switched
on or the operation is enabled and a warning
is indicated.
OFF
Trouble is active
OFF
Fault is active
Legend
The symbols used for indicating the LED states have the following meaning:
LED is flashing once approx. every 3 seconds (slow flash)
LED is flashing once approx. every 1.25 seconds (flash)
LED is flashing twice approx. every 1.25 seconds (double flash)
LED is blinking every second
LED is permanently on
8888
B
C
D
E
F
A
