6 I/O terminals
6.1 Digital terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

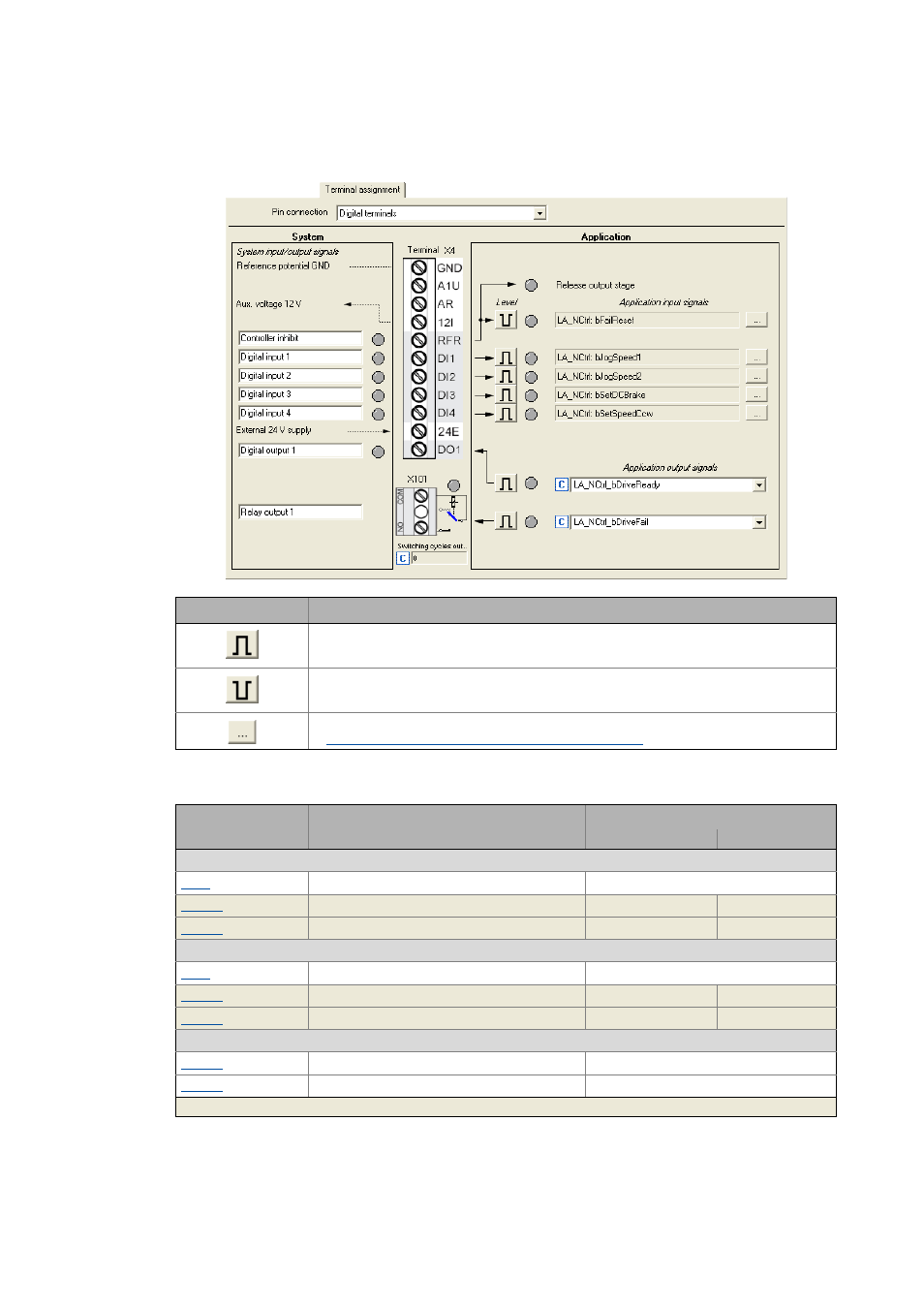

Parameterisation dialog in the »Engineer«
Short overview of parameters for the digital terminals:
Button Function
Indicates the polarity of the input is HIGH active.
The polarity can be changed from HIGH active to LOW active by clicking on this button.
Indicates that the polarity of the input is LOW active.
The polarity can be changed from LOW active to HIGH active by clicking on this button.
Open the parameterising dialog for assigning application inputs to the digital input.
 Changing the terminal assignment with the »Engineer« ( 117)
Parameter Info Lenze setting
Value Unit
Digital inputs DI1 ... DI5
C114 DIx: Polarity Bit coded
C443/1 DIx: Terminal level -
C443/2 DIx: Output level (to the application) -
Digital output DO1 / relay output
C118 DOx: Inversion Bit coded
C444/1 DOx: Input level (from the application) -
C444/2 DOx: Terminal level -
Digital outputs - terminal configuration
C621/1 LS_DigitalOutput:bRelay 50: LA_nCtrl_bDriveFail
C621/2 LS_DigitalOutput:bOut1 51: LA_nCtrl_bDriveReady
Highlighted in grey = display parameter
