2 Introduction: Parameterising the controller
2.3 Internal Keypad
22
Lenze · 8400 BaseLine D · Reference manual · DMS 5.5 EN · 01/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

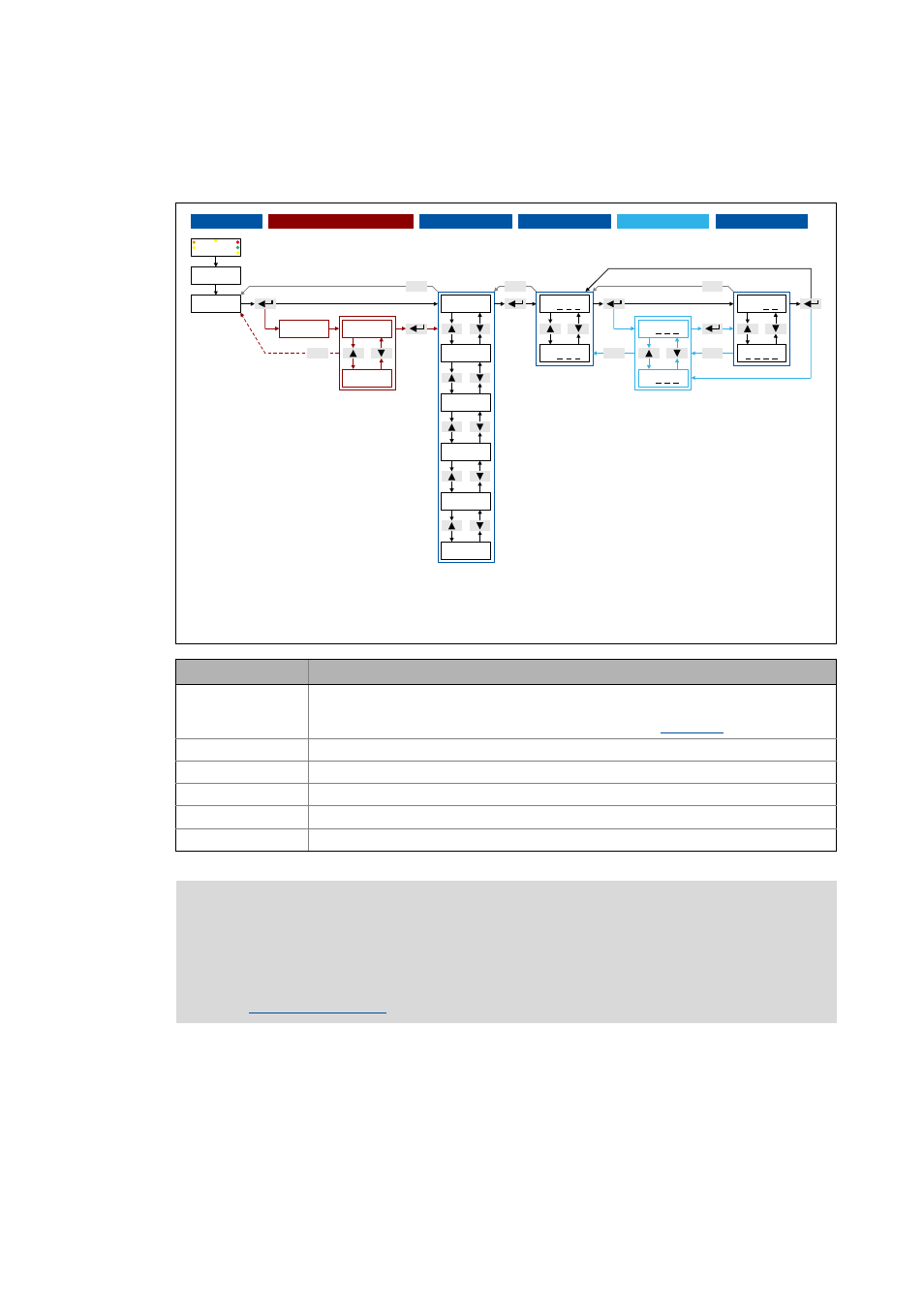

2.3.4 Menu structure
• Without active password protection, the "password" level will be skipped.
• The following applies when changing between the levels "Menu", "Code" and "Subcode":
The keypad records the last selection.
• For codes without subcodes, the "Subcode" level will be skipped.
Menu Info
-0- Access to the parameters of the user menu.
• The user menu of a device serves to create a selection of frequently used parameters to
be able to access and change these parameters quickly.  User menu ( 23)
-1- Access to all drive parameters.
-2- Access to parameters for quick commissioning with terminal control.
-3- Access to parameters for quick commissioning with the integrated keypad.
-4- Access to motor control parameters.
-5- Access to diagnostic/display parameters.

Note!
When the password protection is activated and no password or a wrong password is en-
tered, only the parameters of the user menu can be accessed using the integrated key-
pad. All other menus/parameters require the correct password.
 Password protection ( 24)
ģĤ;
MM
2#55
Ħ
(6&
(6&
%
(6&
(6&
%
(6&
ĥ
ĥ
(6&
6WDWH 3DVVZRUG 0HQX &RGH 6XEFRGH 9DOXH
