Lenze · 8400 BaseLine D · Reference manual · DMS 5.5 EN · 01/2014 · TD05
153
8
Diagnostics & error management
8.7
Error messages of the operating system
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.7
Error messages of the operating system
This chapter describes all error messages of the controller operating system and possible causes &
remedies.
Tip!
Each error message is also saved in the logbook in chronological order.
8.7.1
Structure of the error number (bit coding)

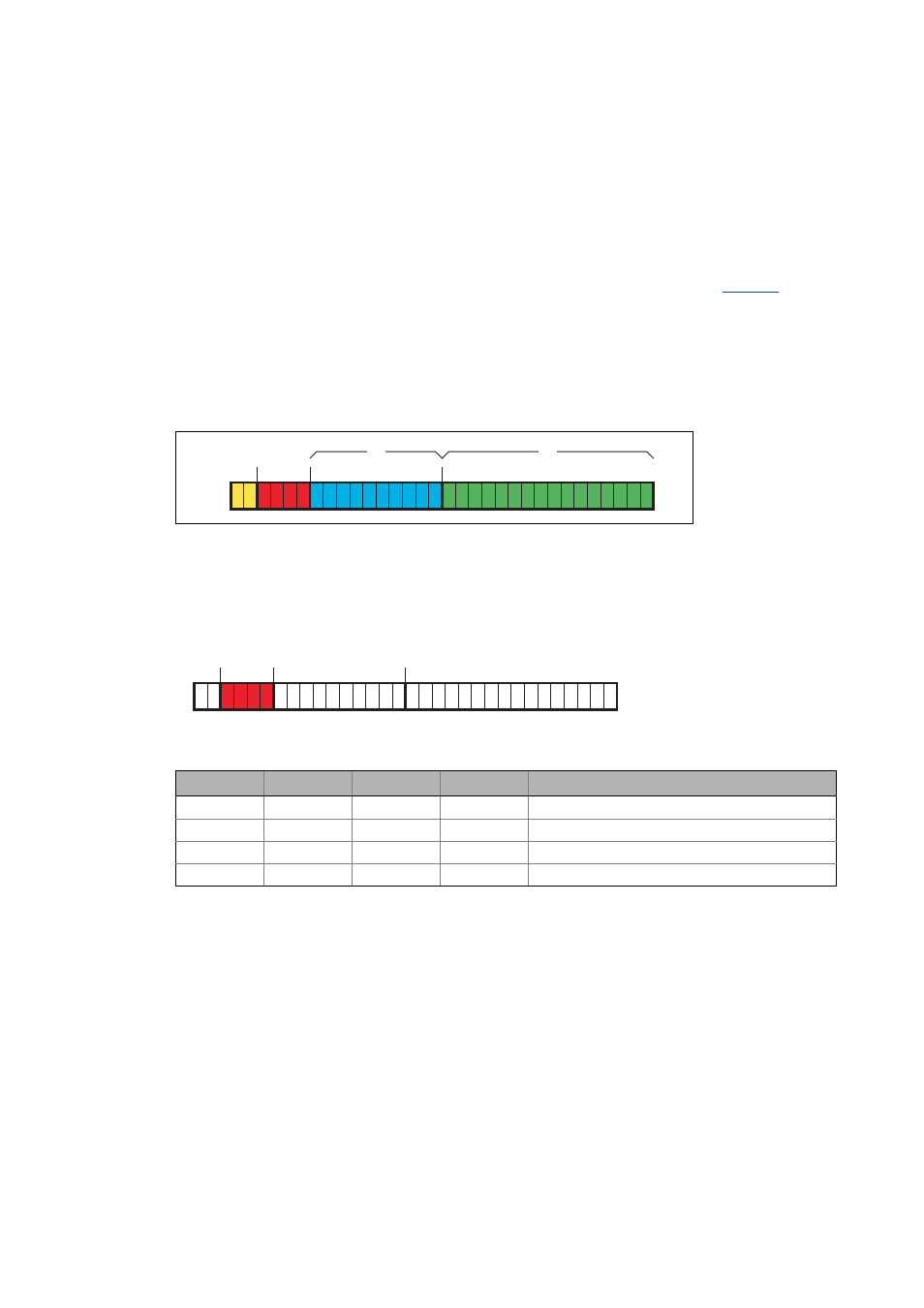

If an error occurs in the controller, the internal fault memory saves a 32-bit value which contains the
following information:
[8-1]
Structure of the error number
For the sake of legibiltiy, the error number in the logbook is displayed with the following syntax:
[Error type].[Error subject area no.].[Error ID]
8.7.1.1
Error type
The error type gives information about the behaviour/response of the controller to the error. The er-
ror type for some device errors can also be parameterised.
Reserved
Error type
Error subject area
Error ID
2
1
0
3
Bit
16
25
26
31
0
15
29
30
Bit 29
Bit 28
Bit 27
Bit 26
Meaning
0
0
0
0
0: No response
0
0
0
1
1: Fault
0
0
1
0
2: Trouble
0
1
0
0
4: WarningLocked
Bit
16
25
26
31
0
15
29
30
