81 Paradigm Architectural Control Processor Configuration Manual
Note:
Note:
Note:
D
D
A
A
A
Note:
M T W T F S S
2012
MAR
Special Day Protect
Date: 3/16/12
Day Protection: On
Protected Days are
not affected by any
recurring Events.

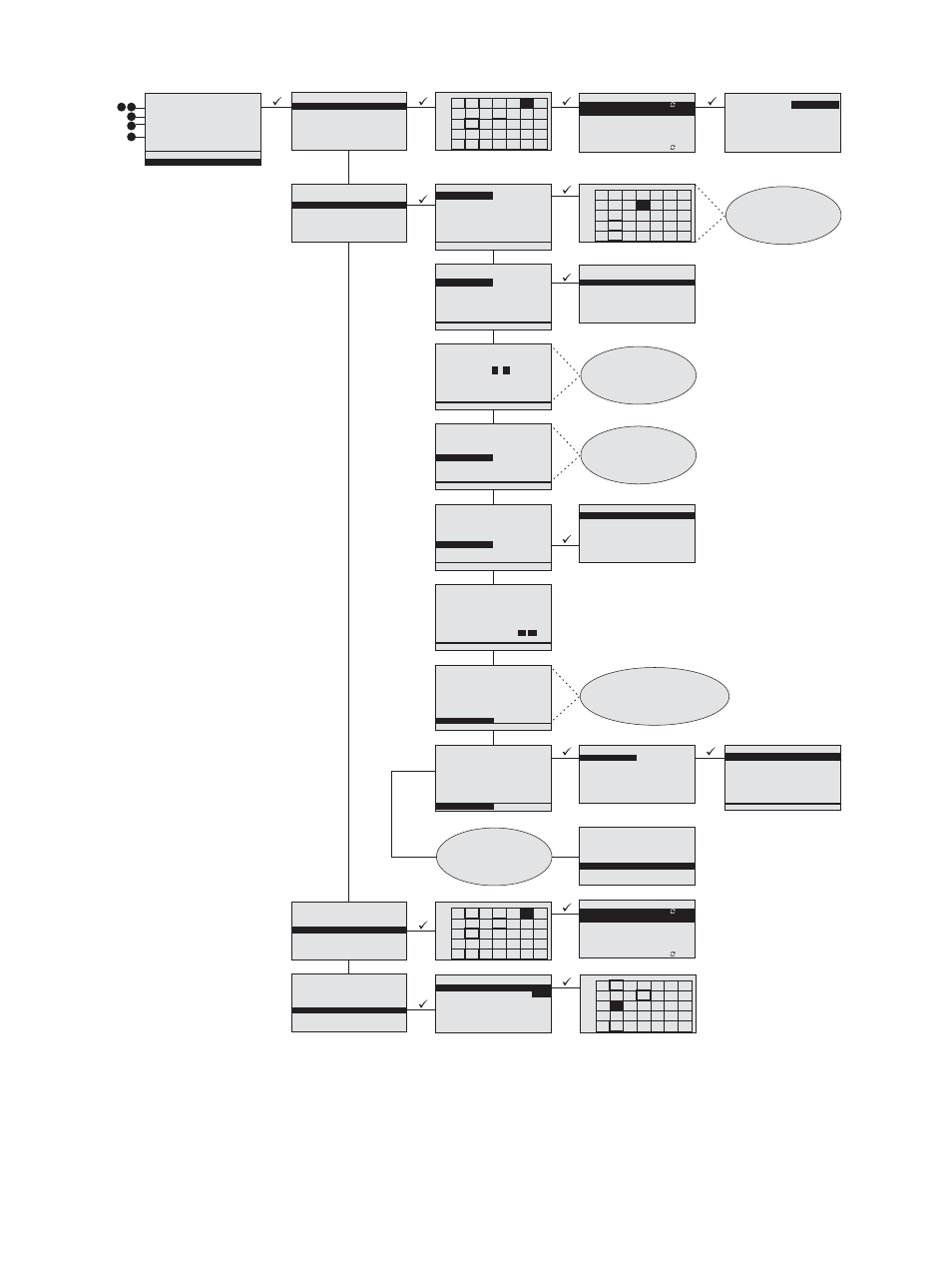

Timed Event Setup
View/Edit Events
Add New Event
Delete Event
Special Day Protect
Fri, Mar 2nd 2012
Timed Event 1
1:00pm - 3:30pm 12-31
Timed Event 2
Sunset-0:30
Timed Event 3
6:00a.m.
Timed Event 4
S M T W T F S
2012
MAR
Timed Event Setup
View/Edit Events
Add New Event
Delete Event
Special Day Protect
Recurrence Type
Once
Hourly
Daily
Weekly
Monthly
Yearly
Holiday
Custom
Configure Recurrence
Type: Once
Attention
Changes made must
be applied to the
configuration
to take effect.
Save Changes and Exit
Discard and Exit
Cancel
Add New Event
Date: 3/11/12
Start: Before Sunrise
Time: 0h19m 5:27 am
Action: Macros
End: Time of Day
Time: 9:15 am
Action: Macros
Recurrence: None
Add New Event
Date: 3/11/12
Start: Before Sunrise
Time: 0h19m 5:27 am
Action: Macros
End: Time of Day
Time: 9:15 am
Action: None
Recurrence: None
Add New Event
Date: 3/11/12
Start: Before Sunrise
Time: 0h19m 5:27 am
Action: Macros
End: Time of Day
Time: hh : mm am
Action: None
Recurrence: None
End Time
Time of Day
Duration
Before Sunrise
After Sunrise
Before Sunset
After Sunset
Add New Event
Date: 3/11/12
Start: Before Sunrise
Time: 0h19m 5:27 am
Action: Macros
End: Duration
Time: 0h 0m hhmm am
Action: None
Recurrence: None
Add New Event
Date: 3/11/12
Start: Before Sunrise
Time: 0h19m 5:27 am
Action: None
End: Duration
Time: 0h 0m hhmm am
Action: None
Recurrence: None
When edits are
made to “Add or
Edit Event” you will be
prompted to save, discard
or cancel changes.
<
Available actions
are the same as
power on behaviors.
Add New Event
Date: 3/11/12
Start: Before Sunrise
Time: -- h -- m hh:mm am
Action: None
End: Duration
Time: 0h 0m hhmm am
Action: None
Recurrence: None
Start Time
Time of Day
Before Sunrise
After Sunrise
Before Sunset
After Sunset
Add New Event
Date: 3/11/12
Start: Time Of Day
Time: 1:00pm
Action: None
End: Duration
Time: 0h 0m hhmm am
Action: None
Recurrence: None
S M T W T F S
2012
MAR Once an event
has been created or
edited, all parameters must
be applied at once to the
configuration when exiting
“Add New Event” or
“View/Edit Events”
display.
Add New Event
Date: 3/11/12
Start: Time Of Day
Time: 1:00pm
Action: None
End: Duration
Time: 0h 0m hhmm am
Action: None
Recurrence: None
Timed Event Setup
View/Edit Events
Add New Event
Delete Event
Special Day Protect
Edit Event
Start: Time Of Day
Time: 1:00pm
Action: Lock House
End: Time of Day
Time: 3:30pm
Action: Unlock House
Recurrence: Weekly
Fri, Mar 2nd 2012
Timed Event 1
1:00pm - 3:30pm 12-31
Timed Event 2
Sunset-0:30
Timed Event 3
6:00a.m.
Timed Event 4
Timed Event Setup
View/Edit Events
Add New Event
Delete Event
Special Day Protect
Available actions
are the same as power on
behaviors. After an action is
selected, a new menu list displays
action properties. Select an object
to perform the action on, for
example Preset Activate lists
all presets.
1 About
2 Dimming Setup
3 Arch Setup
4 Dimming Control
5 Arch Control
6 File Operations
7 View/Clear Errors
8 Restricted Access
9 Timed Event Setup
Main Menu
Astronomical
time, based off of
sunrise & sunset, allows
hours & minutes offset
settings. hh:mm am/pm shows
the calculated time once
the values have been
set.
MAR
S M T W T F S
2012
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
1 2 3
4 5 6 7 8 9 10
11
12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
