E T C
®
S e t u p G u i d e
Unison
®
Fluorescent Option Kit Installation
Unison Fluorescent Option Kit Setup Guide Page 1 of 2 Electronic Theatre Controls, Inc.
Corporate Headquarters  3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA  Tel +608 831 4116  Fax +608 836 1736
London, UK  Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK  Tel +44 (0)20 8896 1000  Fax +44 (0)20 8896 2000
Rome, IT  Via Pieve Torina, 48, 00156 Rome, Italy  Tel +39 (06) 32 111 683  Fax +44 (0) 20 8752 8486
Holzkirchen, DE

Ohmstrasse 3, 83607 Holzkirchen, Germany

Tel +49 (80 24) 47 00-0

Fax +49 (80 24) 47 00-3 00
Hong Kong  Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong  Tel +852 2799 1220  Fax +852 2799 9325
Service: (Americas) [email protected]

(UK) [email protected]

(DE) [email protected]

(Asia) [email protected]
Web: www.etcconnect.com  Copyright © 2012 ETC. All Rights Reserved.  Product information and specifications subject to change.
7183M2220  Rev C  Released 2012-02  ETC intends this document to be provided in its entirety.
.
It is best to install rack options after conduit rough-in and the line, load and control terminations
are complete to reduce the likelihood of damage to the option board.
Fluorescent Option Kit
Install the Fluorescent Option Kit
The fluorescent option (DRd-FLO) kit provides 24 outputs for control of 4-wire (0-10 Vdc)
fluorescent ballasts. Each channel output is linked one - to - one with a rack circuit for power
control. The FLO board is comprised of 24 individual 0 - 10 Vdc connections, each rated to
control a maximum of 400mA per channel (typically 50 or more ballasts).
Each output connection is clearly labeled on the removable screw terminal bus connectors. The
removable connectors accept 12 - 24 AWG (4 - .25mm 2 ) Class 1 wire.

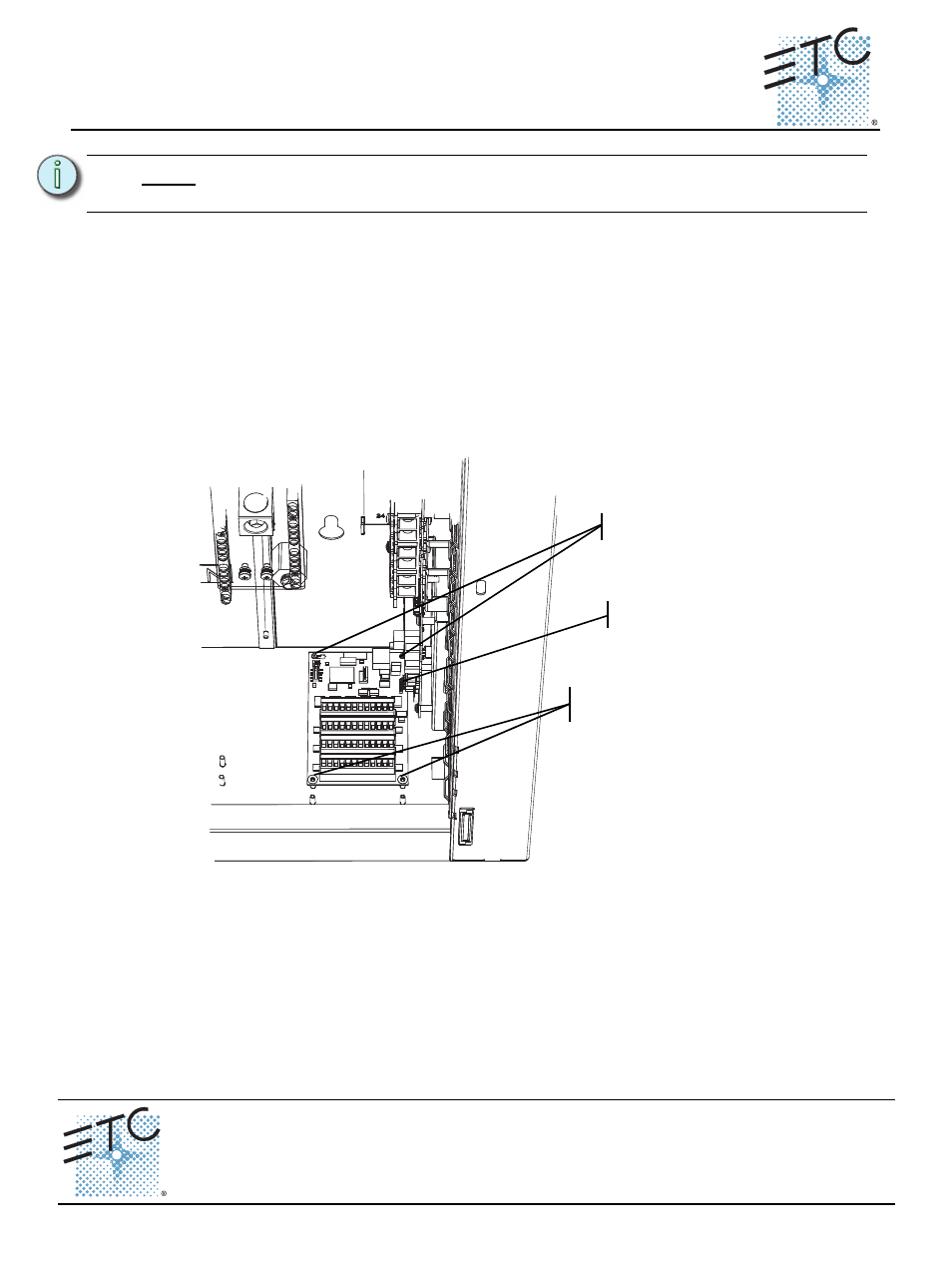

Step 1: Align the FLO option board to the mounting studs in the bottom of the DRd rack.
• Notice the mounting holes on the FLO option board. One is a slotted keyhole,
another is an open ended slot and the remaining two on the other end of the
board are standard mounting holes used to secure the board in place.
Step 2: Set the rear stud through the slotted keyhole and align the open ended slot with the
back right side mounting stud.
Step 3: Gently slide the FLO board toward the right I/O board aligning the five prong
connector to the receptacle on the right I/O board.
Step 4: Secure the remaining two mounting holes to the pems with the screws provided.
N o t e : A single Unison DRd rack supports the use of either the DALI option kit or the FLO
option kit, but not both in the same rack.
Step 2:
Step 3:
Step 4:
