1
Installation and User Interface Overview 12
Enter
The enter button ( ) is used to commit an edit or an action such as to make a selection
from the menu list or to commit a selected value.

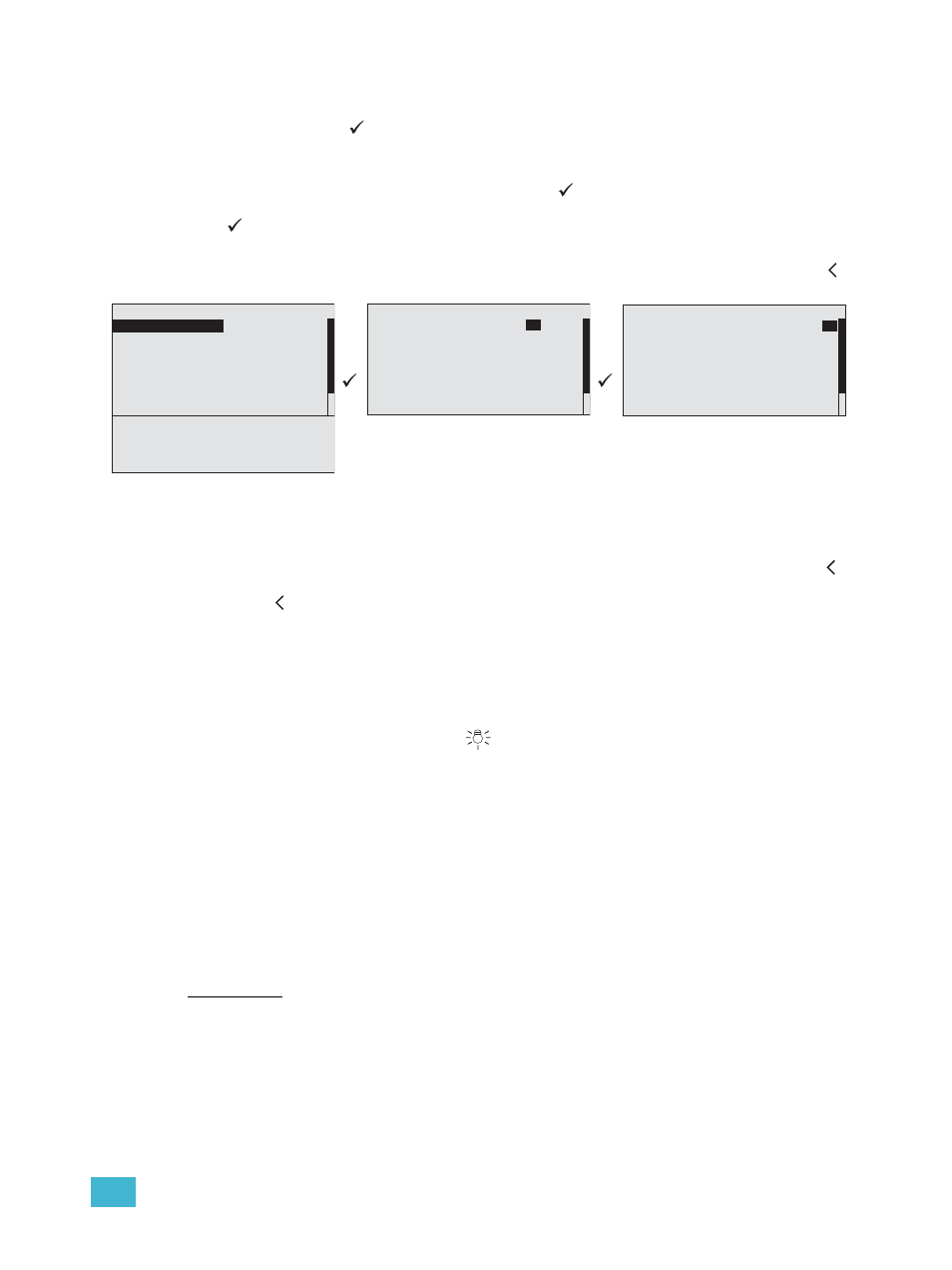

When focus is on the first text value (“From Dimmer:” in the example below) and an edit or
change to the selection is desired, press enter ( ). The focus changes to the next
selectable value in the display (dimmer “1” in this example). Make the edit and press enter
( ) again to change focus to the next selectable value for edit (dimmer “12” in this
example).
When all selections and edits have been made for the display, press the back button ( )
to return to the previous menu.
To advance through the list of setup options, use the touch wheel to scroll.
Back
To cancel an entry or selection and return to the previous menu, press the back button ( ).
When selection focus is on a specific value and you cancel the edit by pressing the back
button ( ), focus changes to the previous selectable value.
Multiple presses of the back button will eventually take you to the status display, either the
Dimming Rack Status (DRd only) display or the Arch Control Status display, whichever was
viewed last.
Control Menu Shortcut
The control menu shortcut button ( ) provides easy access to the dimming and
architectural control menus.
Press the control menu shortcut button once to access the dimming control menu. Press it
again to access the arch control menu. When the Paradigm ACP is installed in an host ERn
rack, only the architectural control menu is available for viewing.
Alpha-Numeric Button Pad
The numbers on the button pad may be used to select specific menu items when using
#nav shortcuts is enabled, or to enter a specific value such as a dimmer number, intensity
value, etc., while in a selectable menu. Additionally, the button pad may be used to alpha-
numerically search the menu. When a “abc” graphic is displayed in the right corner of the
display, alpha-numeric searching may be used.
Recent/And
The [recent / and] button is a dual function button.
• Used as a menu navigation shortcut, pressing [recent/] at any point in navigation
displays a list of the last seven device menus that have been accessed, with the most
recent first in the list. Selecting any of the listed items automatically directs you to that
menu. Recent command navigation relies on the current user access level to display
only accessible options.
Dimmer Setup
From Dimmer: 1 to: 12
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg:
On
Max Scale: 118V
Min Scale: 6V
Dyn Preheat:
Off
Transformer mode: On
DMX Res: Lo 8 bit
Dimmer Setup
From Dimmer: 1 to:12
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg:
On
Max Scale: 118V
Dimmer Setup
From Dimmer: 1 to: 12
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg:
On
Max Scale: 118V
