In the example, each VLAN has one port connected to the router. The
router interconnects the various VLANs and functions as a gateway to
the WAN.
Port-based
Example 2 Figure 25 illustrates more port-based VLANs. In this example, two VLANs
span more than one Ethernet switch.

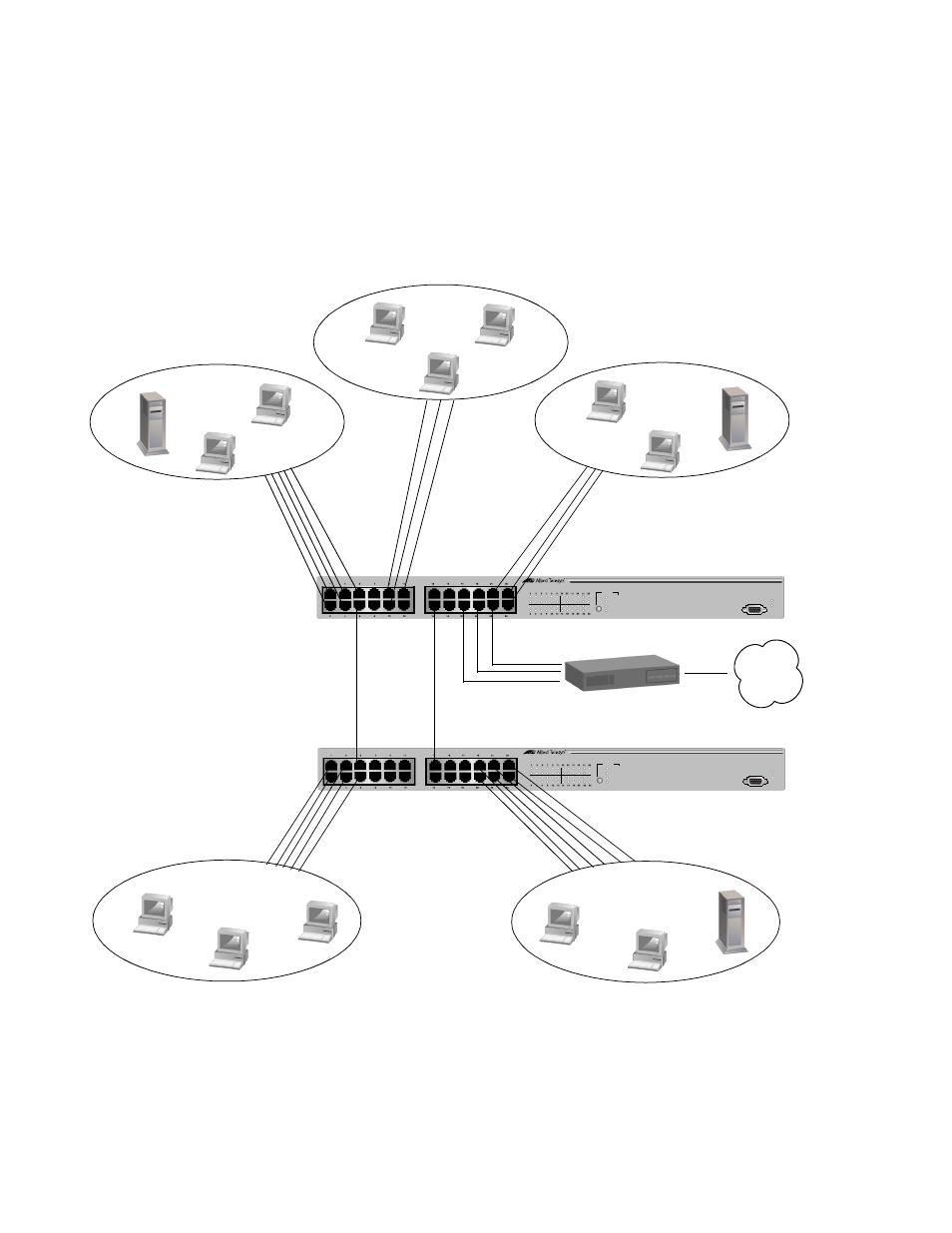

Figure 25 Port-based VLAN - Example 2
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL
FAULT
MASTER
PWR
AT-8024
10Base-T / 100Base-TX Fast Ethernet Switch RS-232 TERMINAL PORT
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL FAULT
MASTER
PWR
AT-8024
10Base-T / 100Base-TX Fast Ethernet Switch RS-232 TERMINAL PORT
AT-8024 Ethernet Switch
Sales VLAN Production VLAN
(VID 2)
(VID 4)
AT-8024 Ethernet Switch
Sales VLAN Engineering VLAN
(VID 2) (VID 3)
WAN
Engineering VLAN
(VID 3)
