AT-MCF2000 Media Converter Series Installation Guide
Section I: Features 71
The states of the Link/Activity LED are defined in Table 18.
Secure Digital
Memory Card
Slot LED
The secure digital memory card slot has one LED.

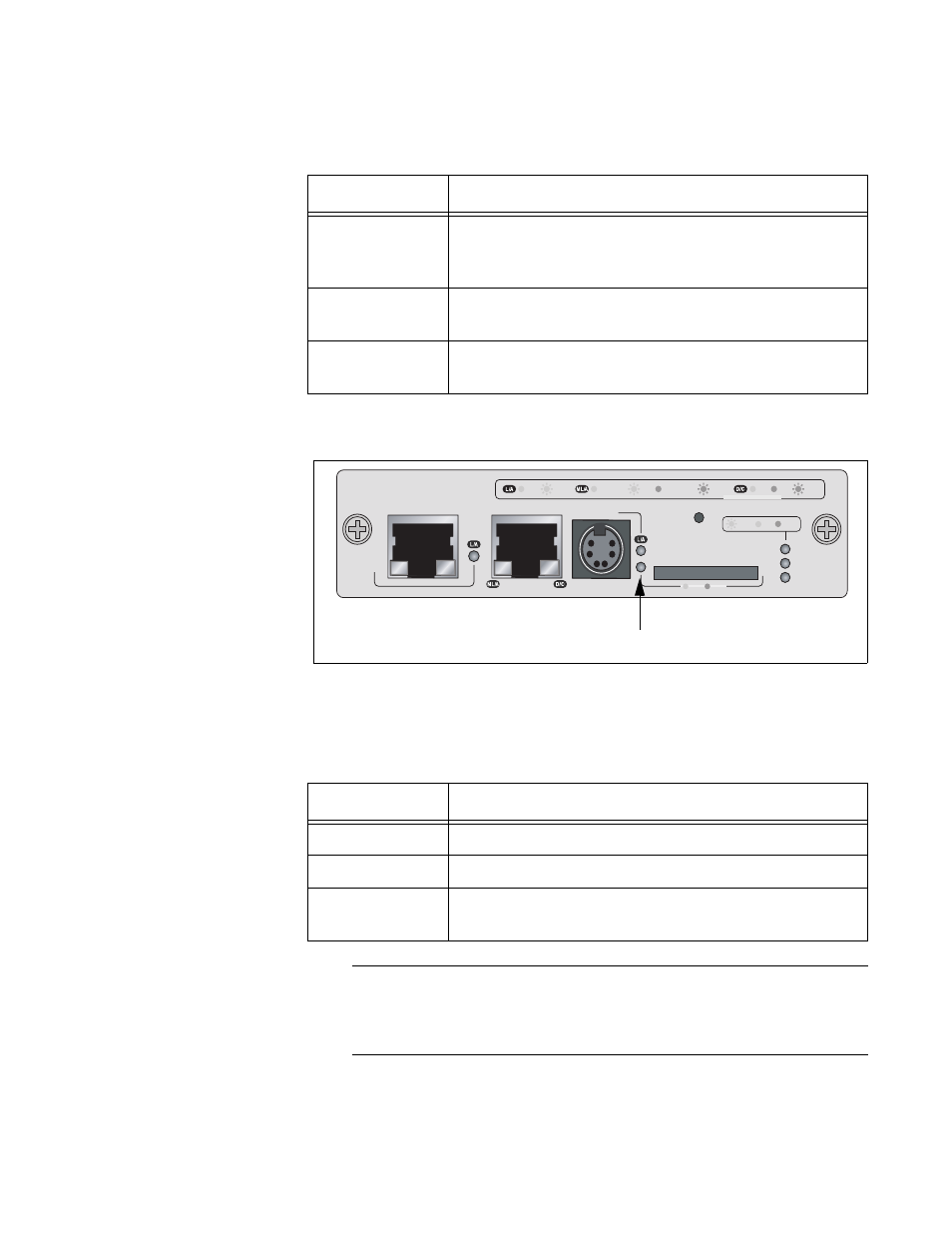

Figure 33. SD Slot LED
The states of the LED are defined in Table 19.
Note
Do not remove a secure digital memory card from the SD slot when
the LED is amber. Wait for the LED to change to green before
removing the card.
Table 18. Link/Activity LED on the Management Port
State Description
Off The chassis is not part of a stack or the port has not
established a link with the Stack port in another
chassis.
Steady Green The port has established a link with the Stack port in
the next chassis in the stack.
Flashing Green The port is sending or receiving management packets
from the next chassis in the stack.
Table 19. SD Slot LED
State Description
Off The SD slot is empty or a card is installed improperly.
Green A secure digital memory card is present in the slot.
Amber The management module is retrieving or storing data
on a secure digital memory card.
AT-MCF2000M
STACK MANAGEMENT
TERMINAL
10/100/1000BASE-T RS-232
RESET
SD
RDY BUSY
MASTER
POWER
BOOT RDY FAULT
1000 LINK ACT 10/100 LINK ACT FDX HDX COL LINK ACT
PORT ACTIVITY
1199
SYSTEM
SD Slot LED
