Chapter 24: Replacing the Modules
162 Section II: Installation
2. Using a cross-head screwdriver, loosen the two captive screws that
secure the module to the chassis and slide out the module.

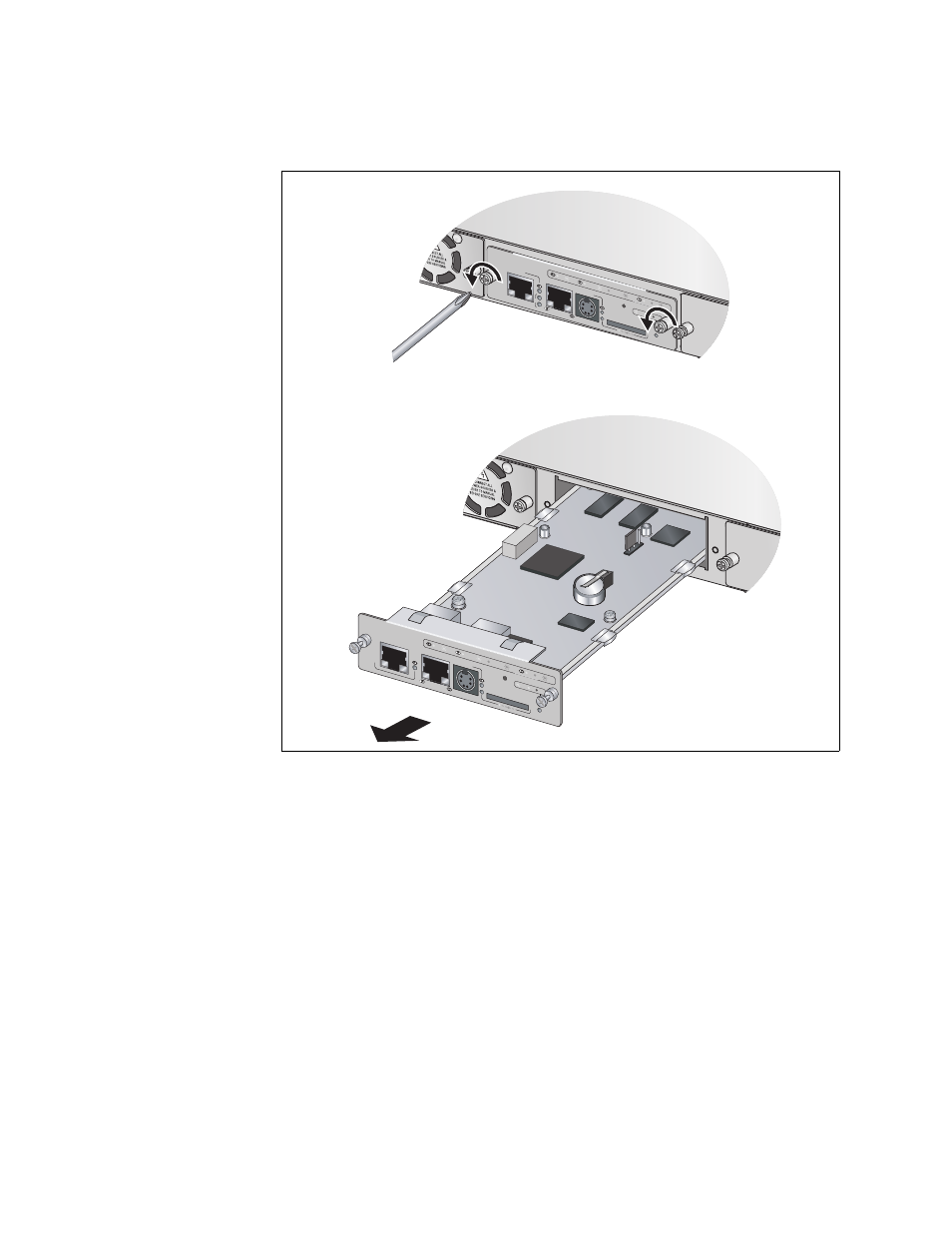

Figure 91. Removing the AT-MCF2000M Management Module or the
AT-MCF2000S Stacking Module
3. To install a replacement module, refer to Chapter 13, “Installing the
AT-MCF2000M Management Module” on page 111 or Chapter 14,
“Installing the AT-MCF2000S Stacking Module” on page 115.
AT-MCF200
0M
STACK
MANA GEMEN T
TERMIN AL
10/100/1000
BASE-T
RS-232
RESET
SD
RDY BUSY MASTE R POWER
BOOT RDY FAULT
1000 LINK
ACT 10/100 LINK
ACT
FDX HDX COL
LINK ACT
PORT A CTIVITY AT-MCF2K
F
N
F
ST
0
31
ID
AT-MCF2KF
A
NOR
FAU
STAT
STACK
MANAGEMENT
TERMINAL
10/100/100 0BASE-T
RS-232
RESET
SD
RDY BUSY
MASTER
POWER
BOOT RDY FAULT
1000 LINK
ACT 10/100 LINK
ACT
FDX HDX COL
LINK
ACT
PORT ACTIVITY
