Chapter 17: Installing the SFP Modules in the AT-MCF2032SP Module
126 Section II: Installation
Caution
SFP modules are sensitive to and can be damaged by electrostatic
discharge. Wear a grounding device and observe electrostatic
discharge precautions when installing the modules in the chassis.
3. If the transceiver is being installed in a slot in the top row, position it
with the label facing up. If the transceiver is being installed in a slot in
the bottom row, position it with the label facing down.
4. Slide the transceiver into the slot until it clicks into place.

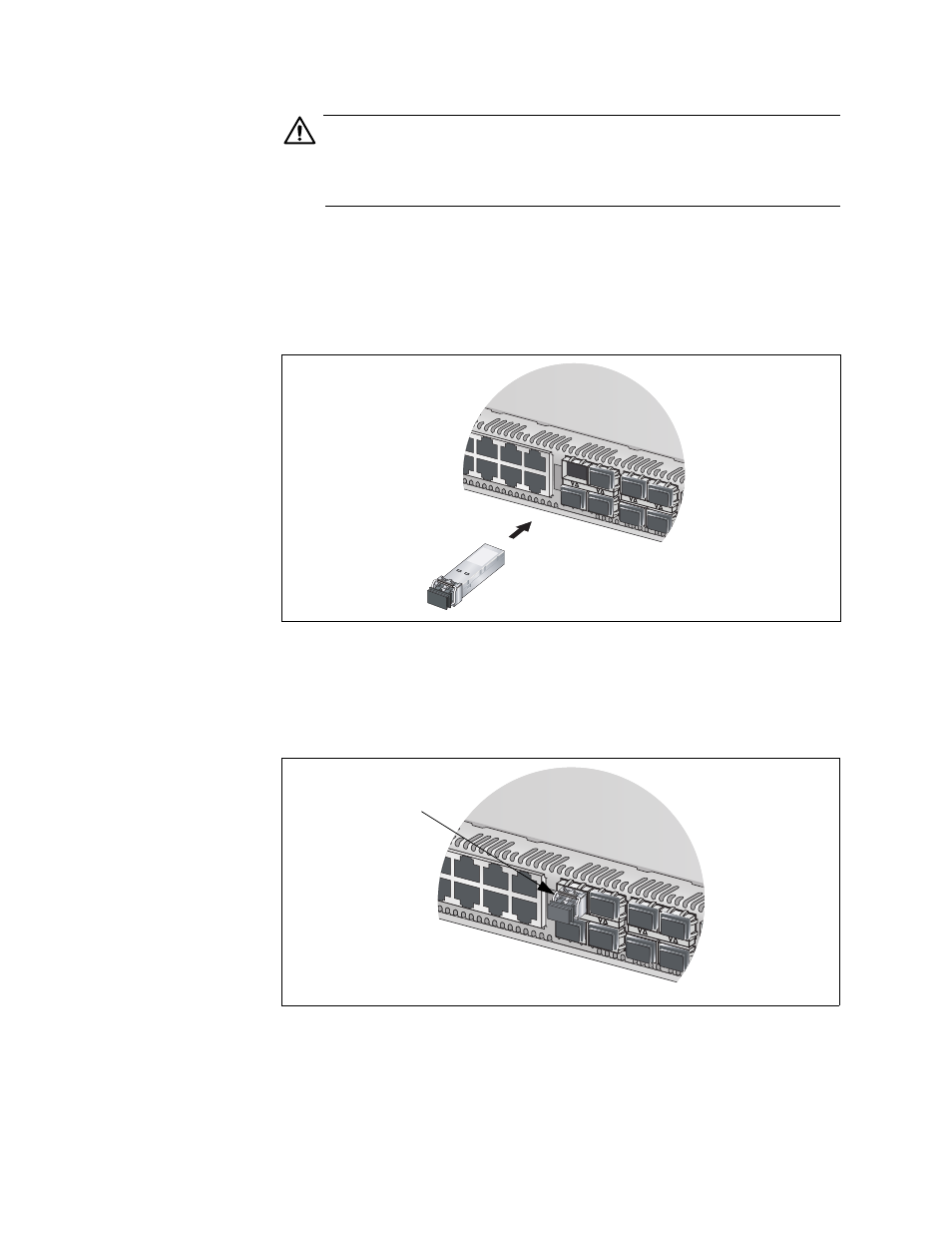

Figure 73. Installing an SFP Module
5. If the SFP transceiver is in the top row of slots, verify that its handle is
in the upright position. If the SFP transceiver is in the bottom row,
verify that the handle is in the down position.
Figure 74. Positioning the SFP Handle
1397
1414
Transceiver
Handle
