AT-MCF2000 Media Converter Series Installation Guide
177
RS-232 Terminal
Port Pinouts

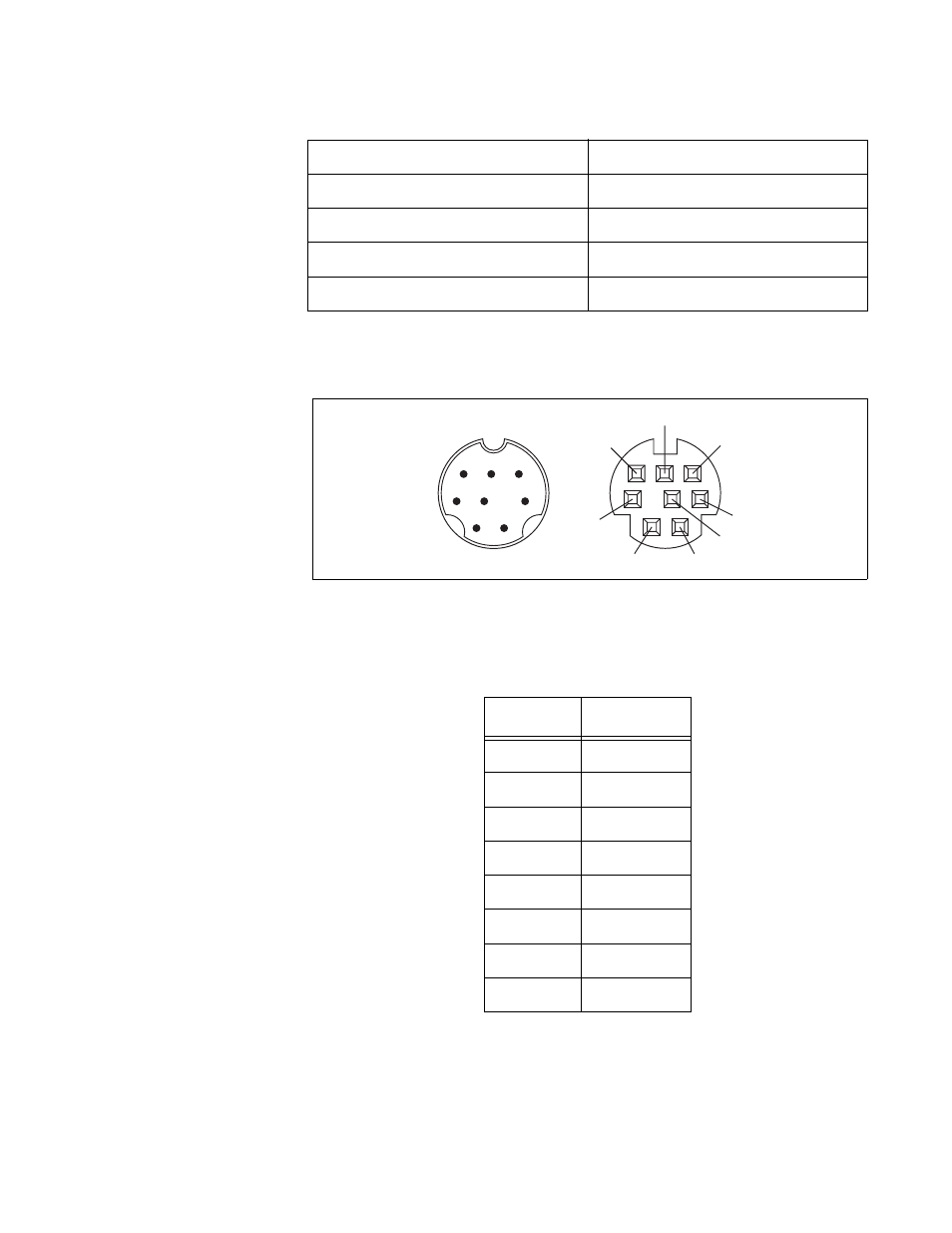

Figure 101 illustrates the pin layouts for the DIN-8 connector and port of
the RS-232 Terminal port.
Figure 101. RS-232 Terminal Port Pinouts
Table 34 lists the pin signals for the RS-232 Terminal port.
4 Pair 3 +
5 Pair 3 -
6 Pair 2 -
7 Pair 4 +
8 Pair 4 -
Table 33. 10/100/1000Base-T Management Port Pinouts at 1000 Mbps
Table 34. RS-232 Terminal Port
Pin Signal
1 NC
2 DTR
3 TX
4 RX
5 DSR
6 GND
7 RTS
8 CTS
1 2
3 4 5
6 7 8
2 1
3
4
5
6
7
8
