Chapter 15: Installing the Chassis in an Equipment Rack
120 Section II: Installation
The brackets for the AT-MCF2300 Chassis are designed so that you
install the unit flush with the front of the equipment rack or recessed
one or two inches. You can also install the unit so that it extends two
inches from the front of the rack. The various bracket positions are
illustrated in Figure 66; the { } symbols identify the appropriate screw
holes for the different installations.

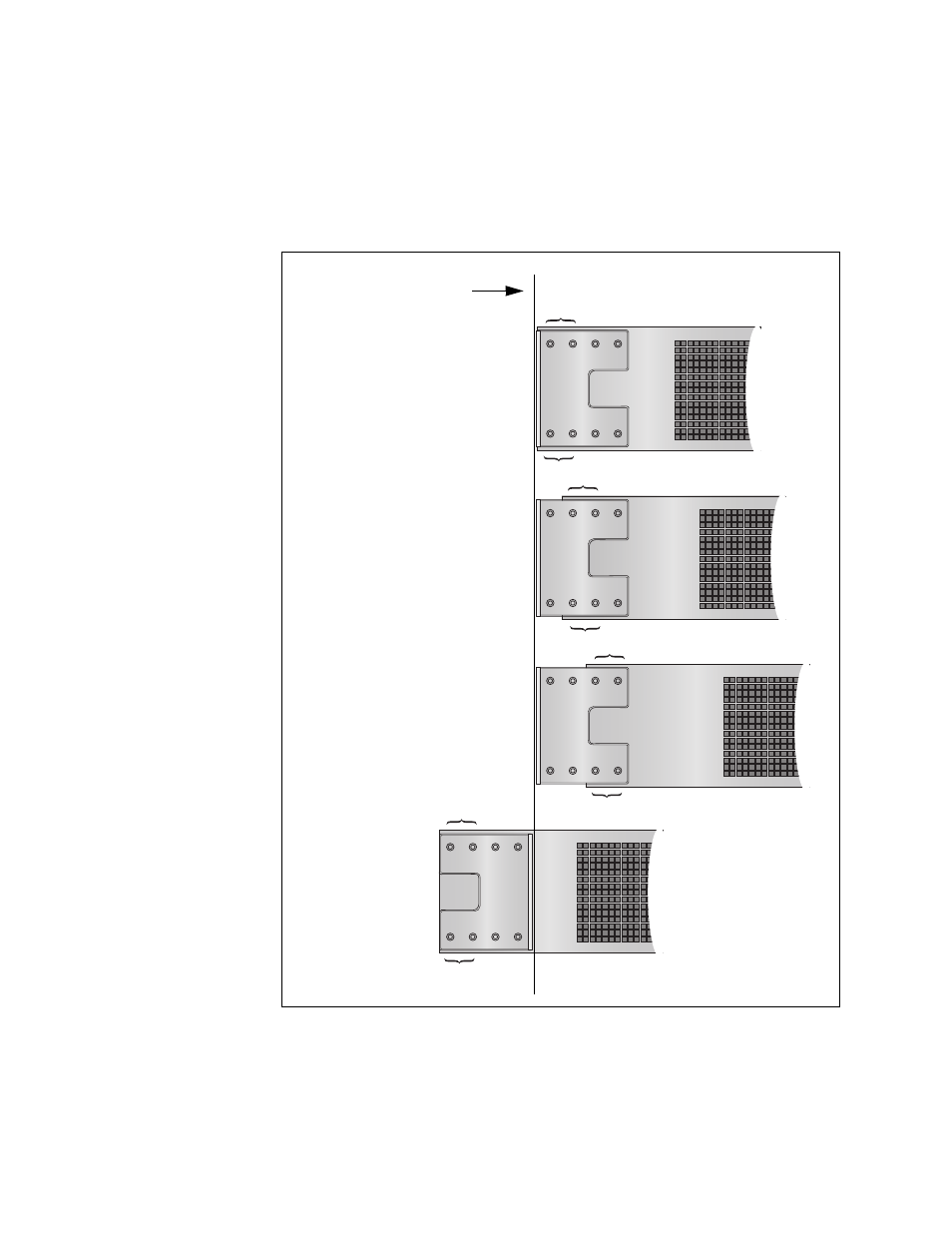

Figure 66. Rack-mount Bracket Positions on the AT-MCF2300 Chassis
1419
Flush with the
front of the rack
Recess 1 inch
Recess 2 inches
Front of rack
Extend 2 inches
