Chapter 24: Replacing the Modules
170 Section II: Installation
3. Slide the new module into position. Light press may be necessary to
firmly seat the module on the connector in the chassis. Then secure
the module by tightening the two captive screws with a cross-head
screwdriver.

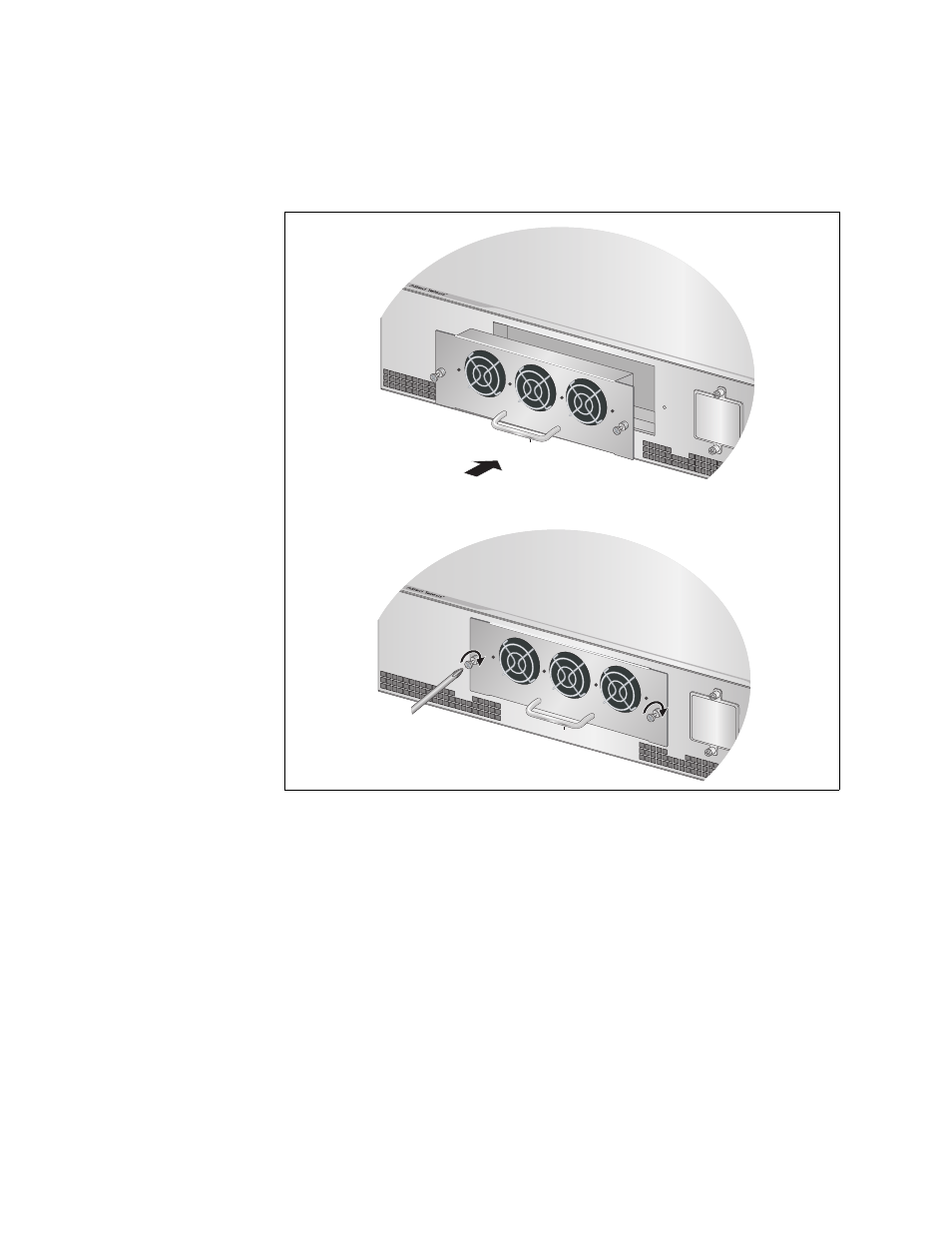

Figure 99. Installing a New AT-MCF2300FAN Module
For instructions on how to verify the operations of the new module, refer to
“AT-MCF2KFAN and AT-MCF2300FAN Modules” on page 140.
AT-MCF
2000
AT-MCF200
0FAN
FAN 1
FAN 2
FAN 3
AT-M CF 200 0
AT-MCF2000F
AN
FAN 1
FAN 2
FAN 3
