Chapter 24: Replacing the Modules
168
Section II: Installation
Replacing the AT-MCF2300FAN Module
Caution
Do not operate the AT-MCF2300 Chassis without the
AT-MCF2300FAN Module. Otherwise, the chassis may overheat,
which can damage the modules.
To replace the AT-MCF2300FAN Module in the AT-MCF2300 Chassis:
1. If you used the fan cover to cover a broken fan, remove it from the fan
opening and store it on the right side of the back panel.

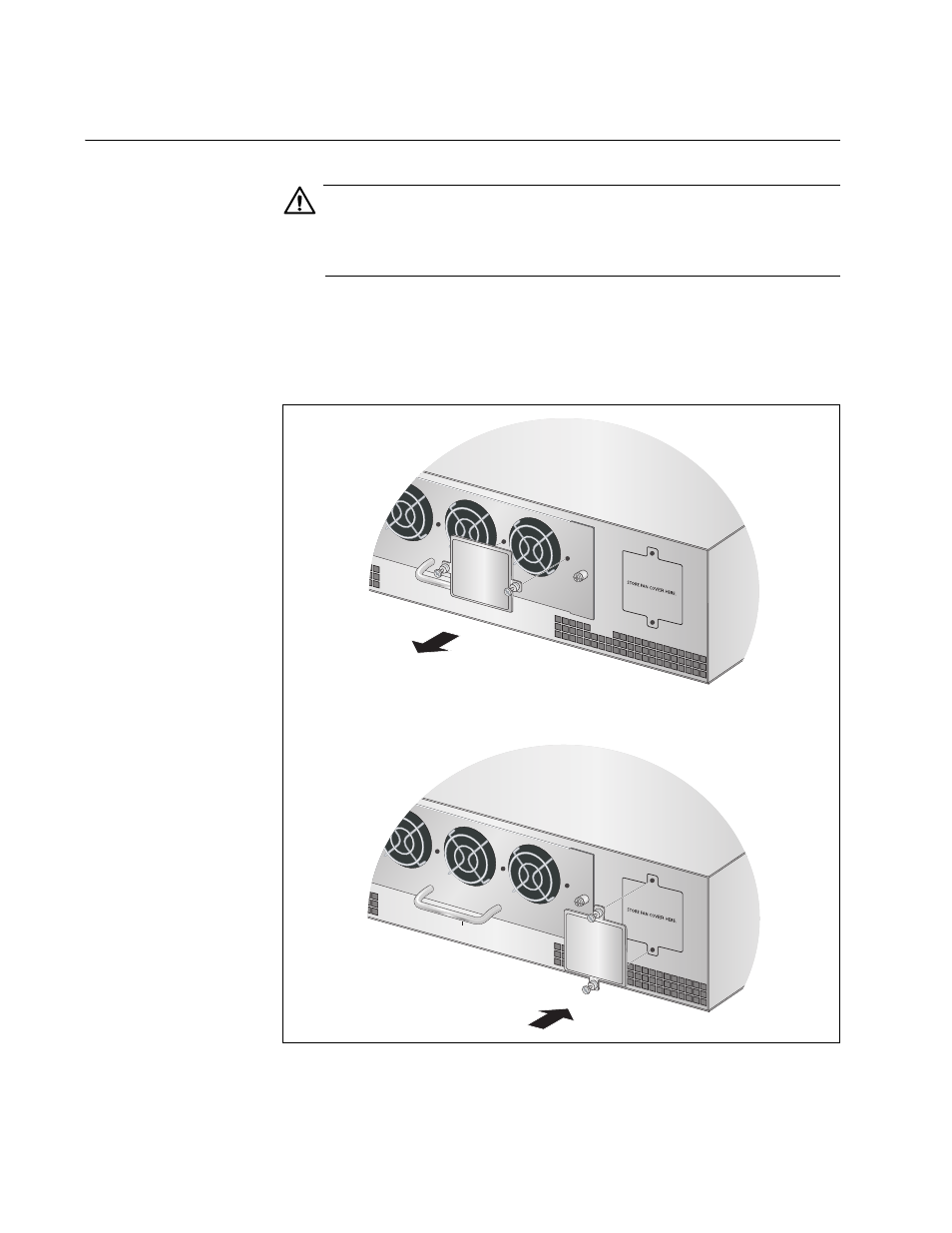

Figure 97. Removing the Fan Cover
000FAN
FAN 1
FAN 2
FAN 3
000FAN
FAN 1
FAN 2
FAN 3
