Section II: Installation 115
Chapter 14
Installing the AT-MCF2000S Stacking
Module
Note
Because the AT-MCF2000S Stacking Module supports hot-
swapping, you can install it while the chassis is powered on.
Caution
The module is sensitive to and can be damaged by electrostatic
discharge. Wear a grounding device and observe electrostatic
discharge precautions when installing the module in the chassis.
This procedure uses the AT-MCF2000 Chassis for illustration purposes.
For the location of the Management slot on the AT-MCF2300 Chassis,
refer to Figure 3 on page 29.
To install the optional AT-MCF2000S Stacking Module:
1. Using a cross-head screwdriver, loosen the two captive screws that
secure the blank panel over the Management slot and remove the
panel from the chassis.

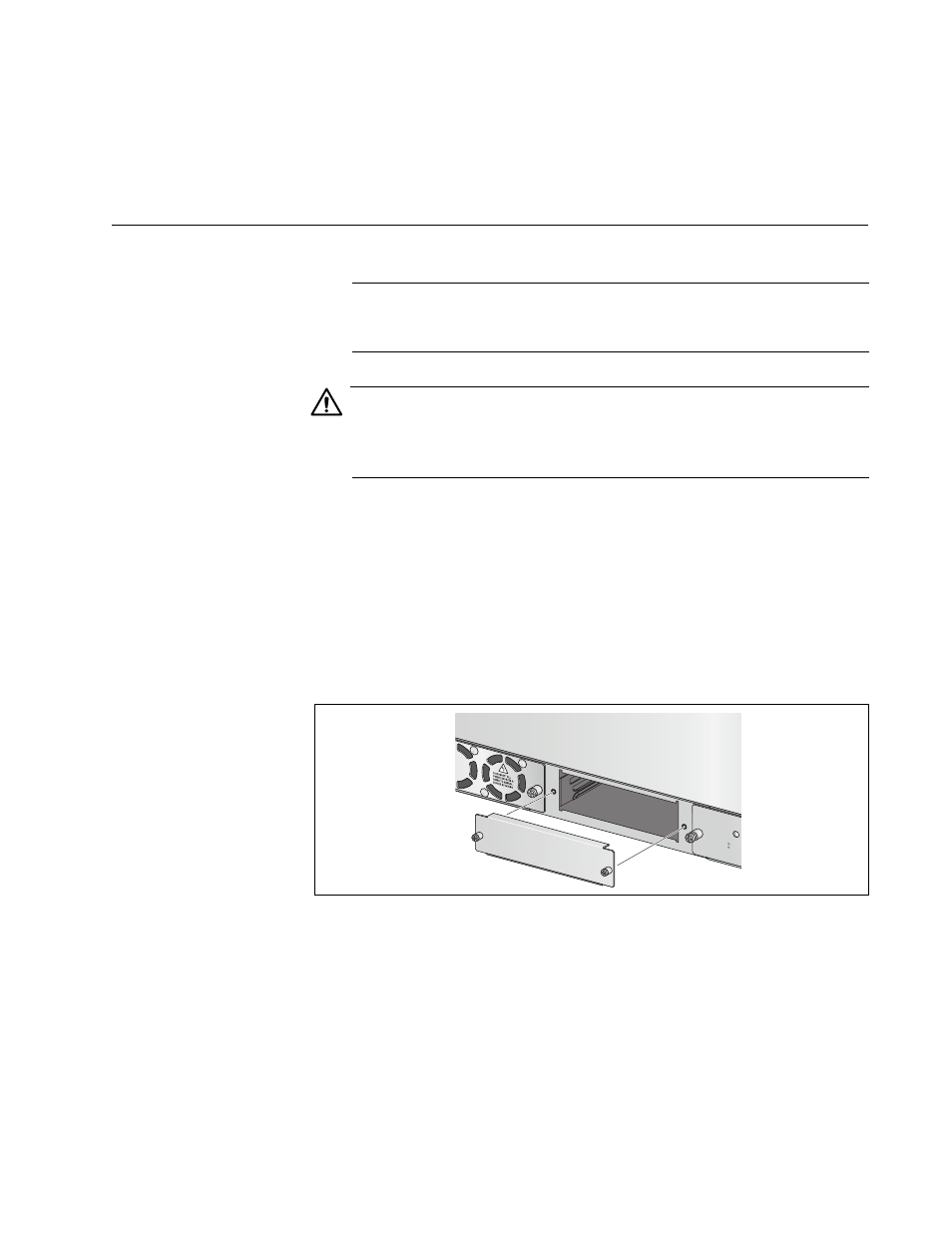

Figure 59. Removing the Blank Panel from the Management Slot
AT-MC
F2KF
AN
NORM A FAULT
STATU S
AT-MCF
2KP NL3
