Allied Telesis AT-MCF2300 User Manual
Page 163
AT-MCF2000 Media Converter Series Installation Guide
Section II: Installation
163
4. If you are not installing a replacement module, position the
AT-MCF2KPNL3 Slot Cover and secure it with the two captive screws.

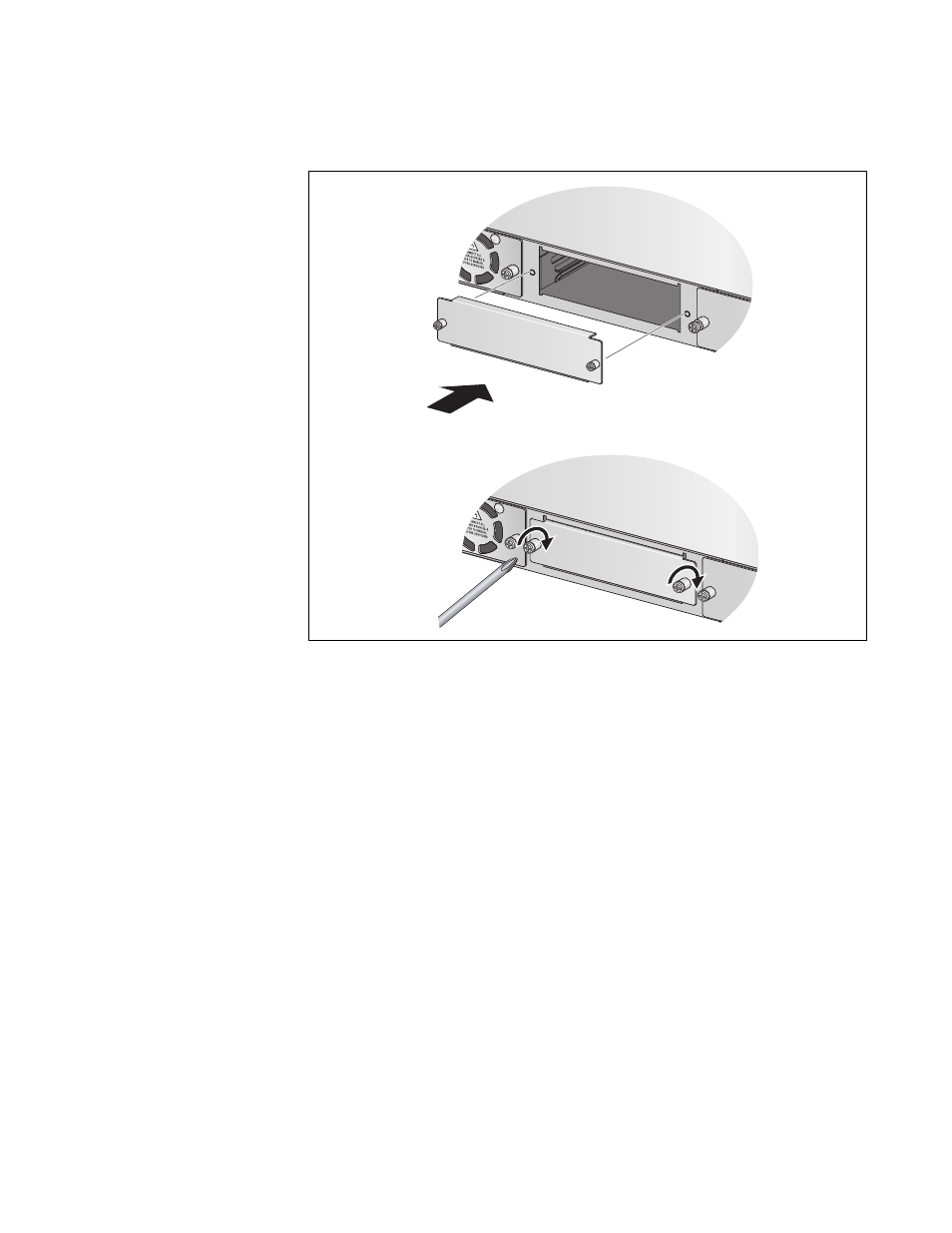

Figure 92. Installing the AT-MCF2KPNL3 Slot Cover on the Management
Slot
AT-MCF2KF
AN
NORM
A
FAULT
STATU
AT-MCF2KPNL3
AT-MCF2K
FAN
NORM
A
FAULT
STAT
U
AT-MCF2KPNL3
