Section II: Installation 107
Chapter 12
Installing a Media Converter Module
Note
The media converter modules support hot swapping. The chassis
can be powered on when you install a media converter module.
Note
There are no adjustable switches on the circuit boards of the media
converter modules.
Caution
A media converter module is sensitive to and can be damaged by
electrostatic discharge. Wear a grounding device and observe
electrostatic discharge precautions when installing the module in the
chassis.
This procedure uses the AT-MCF2000 Chassis for illustration purposes.
For the locations of the slots for the media converter modules in the
AT-MCF2300 Chassis, refer to Figure 3 on page 29.
To install the AT-MCF2012LC, AT-MCF2012LC/1 or AT-MCF2032SP
Media Converter Module:
1. Using a cross-head screwdriver, remove the AT-MCF2KPNL1 blank
panel from a media converter slot on the front panel of the chassis.

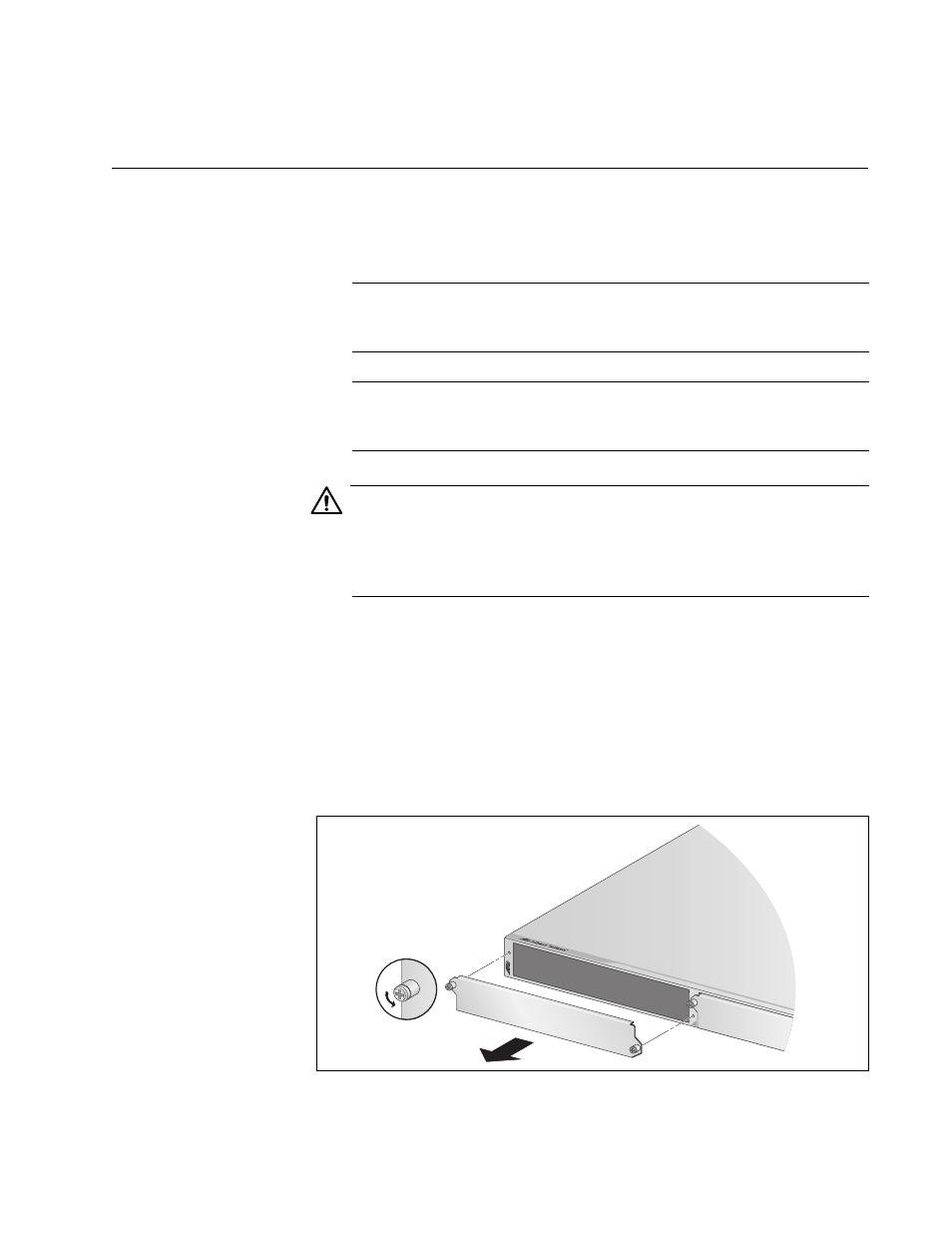

Figure 50. Removing a Blank Cover from a Media Converter Slot
AT-MCF2
000
1
1120-a
