Chapter 1: AT-MCF2000 Multi-channel Media Converter Series
22 Section I: Features
Hardware Components
Table 1 lists the hardware components that comprise the AT-MCF2000
Media Converter Series.

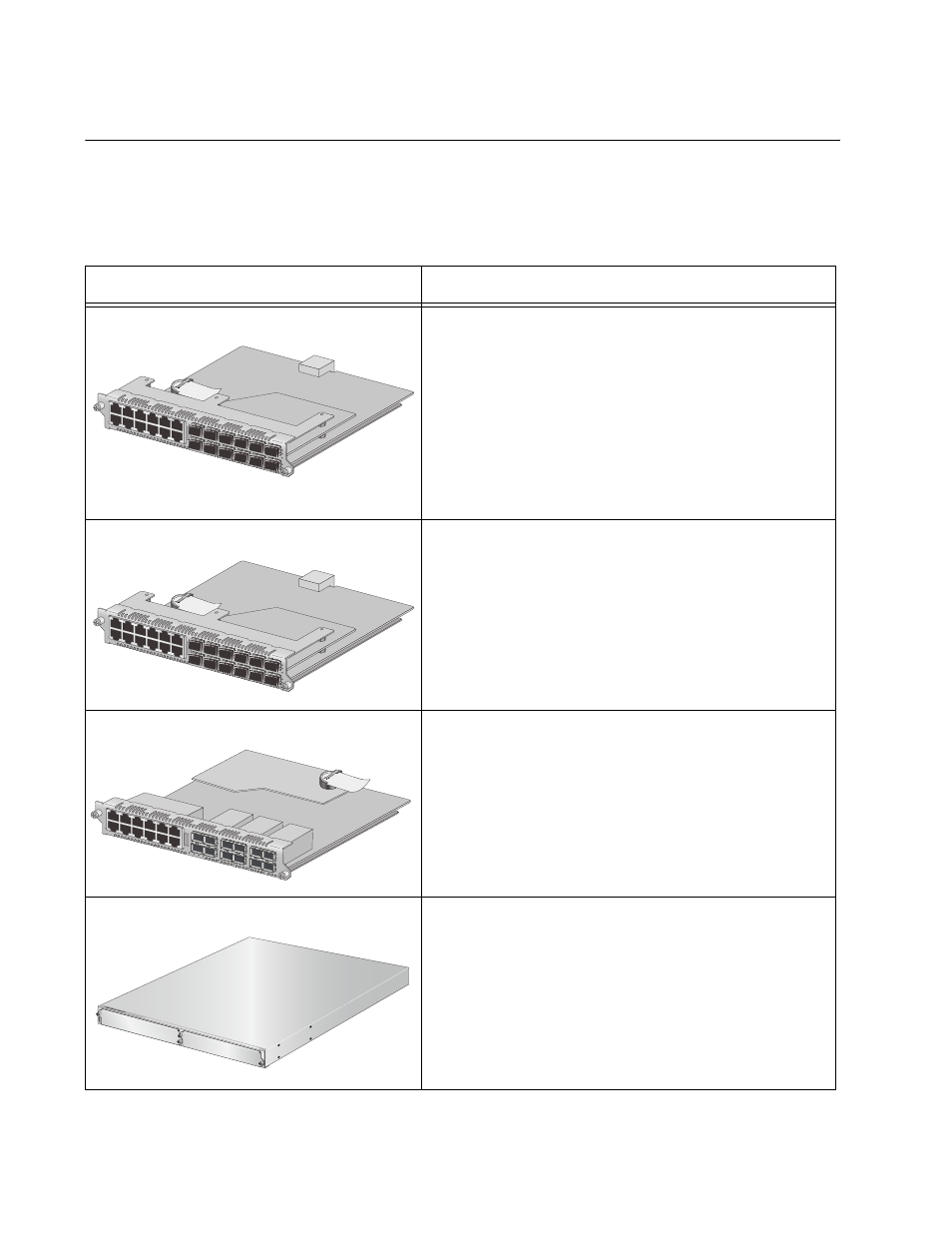

Table 1. Hardware Components
Component Description
AT-MCF2012LC This is a Fast Ethernet media converter module. It
has twelve independent channels that transfer
network traffic between twisted pair cables and fiber
optic cables. Each channel has one 10/100Base-TX
twisted pair port and one 10/100Base-FX fiber optic
port. The fiber optic ports have a maximum
operating distance of 2 km (1.24 mi.) in full-duplex
mode, feature duplex LC connectors, and use 50/
125 µm or 62.5/125 µm (core/cladding) multimode
fiber optic cable.
AT-MCF2012LC/1 This is also a Fast Ethernet media converter
module. It has twelve independent channels that
feature 10/100Base-TX twisted pair ports and
100Base-FX fiber optic ports. The fiber optic ports
on this module have a greater operating distance, up
to 20 kilometers (12.4 mi.) in full-duplex mode, than
the ports on the AT-MCF2012LC Module and use
9/125 µm single-mode fiber optic cable.
AT-MCF2032SP This is a Fast and Gigabit media converter module.
Each of the twelve channels on this module has a
10/100/1000Base-T twisted pair port and an SFP
slot that supports either a 100Base or a 1000Base
fiber optic SFP module. The SFP slots let you
customize the channels for different operating
distances. For the list of supported SFP modules,
contact your Allied Telesis sales representative.
AT-MCF2000 This 1U chassis has slots for two 12-channel media
converter modules, primary and redundant power
supplies, and the optional management or stacking
module.
