Section II: Installation 123
Chapter 16
Grounding the AT-MCF2300 Chassis
If you installed the AT-MCF2300 Chassis in an equipment rack, perform
this procedure to ground the unit. This procedure requires these items:
ˆ Phillips head No. 2 screwdriver
ˆ 10 AWG solid wire (The length of the wire will depend on your
installation.)
ˆ Crimping tool
ˆ Grounding lug (included with the chassis)
To ground the AT-MCF2300 Chassis:

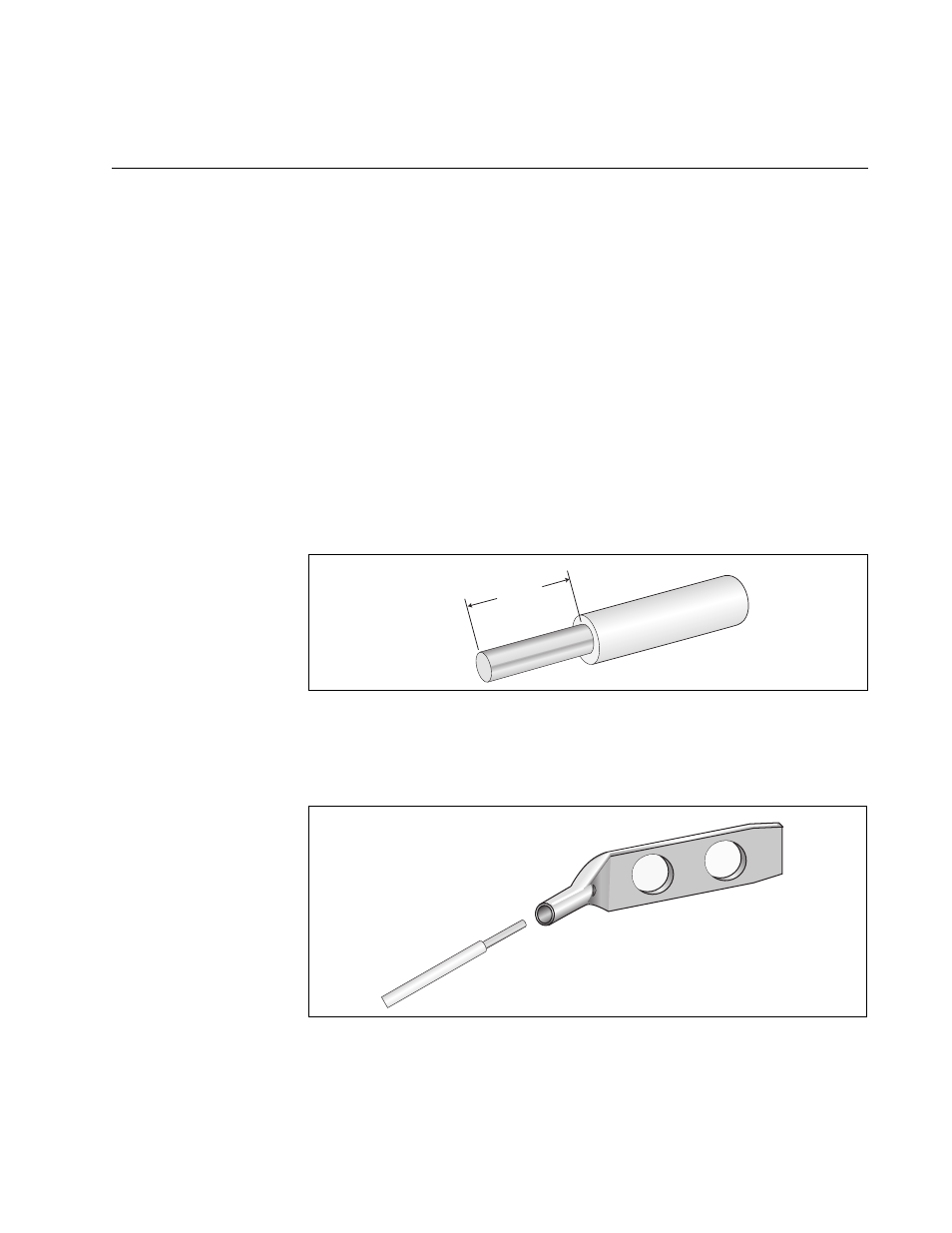

1. Strip the grounding wire as shown in Figure 68.
Figure 68. Stripping the Grounding Wire
2. Use a crimping tool to attach the wire to the grounding lug included
with the chassis.
Figure 69. Attaching the Grounding Wire to the Grounding Lug
3. Remove the two grounding lug screws from the lower left corner on the
back panel of the chassis.
11mm ±1mm
(0.44in. ±0.0 3 in.)
