Chassis ID Jumper
The circuit board of the module has a jumper for setting the chassis ID
number for the stacking feature. The jumper has two settings, 0 and 31.
The default setting is 0. For more information, refer to “Chassis ID
Numbers” on page 79.

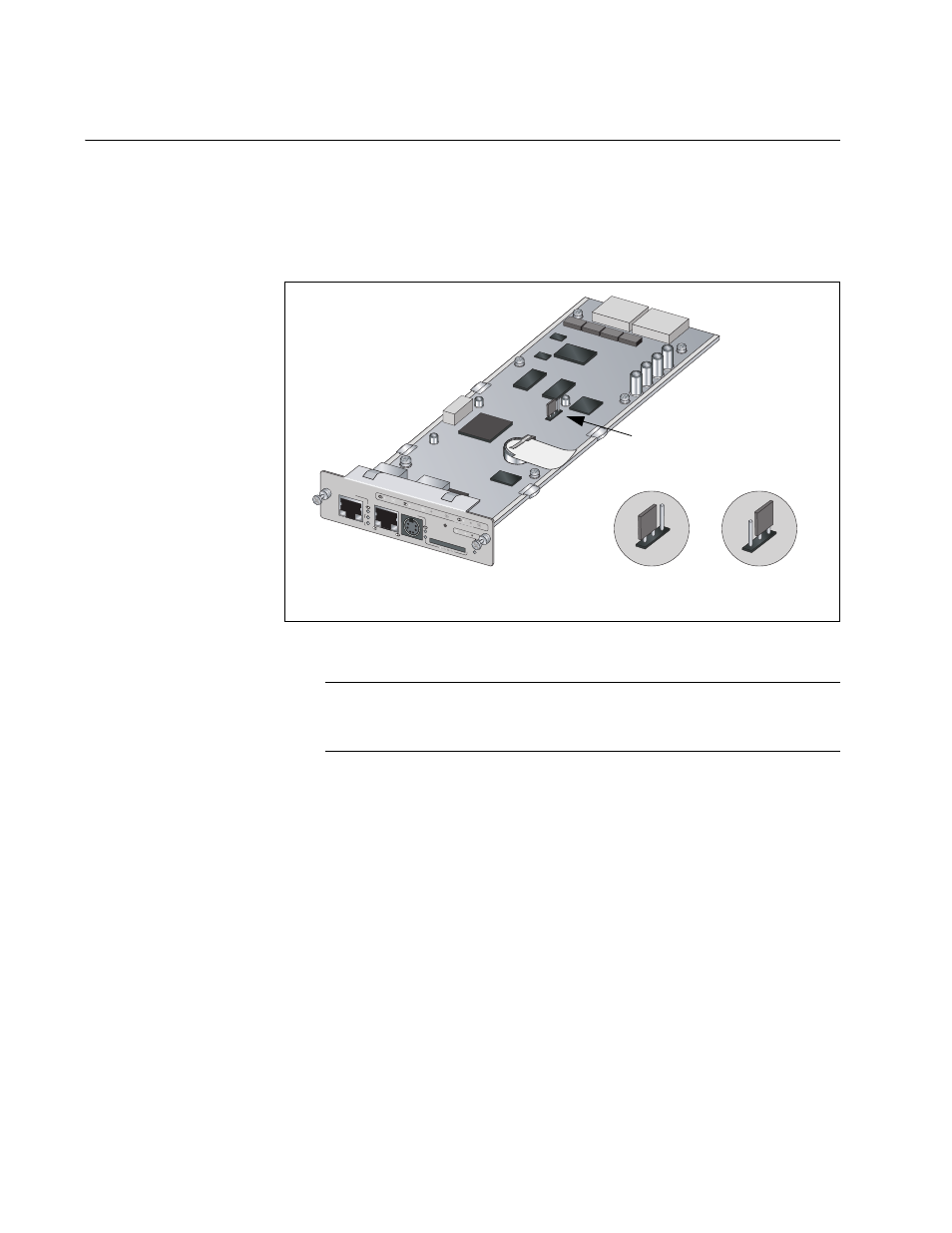

Figure 27. Chassis ID Jumper
Note
You cannot change the chassis ID number with the AT-S97
Management Software.
