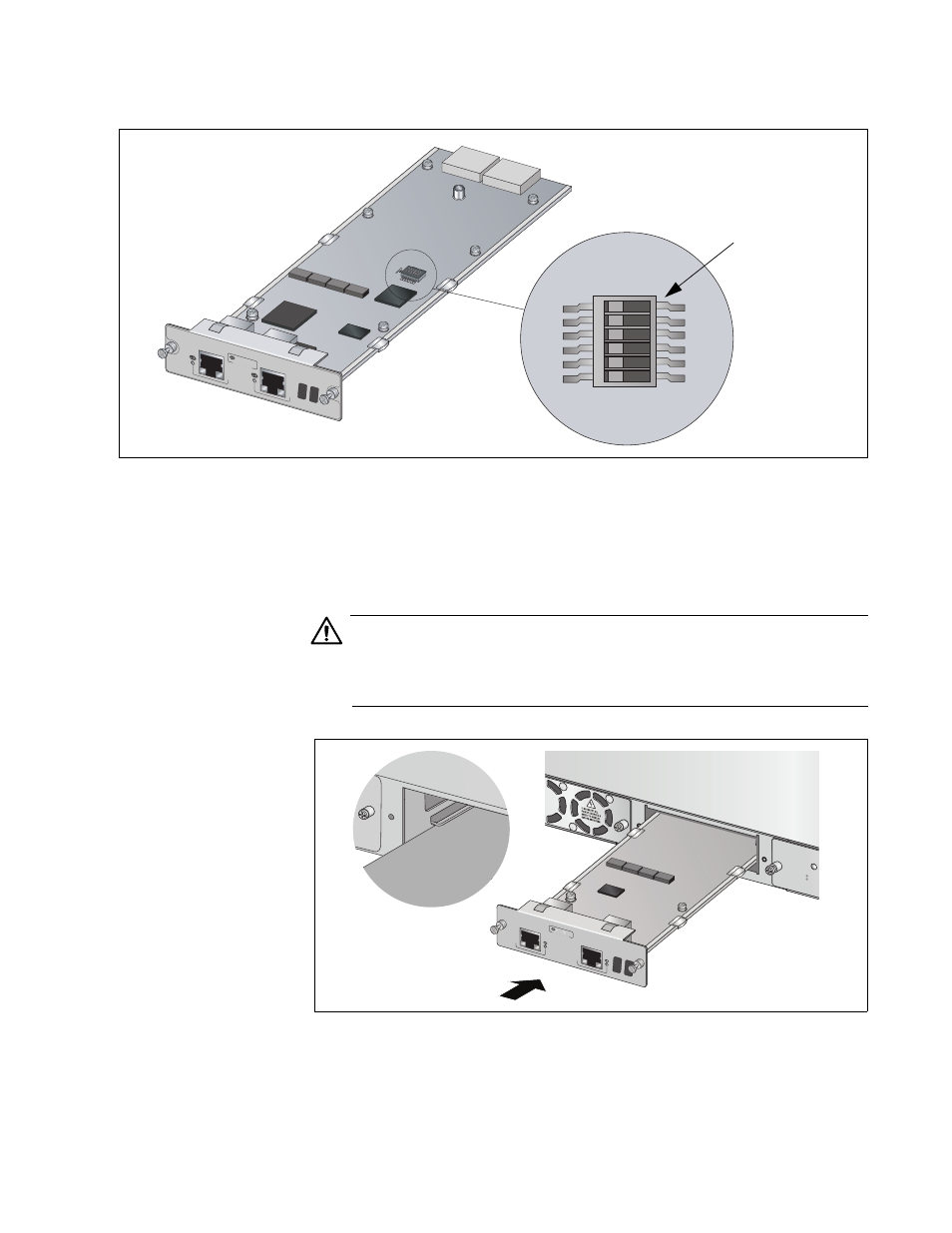

Figure 60. Setting the Chassis ID DIP Switches
4. Align the edges of the module with the guides in the slot and carefully
slide the module into the chassis until it is flush with the front of the
chassis. Light pressure may be necessary to firmly seat the module on
the connector on the back panel in the chassis.
Caution
Do not force the module into place. If there is resistance, remove the
module and before reinserting it, verify that the edges of the card are
properly aligned in the guides in the module slot.
Figure 61. Installing the AT-MCF2000S Stacking Module
