AT-MCF2000 Media Converter Series Installation Guide
Section II: Installation
167
6. If you are not installing a replacement module, position the
AT-MCF2KPNL2 Slot Cover and secure it with the two captive screws.

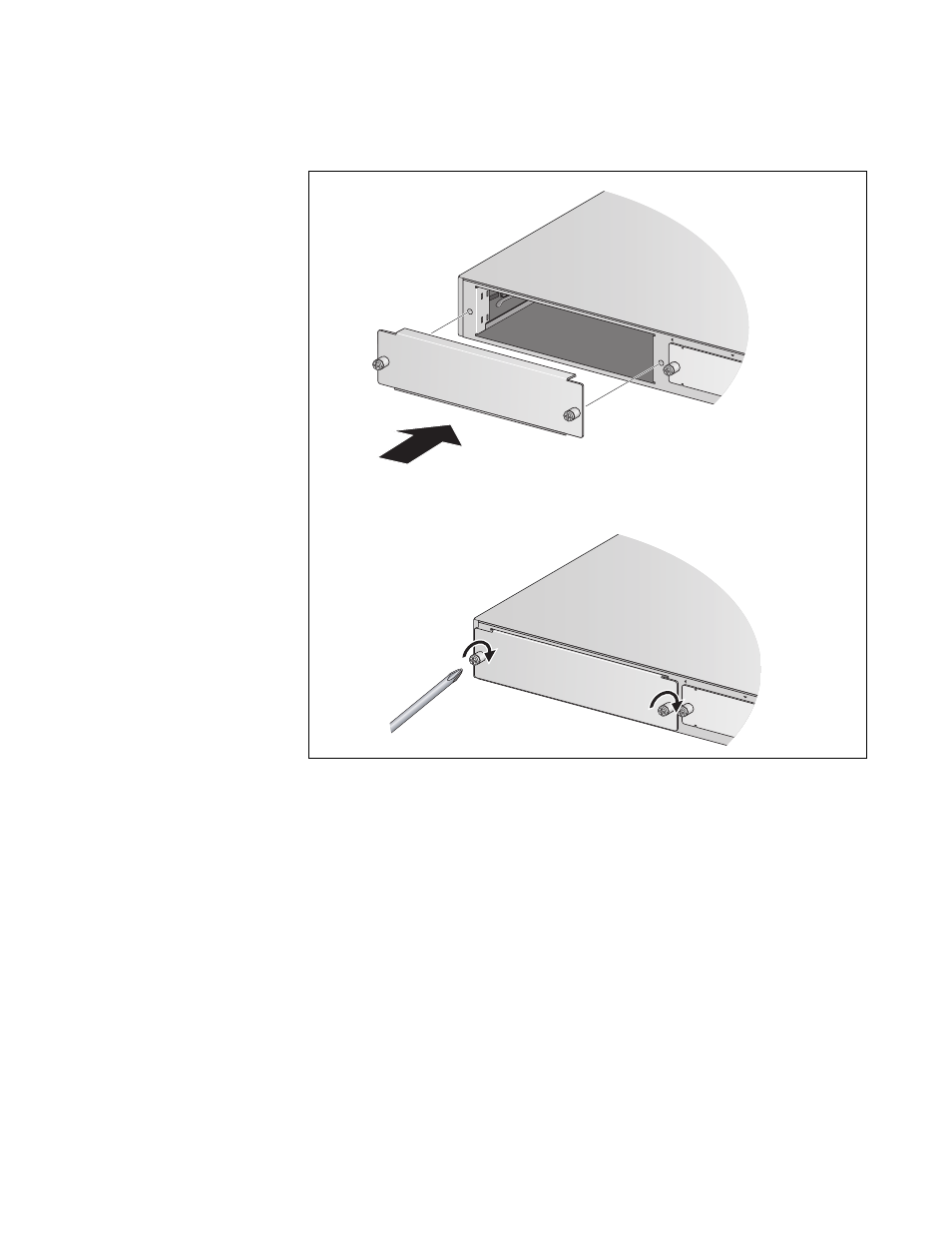

Figure 96. Installing the AT-MCF2KPNL2 Slot Cover over the Power
Supply Slot
AT-MCF2KPNL3
MA
A
AT-MCF2KPNL2
AT-MCF2KPN
L3
MA
A
AT-MCF2KPNL
2
