AT-MCF2000 Media Converter Series Installation Guide
Section II: Installation 113

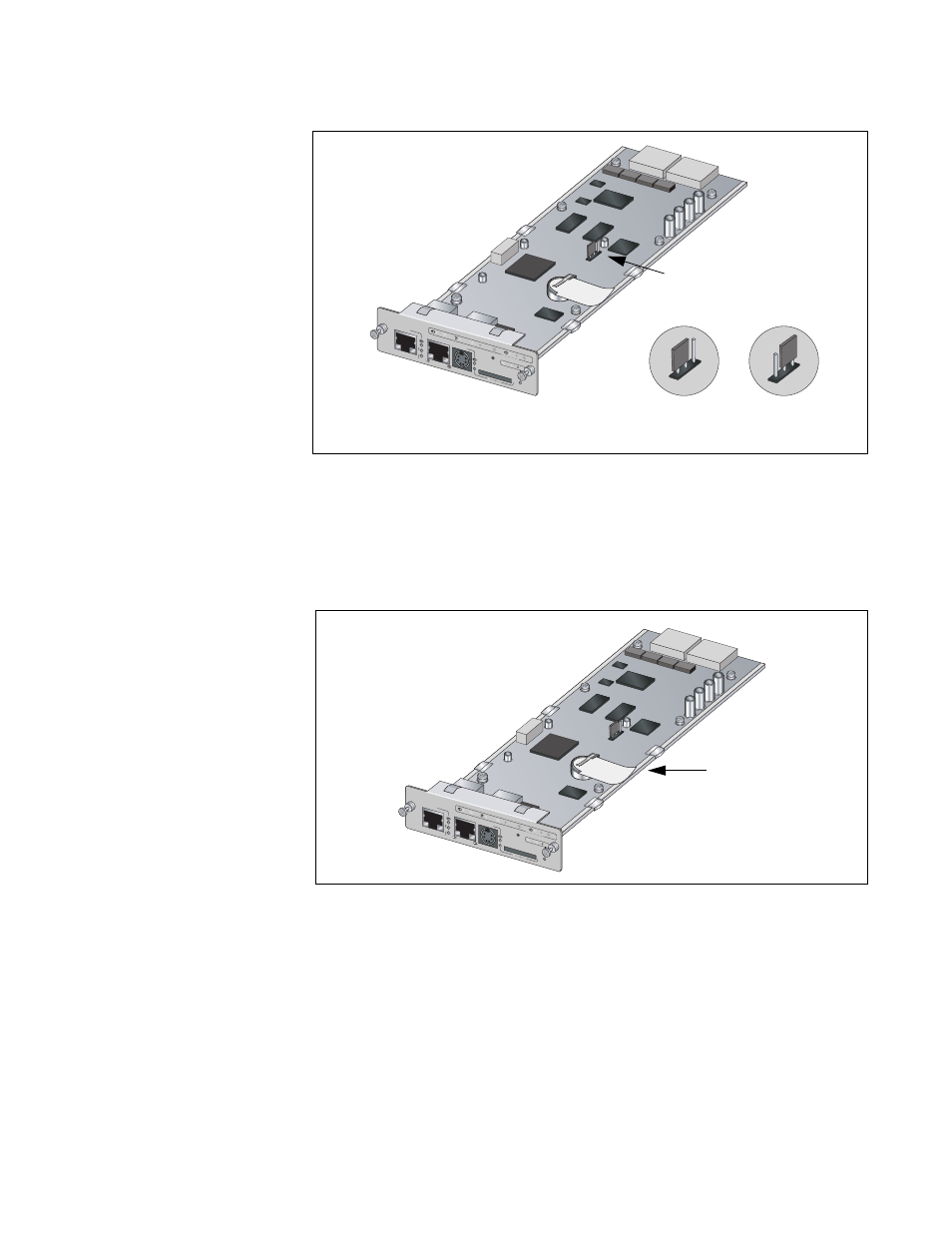

Figure 55. Setting the Chassis ID Jumper on the AT-MCF2000M
Management Module
4. Remove the insulator labelled “REMOVE BEFORE INSTALL” from the
battery on the management module by sliding it out from beneath the
battery clip.
Figure 56. Removing the Battery Insulator
AT-MCF2000M
STAC K
MANAG EMENT
TERMIN AL
10/100/1000 BASE-T
RS-232
RESET
SD
RDY BUSY MASTE R POWER
BOOT RDY FAULT
1000 L INK ACT 10/100 LINK ACT
FDX HDX COL
LINK ACT
POR T ACT IVITY
1422
0
31
ID
Chassis ID 0
(Default)
Chassis ID 31
Chassis ID Jumper
AT-MCF200
0M
STAC K
MAN AGEMENT
TERMINAL
10/100/1 000BAS E-T
RS-232
RESET
SD
RDY BUSY MASTER
POWER
BOOT RDY FAULT
1000 LIN K ACT 10/100 LINK
ACT
FDX HDX COL
LINK ACT
PORT A CTIVITY
1423
0
31
ID
Battery
Insulator
