AT-MCF2000 Media Converter Series Installation Guide
Section II: Installation 105
3. Position the module as shown in Figure 48 and slide it into the slot until
it is flush with the chassis. You may need to exert light pressure to seat
the module on the connector on the back panel in the chassis.
Caution
To avoid damaging the connector pins on the backplane, do not
force the module into place.

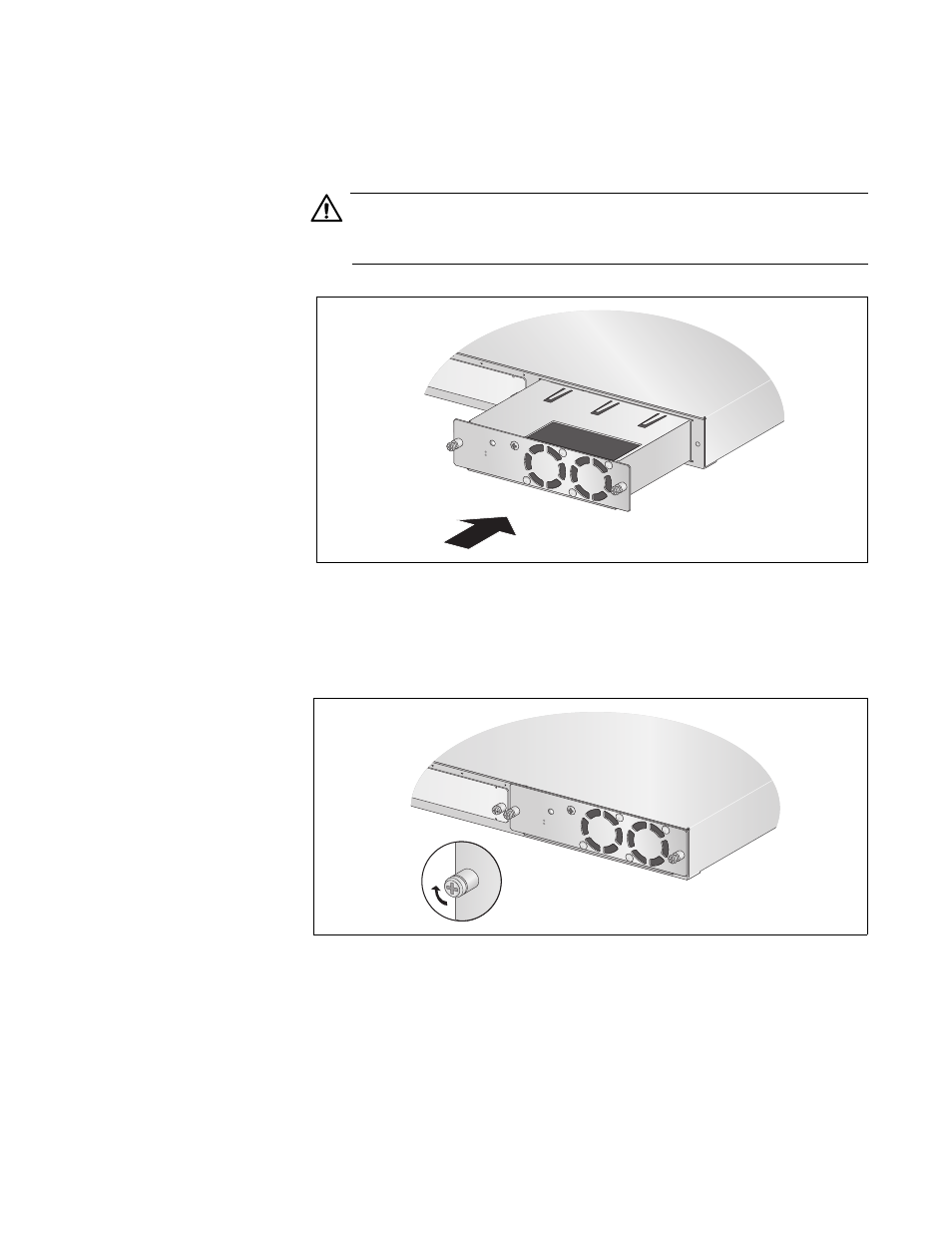

Figure 48. Installing the AT-MCF2KFAN Fan Module
4. Secure the fan module to the chassis by tightening the two captive
screws on the module using a cross-head screwdriver. Refer to Figure
49.
Figure 49. Securing the AT-MCF2KFAN Fan Module
5. Go to the next chapter to install the media converter modules.
1125-a
MANA GEM ENT
B
AT-MCF2KF
AN
NORM AL FAU LT
STATUS
1125- b
AT-MCF2KF
AN
NORM AL FAULT
STAT US
MANAG
EMEN T
B
