Section II: Installation 103
Chapter 11
Installing the AT-MCF2KFAN Module
Caution
To maintain adequate airflow and cooling, the AT-MCF2000 Chassis
must have either two AT-MCF2000AC Power Supply Modules or
one AT-MCF2000AC Module and one AT-MCF2KFAN Module.
The AT-MCF2300 Chassis comes with the preinstalled AT-MCF2300FAN
Module and does not use the AT-MCF2KFAN Module.
The AT-MCF2KFAN Module supports hot swapping and can installed or
replaced while the chassis is powered on.
To install the AT-MCF2KFAN Module:
1. Remove the AT-MCF2KPNL2 blank panel from one of the power
supply slots on the back panel of the AT-MCF2300 Chassis by
loosening the two captive screws on the panel with a cross-head
screwdriver. The fan module can be installed in either of the power
supply slots.

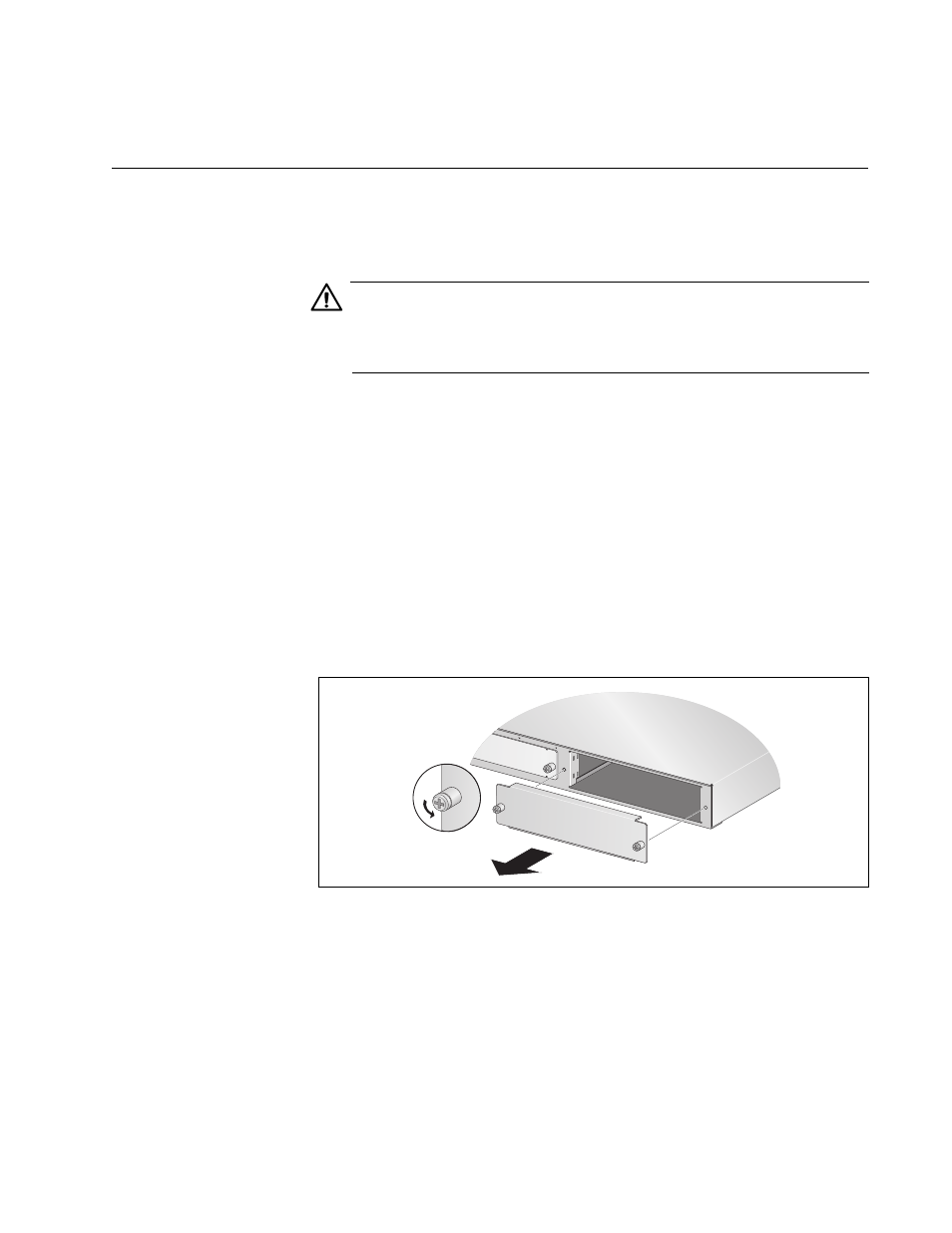

Figure 47. Removing the Cover from a Power Supply Slot
1125c
MANA GEME NT
B
AT-MCF2KPNL2
