Section II: Installation 143
Chapter 22
Starting a Local Management Session
To start a local management session on the optional AT-MCF2000M
Management Module:
Note
The initial management of the AT-MCF2000M Management Module
has to be from a local management session.
1. Connect the DIN-8 connector on the RS-232 Serial Management cable
included with the AT-MCF2000M Management Module to the RS-232
Terminal port on the management module.

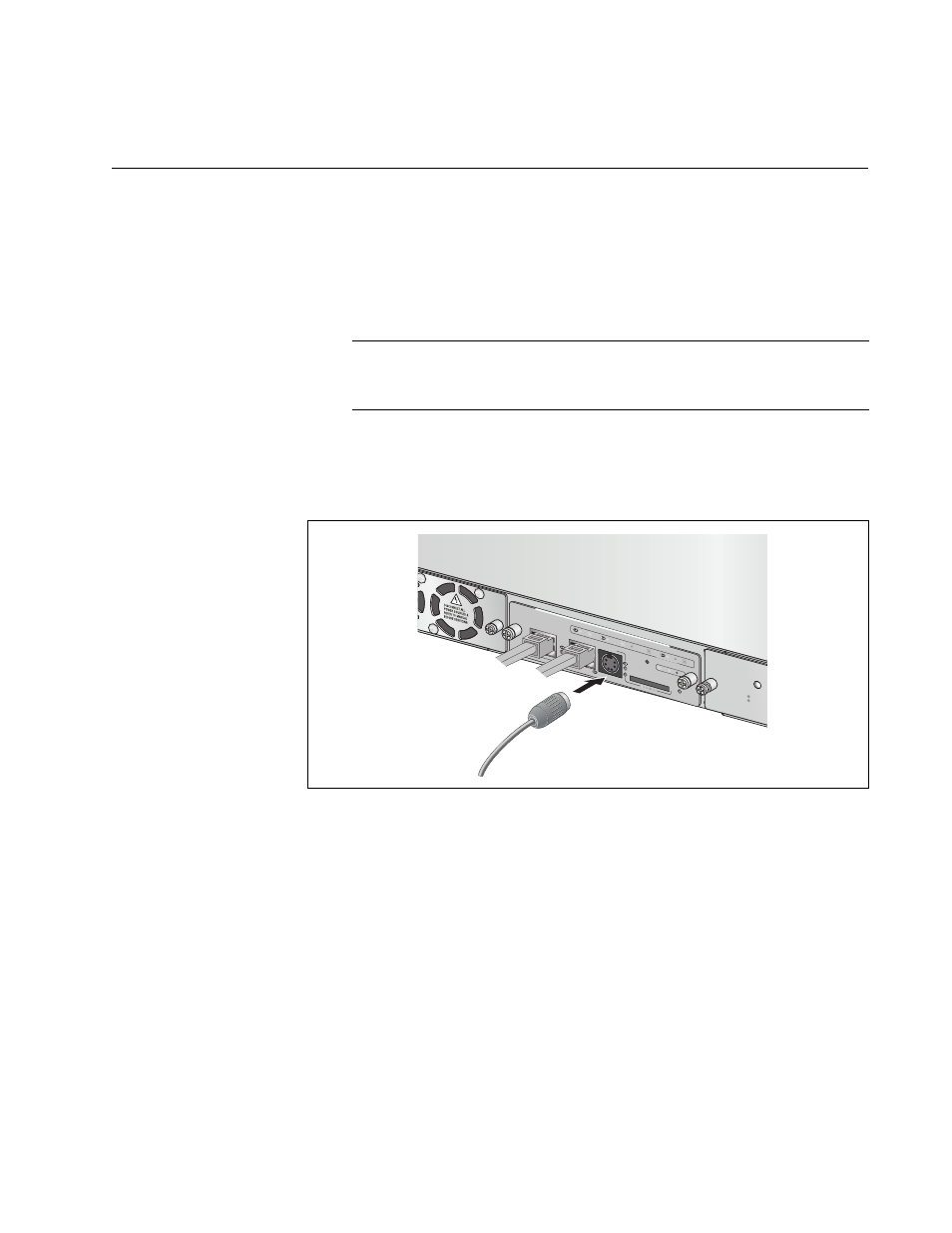

Figure 82. Connecting the RS-232 Serial Management Cable to the RS-
232 Terminal Port
2. Connect the DB-9 connector on the management cable to an RS-232
port on a terminal or a PC with a terminal emulator program.
3. Configure the terminal or terminal emulator program as follows:
❒
Baud rate: 115200 bps (The baud rate of the RS-232 Terminal port
is adjustable from 9600 to 115200 bps. The default is 115200 bps.
To adjust the baud rate, refer to the AT-S85 and AT-S97
Management Software Command Line User’s Guide.)
❒
Data bits: 8
❒
Parity: None
