56

HP VMA SAN Gateway User’s Guide

AM456-9026A

You can also choose to view the aggregate data (A+B) from both SAN Gateway nodes, or view data

for the nodes separately (A, B). If you select the A only or B only option, only the data for that

particular node is shown.

To customize the data output display, do the following:

1.

Select Monitor > Overview. The Monitoring page appears.

2.

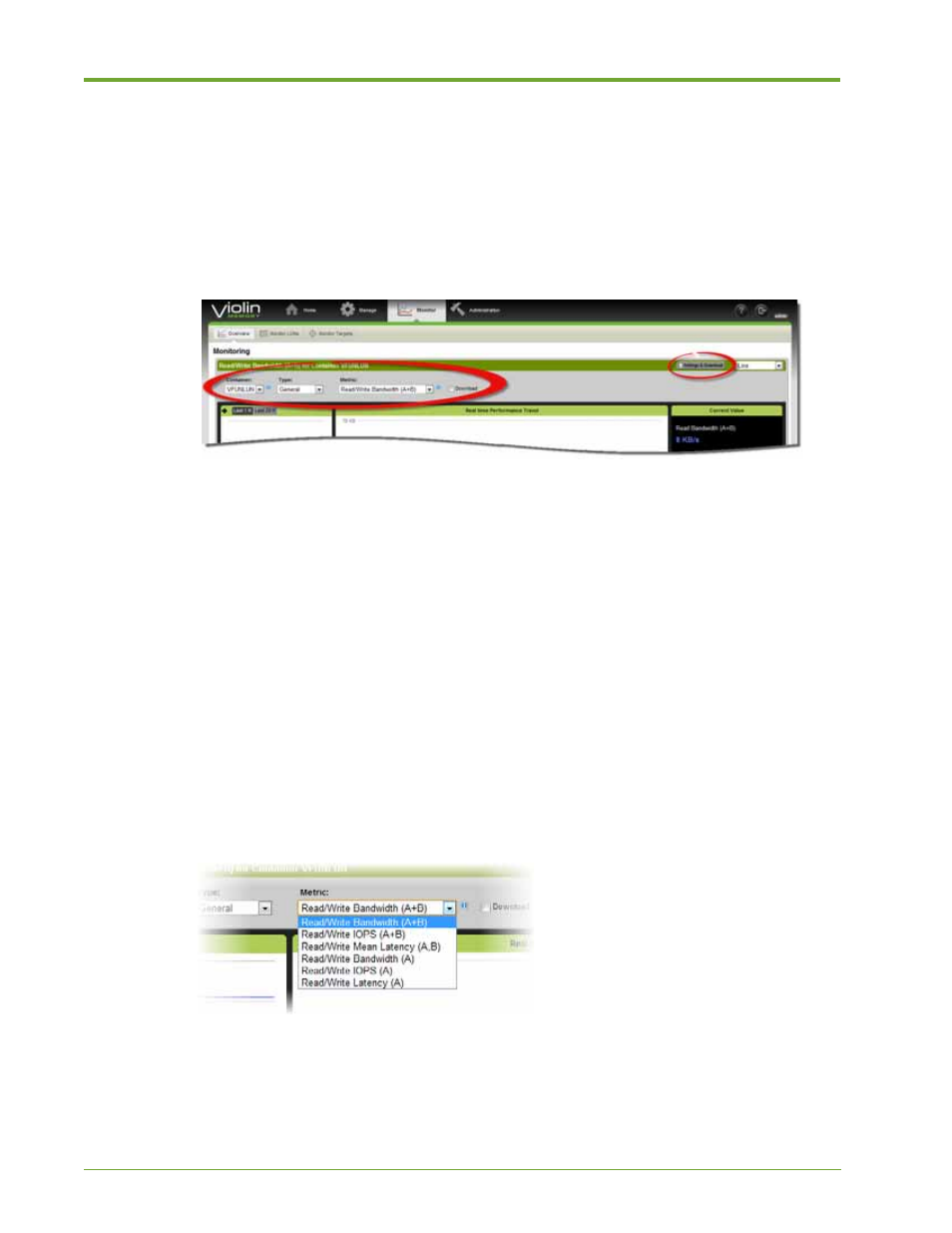

Click Settings & Download. The panel expands to show the following options.

3.

Select a Container name from the drop-down list to display its data.

4.

Select the Type of information to display from the drop-down list.

General—Monitors data for all ports.

LUN—Monitors data for a specific LUN.

Fibre Channel—Monitors data for Fibre Channel ports.

For more information, see

Monitoring Container, LUN, and Port Data

on page 57.

5.

Select a Metric display type from the drop-down list, as shown in the following example.

A+B shows aggregated data for both Gateway nodes.

A, B shows data separately for both Gateway nodes.

A only shows data for the Gateway master node. B only shows data from the standby node.

The results appear in the Current Value panel on the right.

6.

Choose an option from the drop-down list to customize the graph display. The Real-Time

Performance Trend display changes accordingly.
