User Interface Overview

The streamlined HP VMA Web Interface includes the following interactive components, as shown

in

Figure 2.1

:

Main Menu Bar—Displays clickable icons for the major functional categories: Home,
Manage, Monitor, and Administration.

Function Menu Bar—Changes to display the options for the currently active category. Click an
icon to display the associated page and submenu options.

Online Help—Brings up context-sensitive help for the currently active page.

Session—Shows the user name of the current user at the right, and exits the session when
clicked.

Copyright—Displays the current copyright information.

Board Status Tab—Expands to show board status information when clicked. Click the tab
again to hide the board status page.

Software Version—Displays the version of the software currently running on the SAN
Gateway.

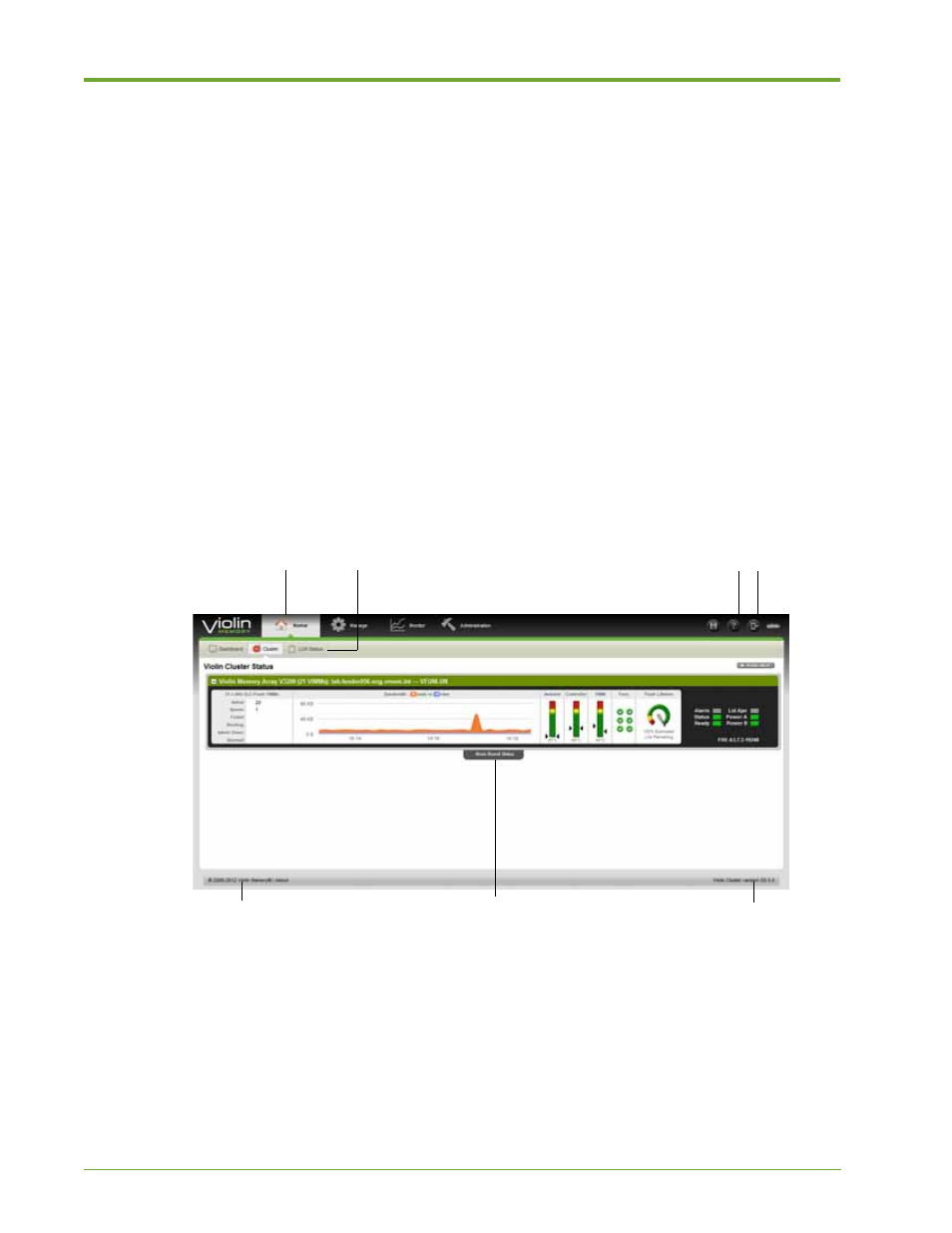

Figure 2.1 HP VMA Web Interface Overview

Main Menu Bar

Function Menu Bar

Copyright

Board Status Tab

Software Version

Online Help Session
