once communications have stopped. Once communications have been
reestablished, the connection background will change back to white.

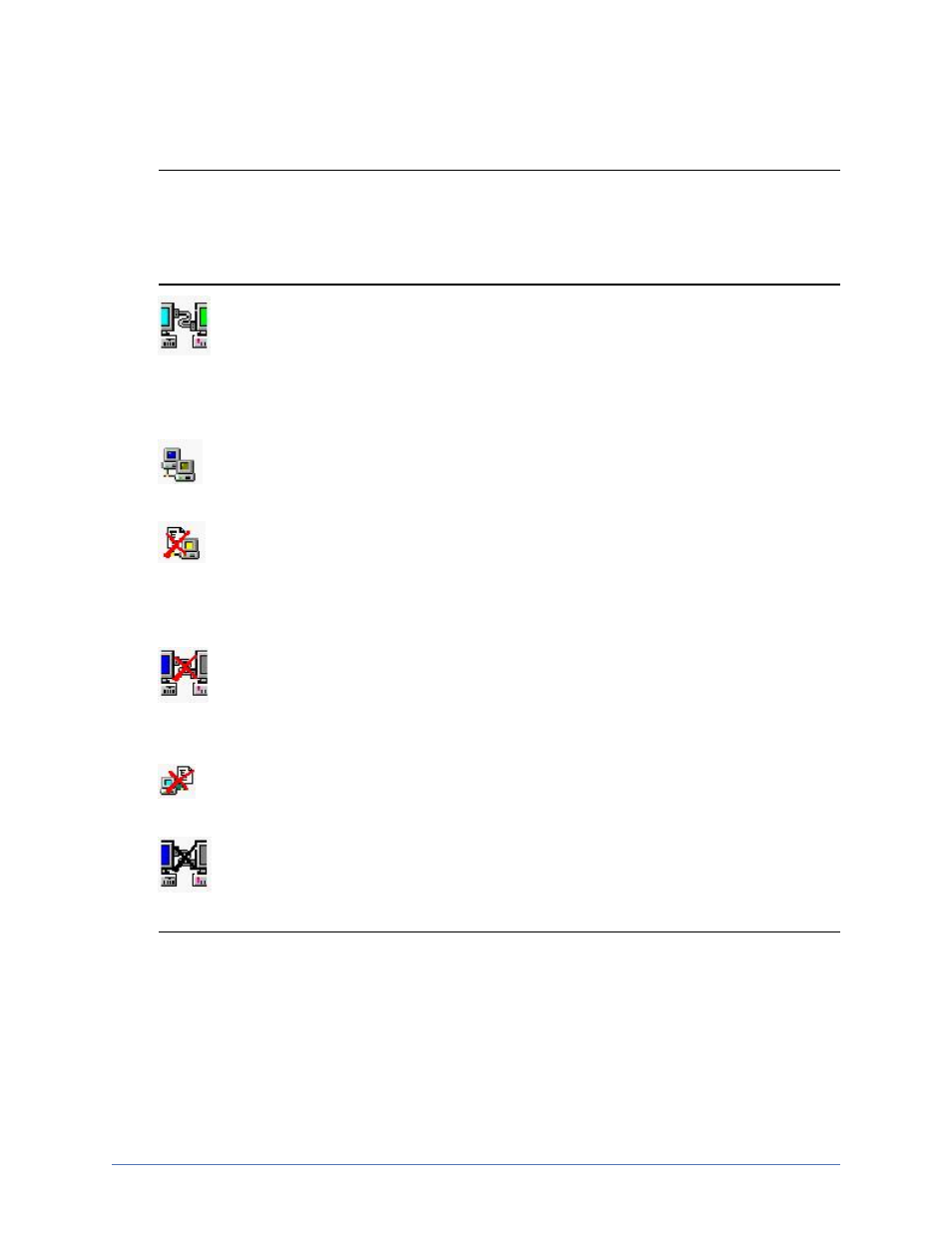

The following icons are displayed in the right pane when a group is highlighted in
the left pane.
—An icon with a network cable between two servers on the right pane
indicates there are no established Storage Mirroring Recover connections to this
server. This icon also indicates that communications between the Replication
Console and the server are working properly.
—An icon with two servers on the right pane indicates this server has active
connections that are working properly.
—A yellow server icon with a red X on the right pane indicates a connection
error. For example, an error may be caused by broken transmission or pending
replication. To determine the exact problem, locate the connection data item that
appears in red.
—An icon with a network cable between two servers and marked with a red
X on the right pane indicates a communication error between the Replication
Console and the server.
—A blue server icon with a red X indicates a restore is required because of a
failover.
—A network cable with a black X indicates the server is not running Storage
Mirroring Recover.
