SYSTEM/DISPLAY CONFIGURATION

91

2. Press the Down key and then

the Left key twice to choose
A-GAIN. Press the Down key.

The A-GAIN setting appears.

HOLD

HOLD

1st display

Shows A-Zero setting

3. Select the setting using the

Up/Down key.

4. Press the Enter key to confirm

your selection. Press the Exit

key to go back to the default
display.

AUTO

ENTER

/ EXIT

SHIFT

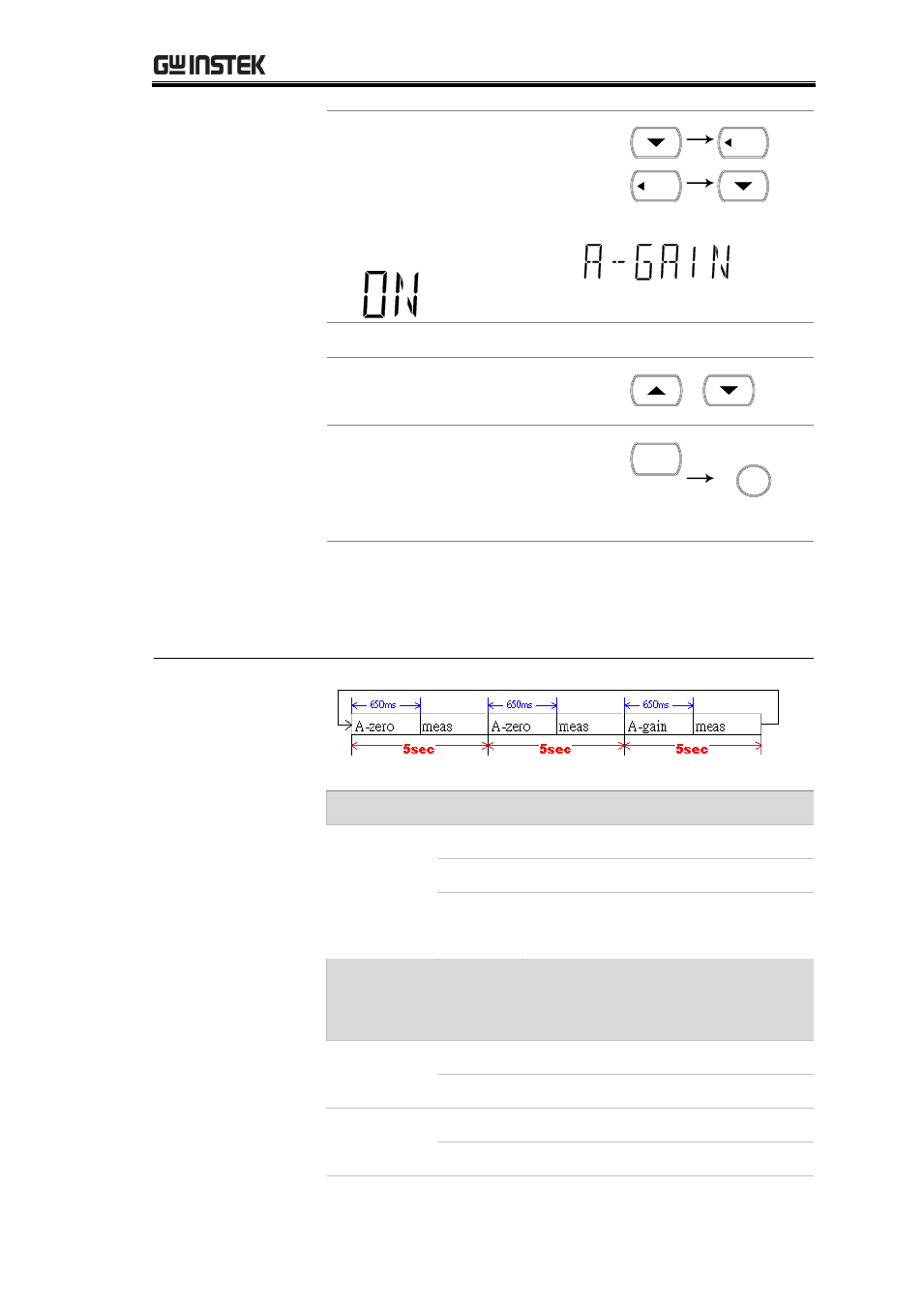

5. A-Zero and A-Gain have an identical time interval

of 5 seconds. As can be seen in the diagram below,
Auto-Gain correction is performed once after

A-Zero has been performed twice.

Expmple
Mode: DCV
Rate: Slow
Accuracy Speed:
650ms

6.

Mode

Rate

Accuracy Speed Quick Speed

DCV, DCI,
4W/2W

S

650ms

495ms

M

217ms

F

70ms

Mode

Rate

Below four measurement modes
don’t support either accuracy or
quick speed.

TC, RTD, S

800ms

M

184ms

Diode, Cont S

140ms

M

80ms
