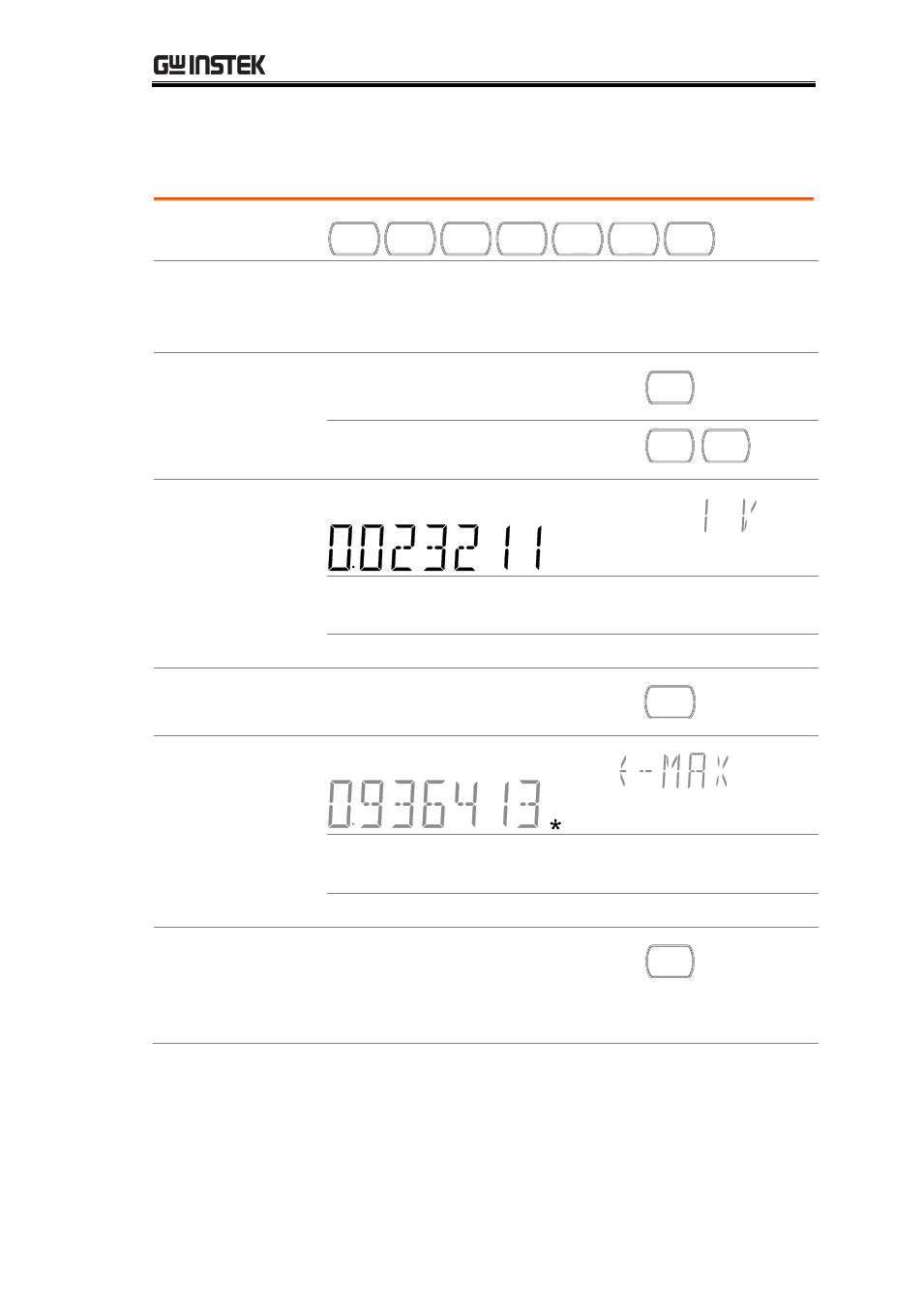

background image

ADVANCED MEASUREMENT

61

Max/Min Measurement

Applicable to

ACV

DCV

ACI

DCI

2/4W

Hz/P

TEMP

Background

Maximum and Minimum measurement stores the highest

(maximum) or lowest (minimum) reading and shows it on
the 1

st

display when the 2nd key is pressed.

1. Activate
Max/Min

For Max measurement, press the

MX/MN key once.

MX/MN

For Min measurement, press the
MX/MN key twice.

MX/MN

MX/MN

2. Max (Min)
result is
activated

MAX

S

V

MAX

AUTO

AC

MIN (MAX)

Indicates Min (Max) measurement is
activated

1V

2nd display shows the Min (Max) range

View Max
(Min)value

Press the 2nd key to view the Max

(Min) value.

2ND

Max (Min)
measurement
appears

V

MAX

S

MAX

AUTO

AC

2nd display

Indicates that the Max (Min) value is
displayed on the 1st display

1st display

Shows the Max (Min)value at full scale

Deactivate
Max/Min
measurement

To cancel the Max/Min

measurement, press the MX/MN
key for 2 seconds, or simply activate

another measurement.

MX/MN

(hold for 2
seconds)
