GDM-8261A User Manual
86

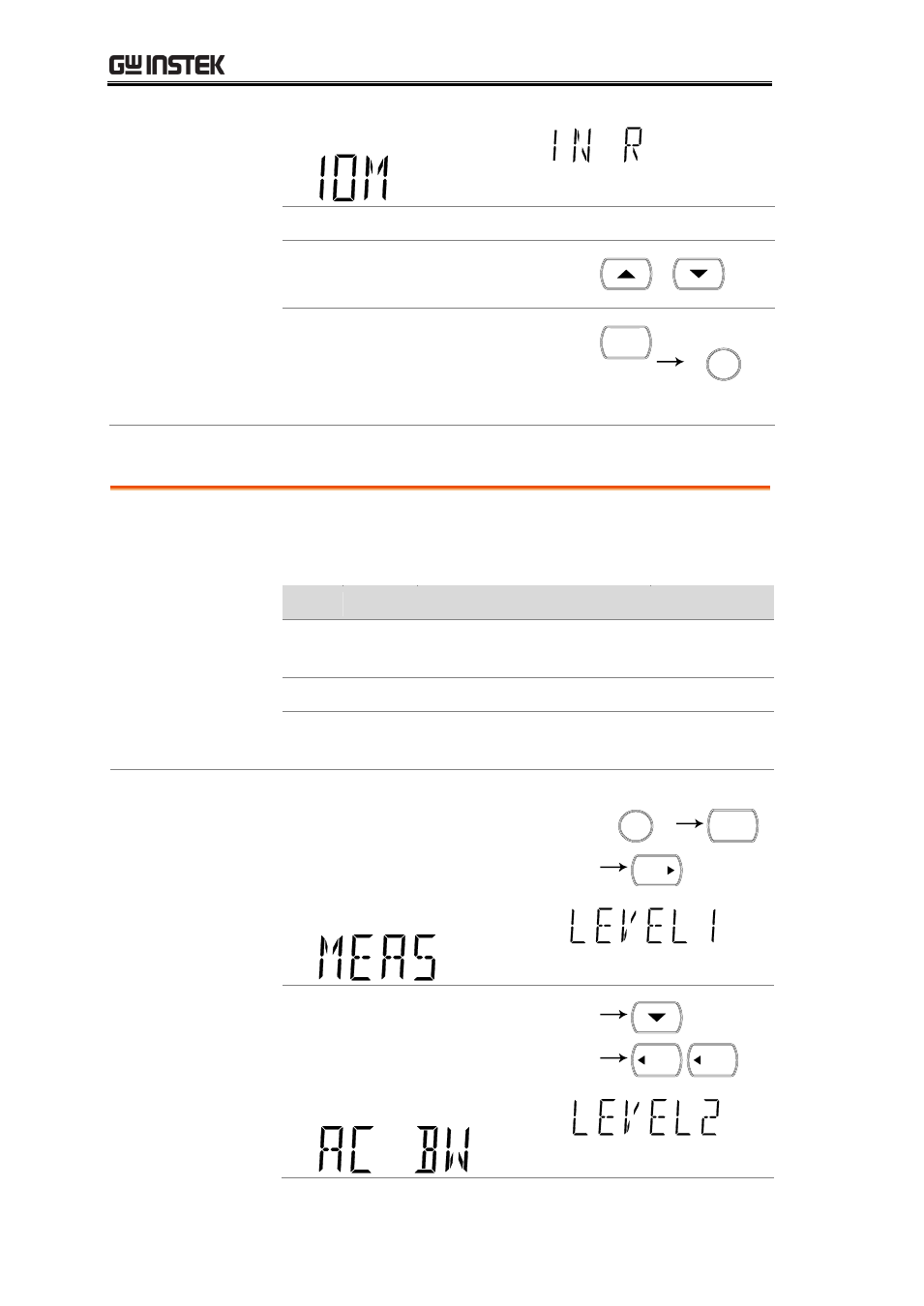

1st display Shows the input resistance setting
4. Select the setting using the
Up/Down keys.
5. Press the Enter key to confirm
your selection. Press the Exit
key to go back to the default
display.
AUTO
ENTER
/ EXIT SHIFT
AC Bandwidth Setting
Background Sets the AC Bandwidth (filter) setting for AC
measurements. The Slow, Medium, Fast (S, M, F) rate
settings are directly tied to the AC bandwidth settings.
Rate Digits Input Frequency Readings/s
S 6 ½ 3 Hz – 300 kHz 1.2
(sec/reading)
M 5 ½ 20 Hz – 300 kHz (default) 3.38
F 4 ½ 200 Hz – 300 kHz
30
Panel operation 1. Press the Shift key, the 2nd
(Menu) key followed by the
Right key. The MEAS menu
appears.
/ EXIT SHIFT
2ND
MENU
TRIG
2. Press the down key followed by
the left key twice. The AC
Bandwidth menu appears.
HOLD HOLD
