GDM-8261A User Manual
46
2. Edit reference
temperature Use the Left/Right key to move the
cursor, and use the Up/Down key to
change the value.
Default: 23.00
HOLD TRIG
Press the Enter key to confirm the
value, or the Exit key to cancel. The
display goes back to the previous
menu.
AUTO
ENTER (confirm)
/ EXIT SHIFT
(cancel)

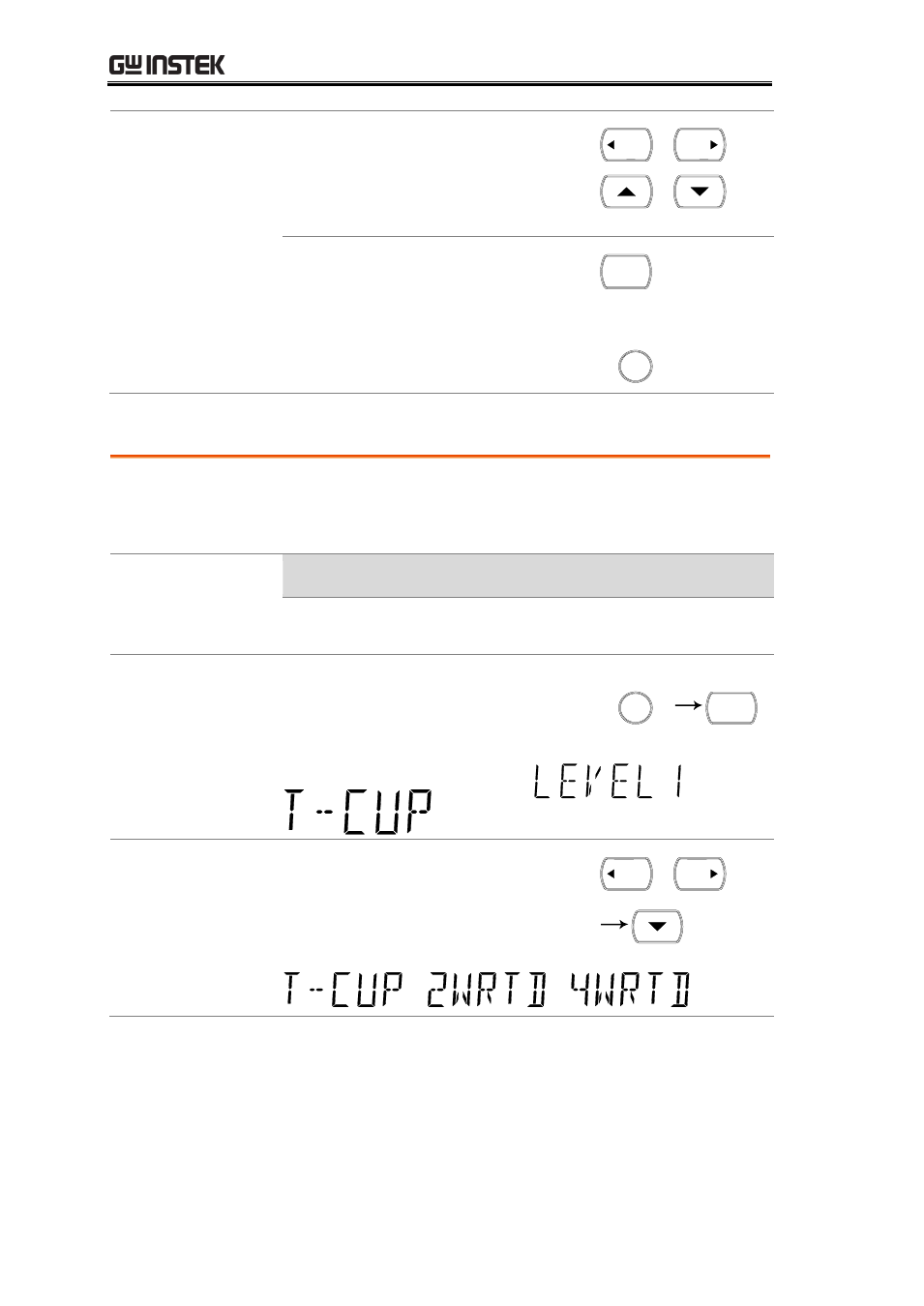

Select Temperature Sensor Type
Background The GDM-8261A supports a number of thermocouple
types as well as 2 or 4 wire RTD. It is important to
specify the type of temperature sensor used.
Parameter RTD type Range Resolution
All (based on
PT100) -200~600°C 0.001°C
1. Open sensor
selection menu Press the Shift key, then the TEMP
(Sensor) key. The sensor selection
menu appears on the display.
/ EXIT SHIFT
TEMP
SENSOR
2. Select sensor
type Press the Left and Right arrow keys
to highlight the 2WRTD or 4WRTD
sensor type. Press the down key to
go to the next menu level.
HOLD TRIG
 
