GDM-8261A User Manual
52
2nd
Measurement
item setting Press the 2nd key, then the target
item (example: ACV). The display
updates the measurement result.
(example: ACI + ACV)
2ND ACV
2ND
AUTO AC
V
A m
S AUTO AC

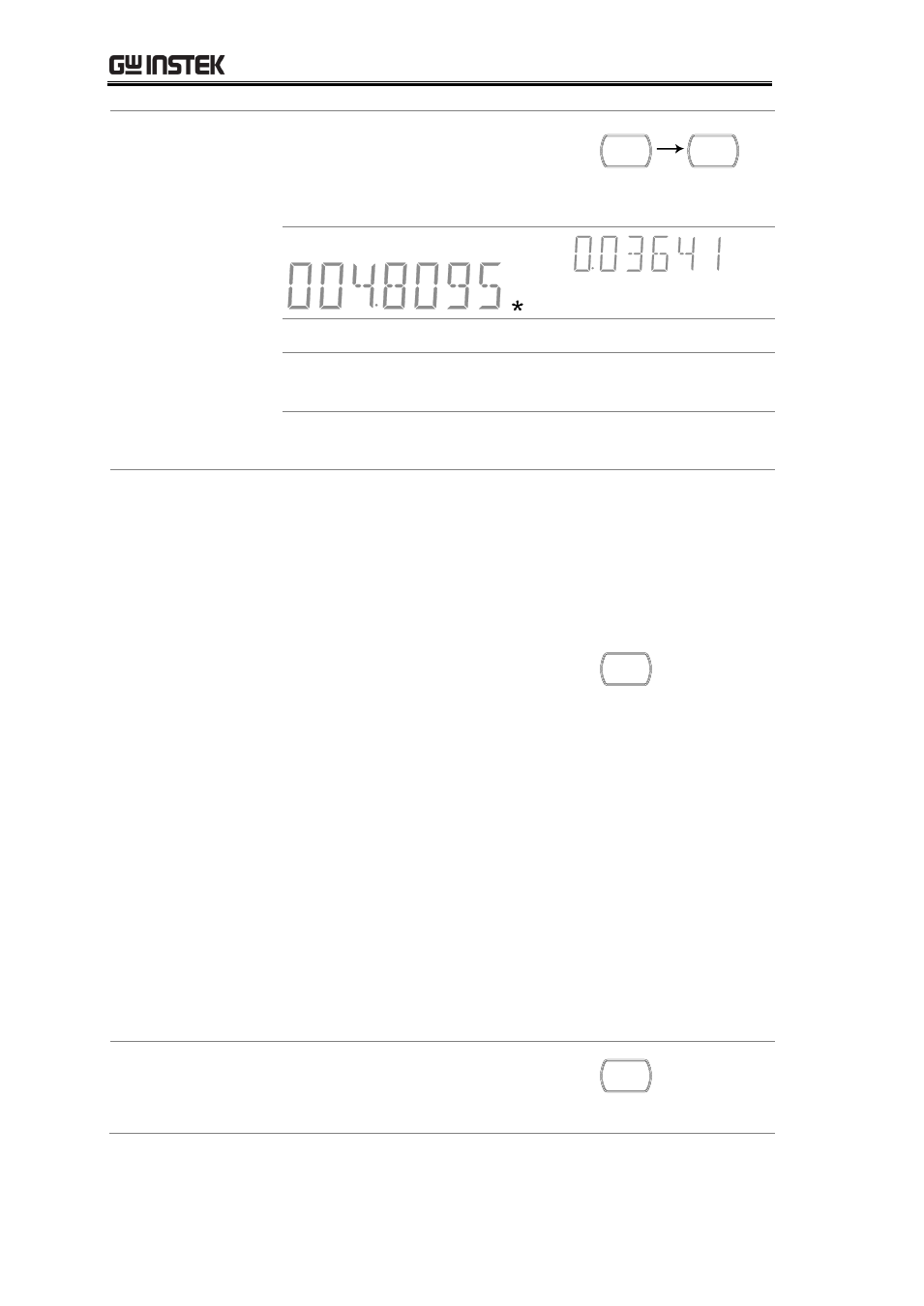

1st Display Shows the primary measurement result
2nd Display Shows the secondary measurement
result
2 ND Indicates that dual measurement is
active
Editing 1st or
2nd
measurement
item settings After the secondary measurement function has been
activated, the rate, range and measurement item can be
edited for either the primary or secondary display. Note
however, it is more practical to configure the first or
second measurement items before activating dual
measurement mode.
1. Select active
display Toggle whether the primary or
secondary display is the active
display by pressing the 2ND key:
Primary display: 2ND is not
visible on the display
Secondary display: 2ND is
visible on the display
Do not hold the 2ND key. This will turn
the dual measurement off.
2ND
(toggle
active display)
2. Edit active
display settings Edit the range, rate or measurement
item for the active display in the
same way as for single measurement
operation. See the Basic
Measurement chapter for details.
Page 23
Turn Off 2nd
Measurement To turn Off the 2nd measurement,
press and hold the 2nd key for more
than 1 second.
2ND
(hold
1 sec.)
