SCANNER (OPTIONAL)

107

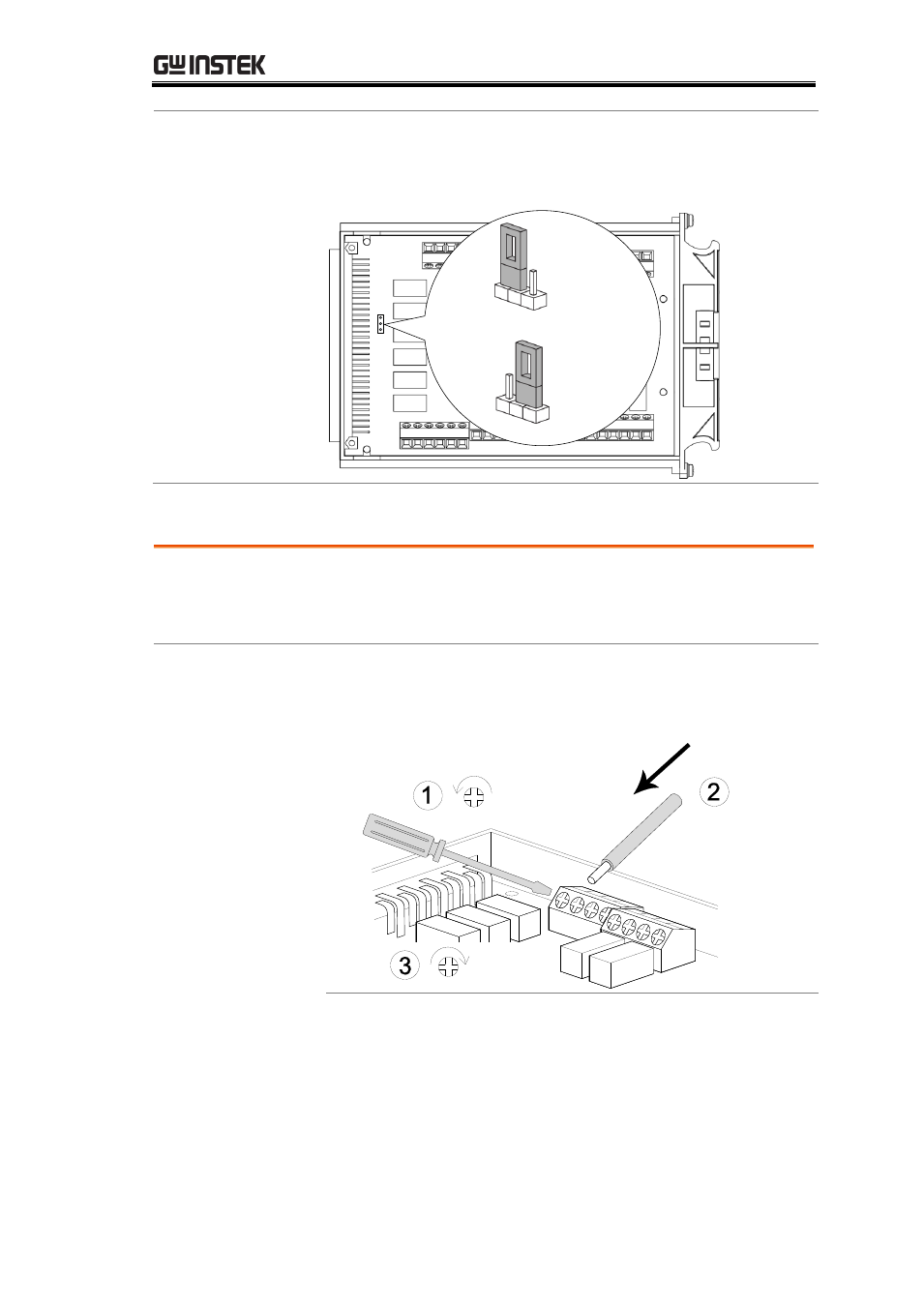

Enable scanner
(Jumper J9)

Set the jumper J9 on the rear side of the board

accordingly. Move the jumper up (pins 3-2) to disable the
scanner, and down (pins 2-1) to enable the scanner.

3
2
1

J9

3 2 1

3 2

1

Enabled

Disabled

J9

Connect Wires

Wire selection

Make sure the wires have at least the same voltage and
current capacity as the maximum ratings of the

measurement.

Connection

1. Turn the screw left (loose) using a screw driver and

insert the wire. Turn the screw right (tighten) and

secure the connection.

Tighten

Loosen

Insert
