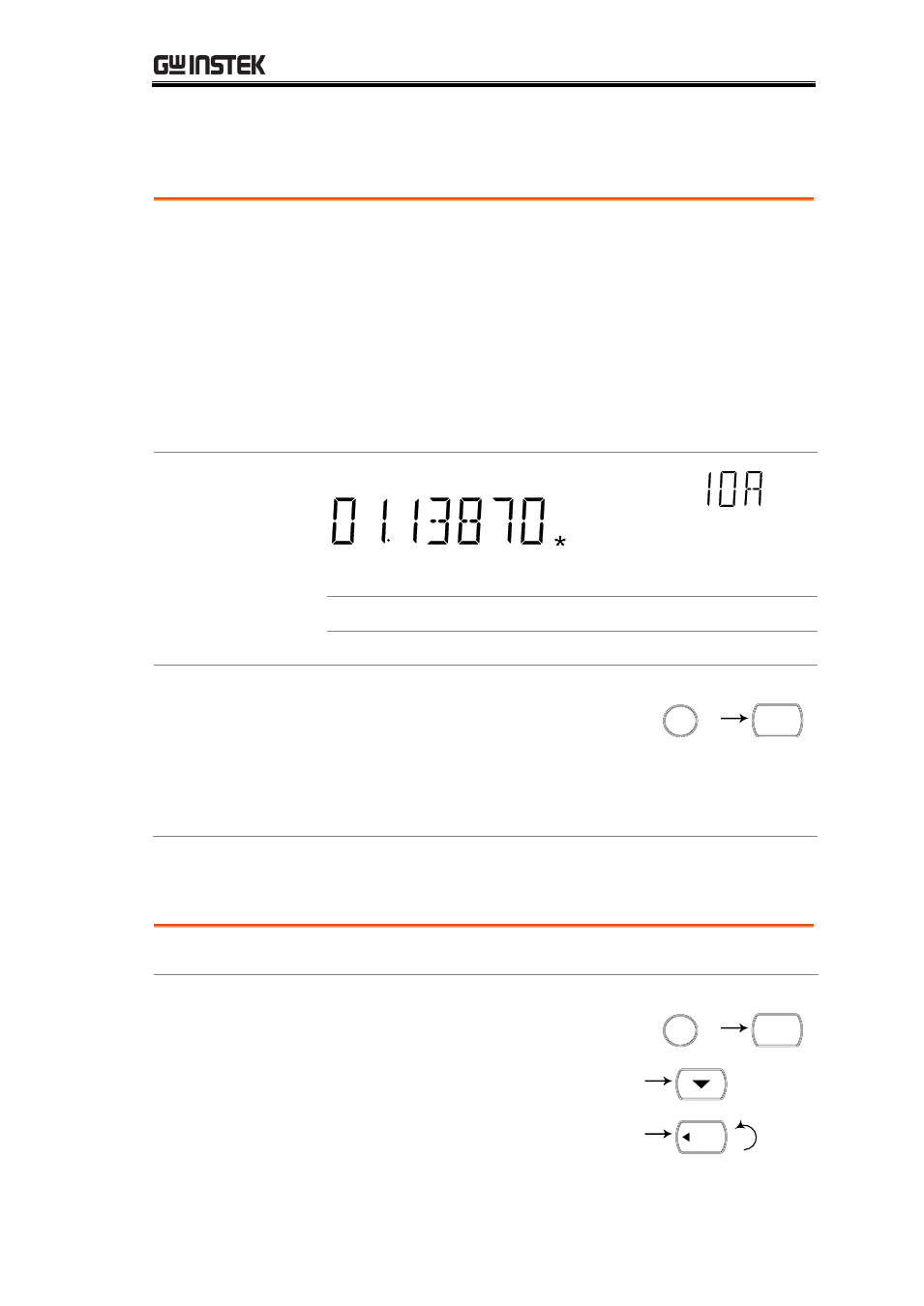

SYSTEM/DISPLAY CONFIGURATION

75

Refresh Rate Setting

Background

Refresh rate defines how frequently the GDM-8261A
captures and updates the measurement data. A faster

refresh rate yields a lower accuracy and resolution. Slower
refresh rates yield a higher accuracy and resolution.

Consider this trade-off when selecting the refresh rate.
The refresh rate settings are individually set for all

measurement modes except for ACV/ACI
measurements. ACV/ACI use the same refresh rate

settings.

Display/Range

A

S

AC

S

6 ½ digits

M

5 ½ digits

F

4 ½ digits

Refresh rate
selection

Press the Shift key followed by the
AUTO (Rate) key. The refresh rate

indicator switches to the next rate
setting.

/ EXIT

SHIFT

AUTO

RATE

Refresh Rate

S

M

F

S

View Serial Number

Background

View the serial number using the System menu.

Panel operation

1. Press the Shift key, the 2nd

(Menu) key, followed by the

down key. Then press the left
key repeatedly until the S/N

menu appears.

/ EXIT

SHIFT

2ND

MENU

HOLD
