3.6 Assigning Outputs
Now we are going to add the first of the two output patterns — turn off the first
output LED (MyOut1) and turn on the second output LED (MyOut2).
1. Click the Process Block tool on the toolbar, and then click on the Then
branch below your “rightON = TRUE” decision block. A new Process block
will be inserted.
2. Open the Process block’s Block Properties window, as described
previously.
3. To the right of the Command property, click the button. The Select
Process Command window will appear.

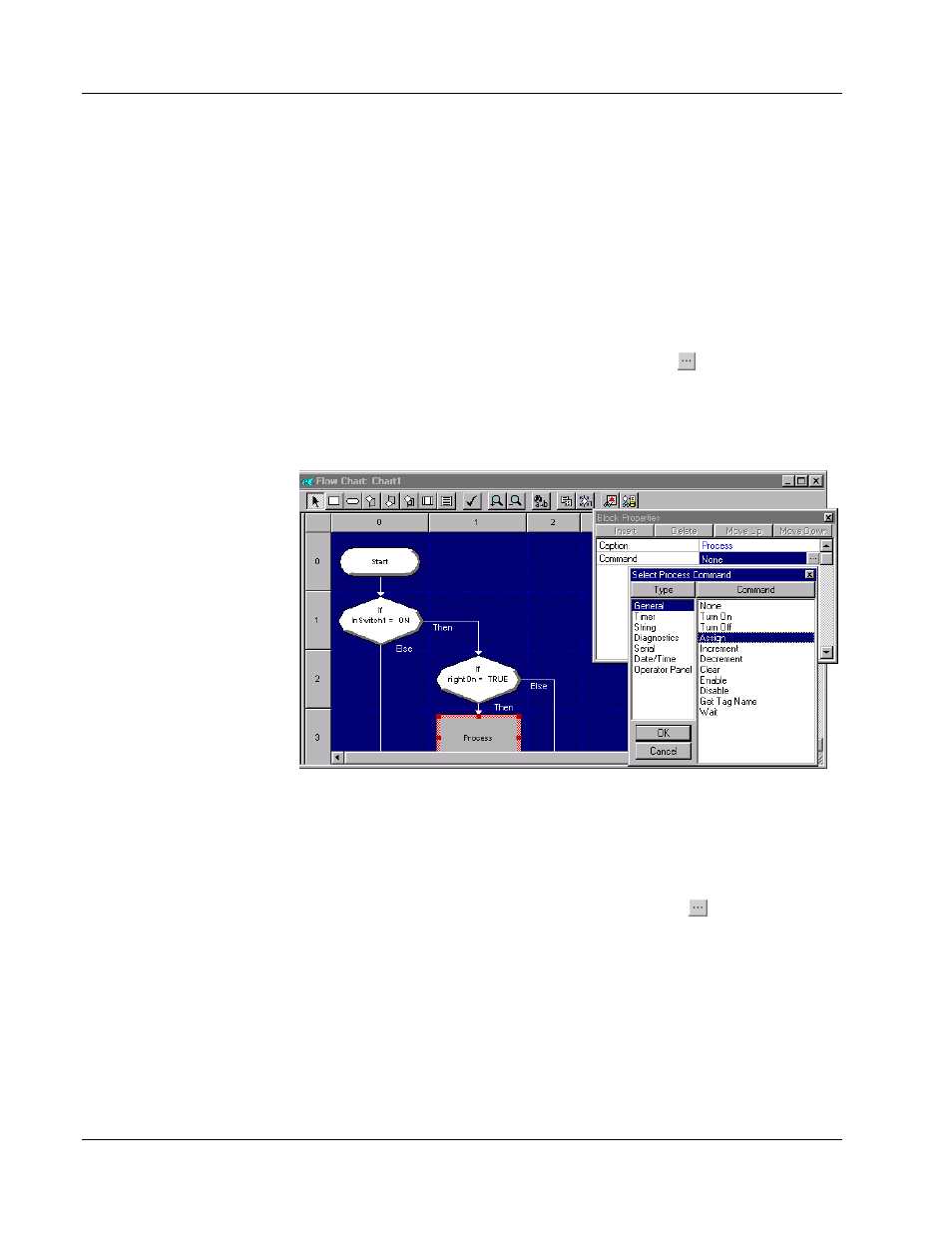

4. In the Type list, select General. A list of general commands will appear.
5. In the Command list, select Assign.
6. Click OK to close the Select Process Command window and enter the
Assign command in the Command property.
7. You will see that a Statement sub-property is added to the Command
property.
8. To the right of the Statement sub-property, click the button. The Build
Assignment window will appear.
9. Select the MyOut1 output tag, as described previously.
