Appendix A: OptiLogic Technical Specifications Pointe Controller User Guide
232

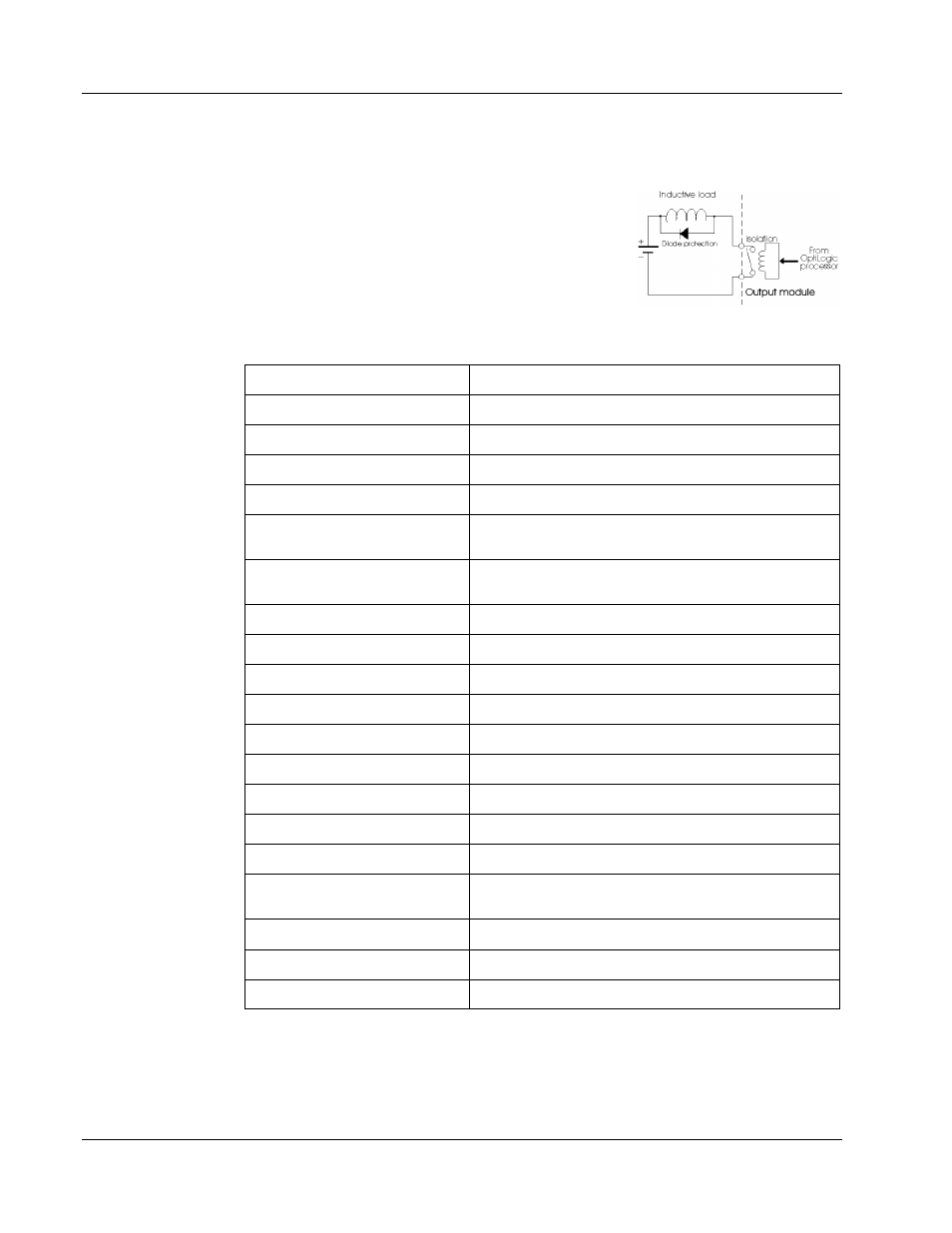

A.1 OL2104 Relay Output Module
The OL2104 Relay Output Module provides four (4)
optically isolated mechanical relay outputs that can
be used for switching a variety of AC and DC loads.
Individual LED indicators provide visual feedback of
output state.
Technical Specifications
Card Cage Power Required 250 mA
Output Type Mechanical relay
Outputs 4
Status Indicators Logic Side LED
Contact resistence 0.1 ohm (initial)
Contact voltage rating 0 - 60 VDC
0 - 120 VAC
Contact rating 2A (resistive) / point @24 VDC,
1A / point @120 VAC
Minimum load 10 mA
Contact type Form A (SPST)
Contact arrangement 4 isolated normally open contact relays
Mechanical life 10,000,000 operations per relay (at no load)
Electrical life 100,000 operations per relay (at full load)
Terminal Strip Plug In (removable)
Terminal Screws Slotted (0.1” blade max)
Max. terminal wire gauge 18 AWG (use copper conductors)
Terminal block torque 2.2 lb-in
Required Temp. rating of
field installed conductors 60°C / 75°C
Weight 1.6 oz (46 g)
Type 8
Subtype 1
