Appendix A: OptiLogic Technical Specifications
Pointe Controller User Guide
236

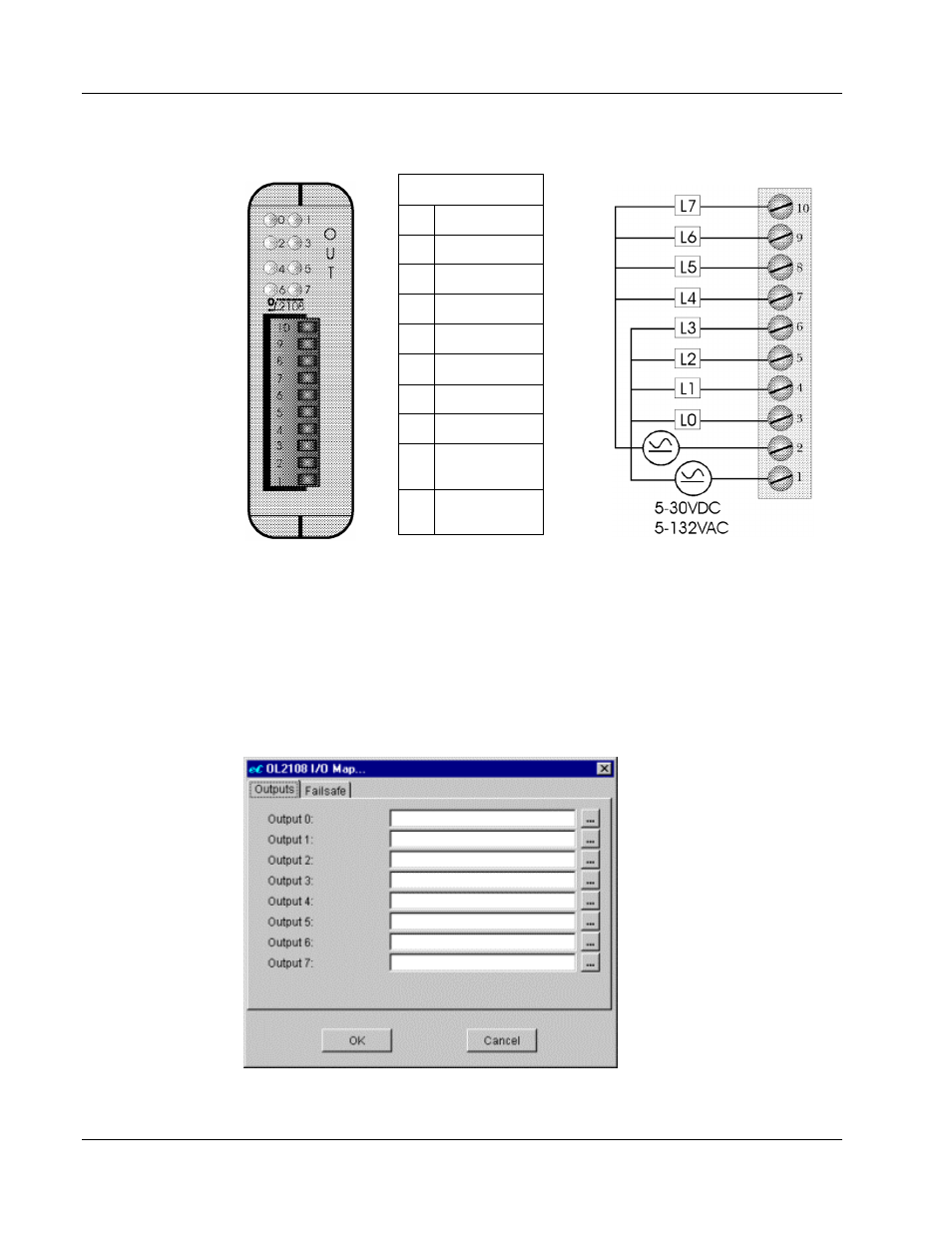

Connection Diagram
Terminal
10
Out 7
9
Out 6
8
Out 5
7
Out 4
6
Out 3
5
Out 2
4
Out 1
3
Ou1 0
2
Common
Out 4-7
1
Common
Out 0-3
A.2.1 OL2108 Configuration Options
The OL2108 module is configured through the Configure I/O menu command in
the PointeControl development framework. (For more information on Configure
I/O, see page 118.) Selecting an OL2108 module and clicking the I/O button opens
the OL2108 I/O Map dialog window…
Outputs tab
