Chapter 5: Developing Controller Programs Pointe Controller User Guide
160
PROPERTY WHAT YOU ENTER
Condition Type Type of Condition:
Expression – Build a conditional expression using the
Build Condition dialog.
Diag Fault Bit Test – Select an Input, Memory, or Output
tag and test to see if its
Diag Fault Bit is set or clear.
If the condition evaluates true, then the Do/On line is followed. If
the condition evaluates false, then the Done/Off line is followed.

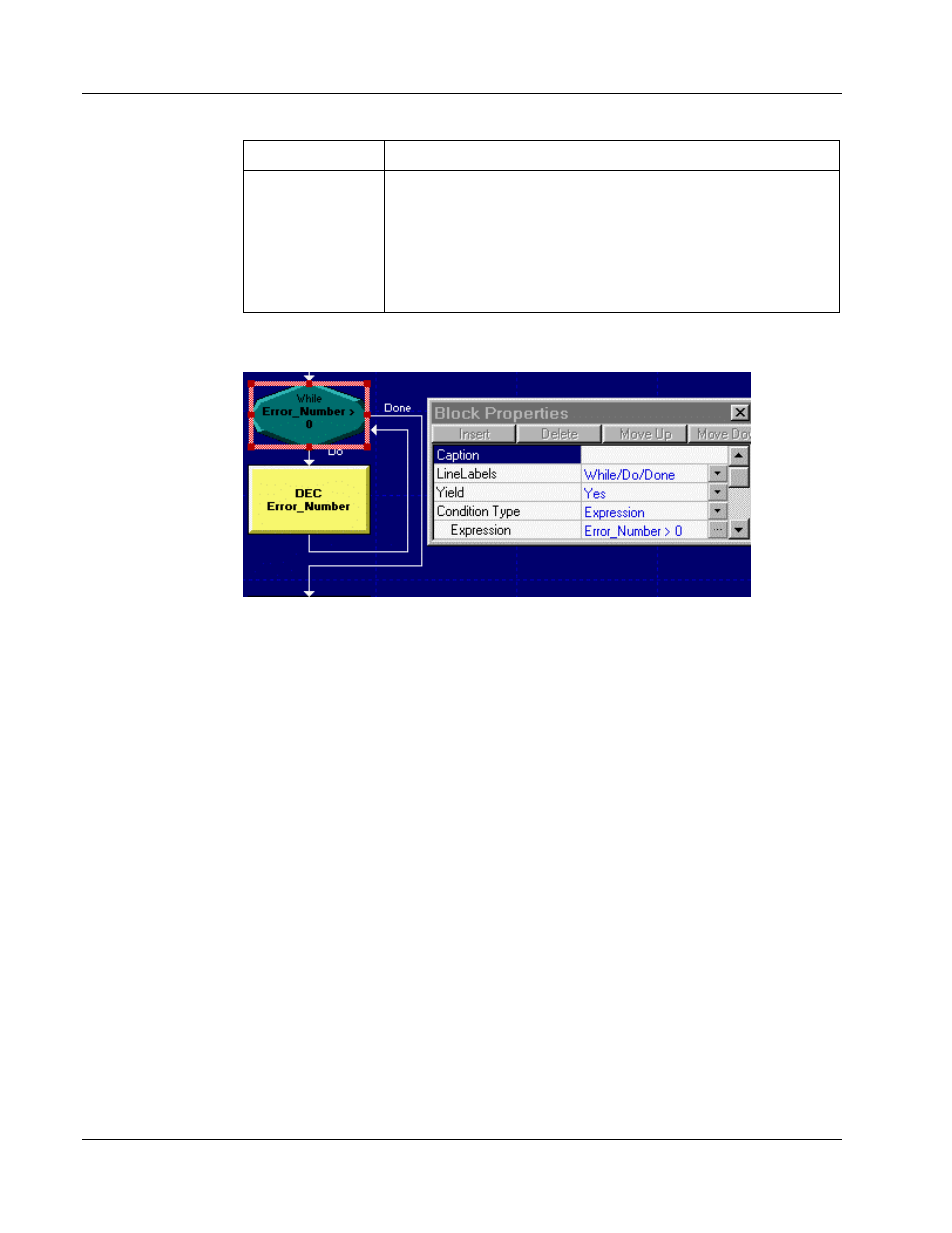

While/Do Loop Block Example
The decision block determines if Error_Number is greater than 0. While the
answer is yes, program flow yields to the next chart, returns to the flowline
labeled Do, and decrements the value of Error_Number before returning to the
decision block to check the value. If the value is greater than 0, flow continues to
the remainder of the current chart through the flowline labeled Done.
The LineLabels property specifies a While label that specifies the
condition, a Do label for the flowline from a condition of Error_Number
being greater than 0, and a Done label for the flowline a condition of
Error_Number being less than or equal to 0.
The Yield property specifies the program flow must continue to the next
chart while the condition is met and return to decrement and check the
value again until the condition is no longer met.
The Condition Type property is selected as Expression.
The next property defines the block’s tested expression. In this condition,
the tag, Error_Number, can be any number greater than 0.
