Appendix A: OptiLogic Technical Specifications Pointe Controller User Guide
240

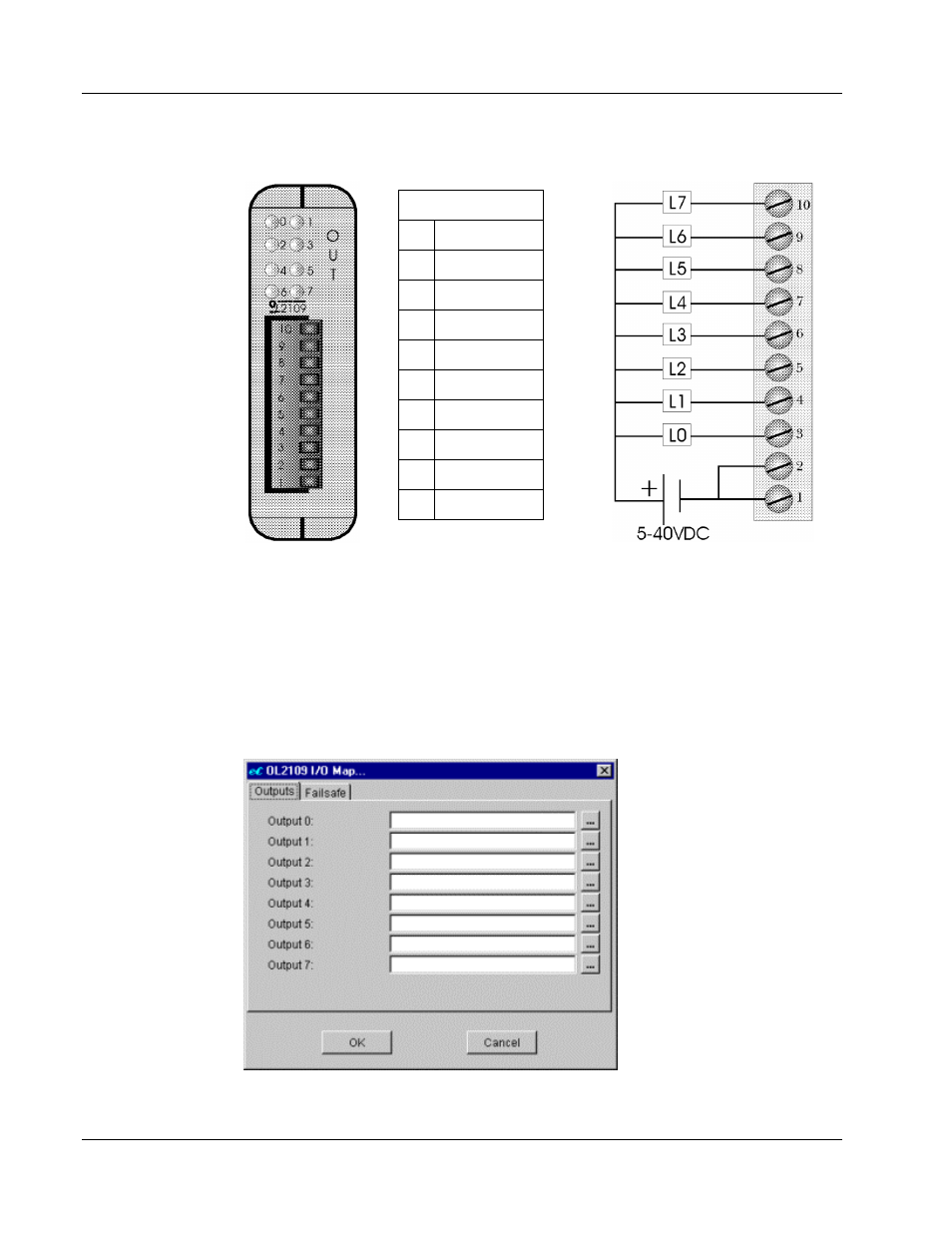

Connection Diagram
Terminal
10 Out 7
9 Out 6
8 Out 5
7 Out 4
6 Out 3
5 Out 2
4 Out 1
3 Ou1 0
2 Common
1 Common
A.3.1 OL2109 Configuration Options
The OL2109 module is configured through the Configure I/O menu command in
the PointeControl development framework. (For more information on Configure
I/O, see page 118.) Selecting an OL2109 module and clicking the I/O button opens
the OL2109 I/O Map dialog window…
Outputs tab
