Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
78 SierraFC M164 Protocol Analyzer User Manual
FICON[Link Control]‐Link Control Function
The FICON[Link Control] has an additional Link Control Function dropdown menu under
the Value pane on the right of the dialog as shown in the following figure.

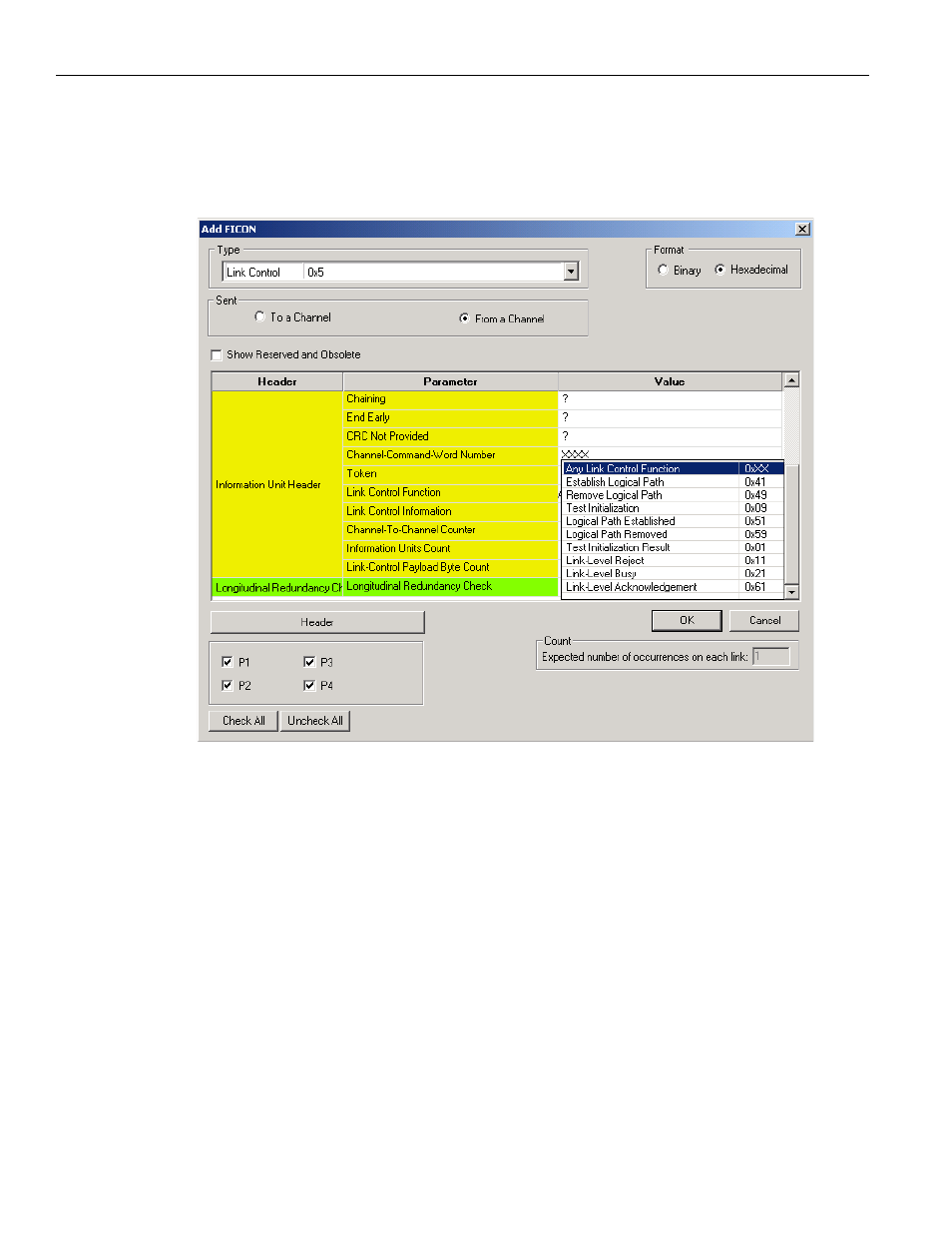

Figure 2.43: FICON[Link Control] - Link Control Function Dialog
To select Link Control Function click the dropdown list which has the following options:
 Any Link Control Function
 Establish Logical Path
 Remove Logical Path
 Test Initialization
 Logical Path Established
 Logical Path Removed
 Test Initialization Result
 Link‐Level Reject
 Link‐Level Busy
 Link‐Level Acknowledgement
