Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
138 SierraFC M164 Protocol Analyzer User Manual
Add VSAN‐FCAE‐1553 Status
Double‐click VSAN‐FCAE‐1553(Status) in the Patterns Library panel to open the VSAN‐
FCAE‐1553 Status dialog.

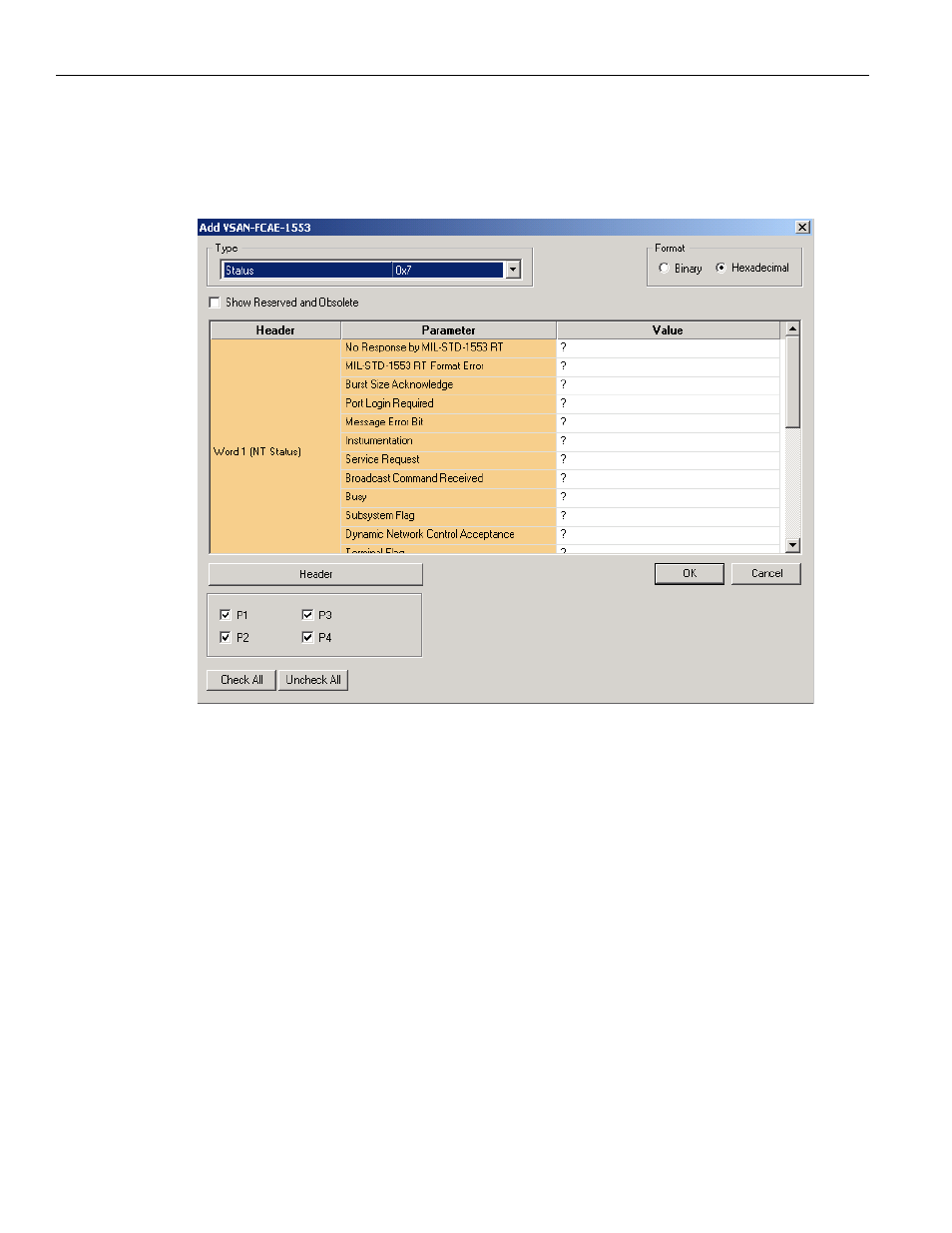

Figure 2.103: VSAN-FCAE-1553 (Status) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
