Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
FICON[Status]‐ Flag‐Field Code
The FICON[Status] has an additional Flag‐Field Code dropdown menu under the Value
pane on the right of the dialog as shown in the following figure.

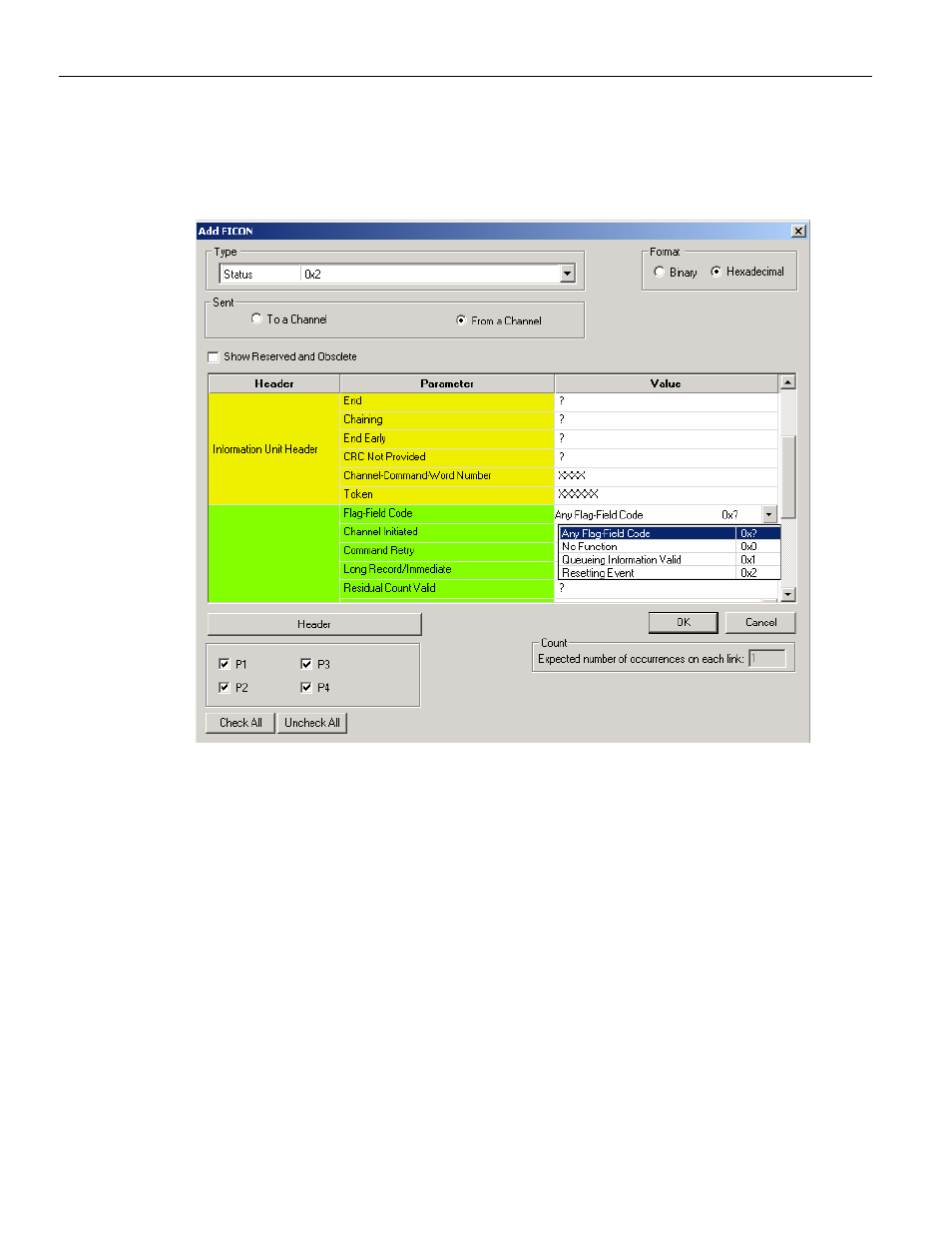

Figure 2.36: FICON[Status] - Any Flag-Field Code Dialog
To select Flag‐Field Code click the dropdown list which has the following options:
 Any Flag‐Field Code
 No Function
 Queueing Information Valid
 Resetting Event
