Vsan els patterns – Teledyne LeCroy SierraFC M164 User Manual User Manual
Page 110
Teledyne LeCroy
Easy Mode (Pre‐Defined Setups)
110
SierraFC M164 Protocol Analyzer User Manual
VSAN ELS Patterns
VSAN‐Extended Link Service ‐ Request
Double‐click VSAN‐Extended Link Service ‐ Request in the Pattern window to open the
Add VSAN‐Extended Link Service ‐ Request Pattern dialog.

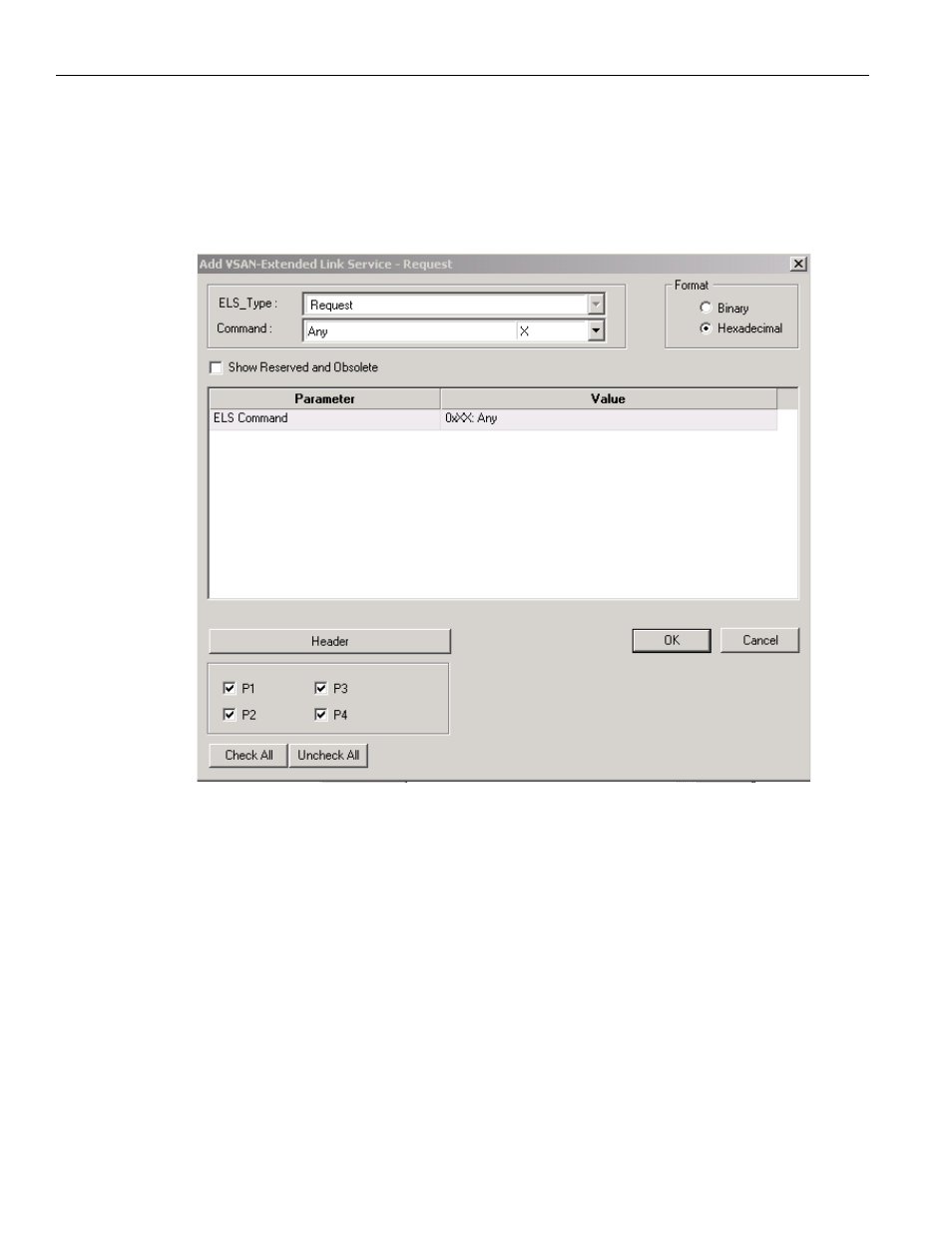

Figure 2.75: VSAN-Extended Link Service - Request Dialog
The format can be Binary or Hexadecimal.
To select an ELS_Type and Command, click the dropdown list.
