SierraFC M164 Protocol Analyzer User Manual 175
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Speed
The default speed is Autospeed. You can also select the port speed from the 
drop‐down list: 1.0 Gbps, 2.0 Gbps, 4.0 Gbps, 8.0 Gbps or 16 Gbps.
Disable Descrambling
If checked, causes the Analyzer to assume that no traffic is scrambled. By default, the
Analyzer assumes the scrambling state of the devices under test.
Protocol Error Detection
Click the Set Protocol Error Detection button to open the Protocol Error Detection dialog.

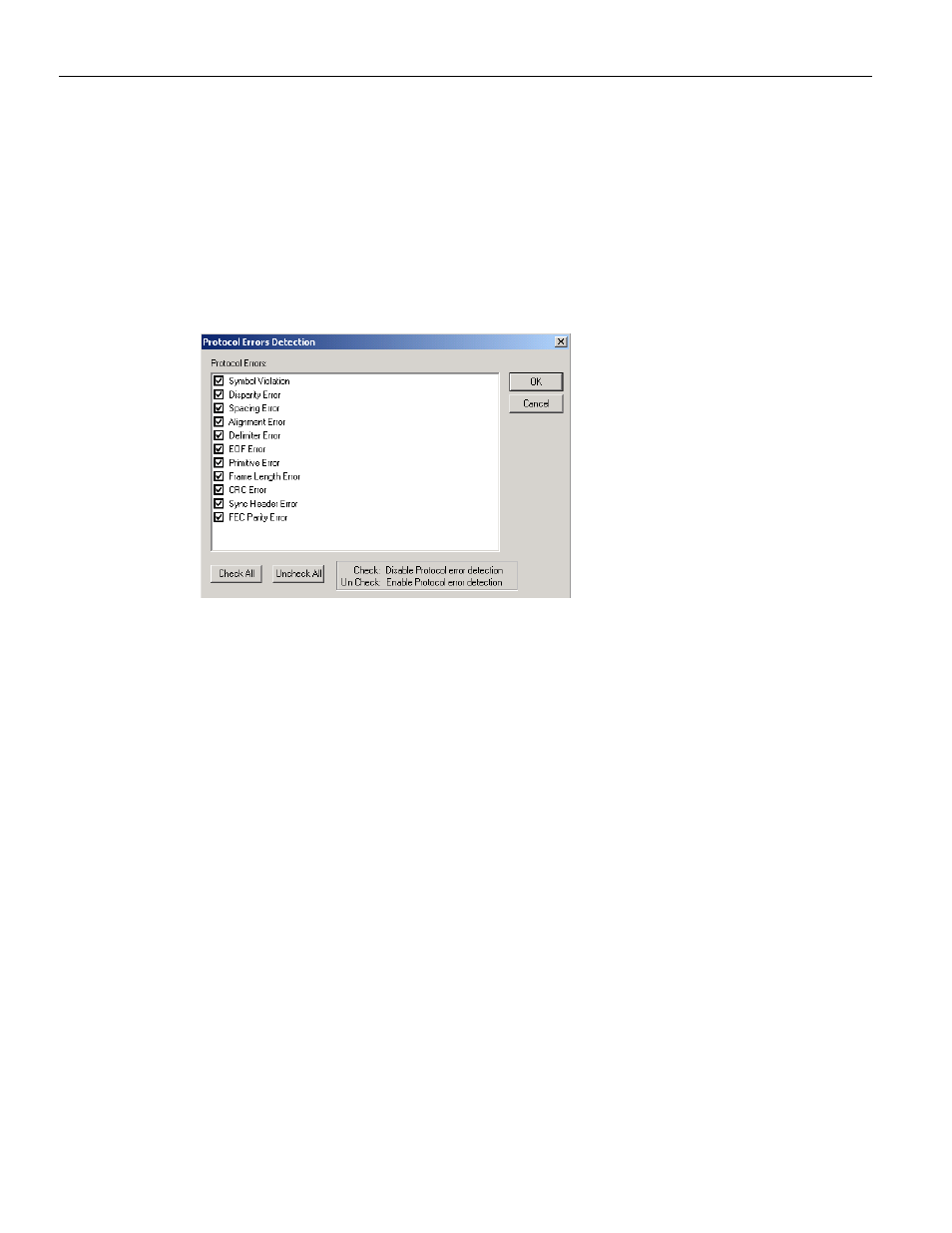

Figure 2.131: Protocol Errors Dialog
Uncheck specific Protocol Errors in order to not display them in the sample view and
Statistical Report.
